DELLOK SeamlessTreated U Bend Tube Bundle Heat Exchanger A179 Tubing
Features Gallery Product Description Request A Quote
Features
Specifications
Tube Type:: Seamless
Unit Leg Length: Min 1 Meter, Max. 16500 Mm
Fin Tube Type: U Tube
Process: Cold Bend
Type: Fin Tube
Nearest Port: Shanghai Port
High Light:

Heat Exchanger A179 Tubing

,

A179 U Tube Bundle

,

A179 Carbon Seamless Steel Pipe

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: U Tube
Payment & Shipping Terms
Packaging Details: Solid fumigated wooden box with tube location racks inside.
Delivery Time: Ex-work within 1 month on receipt of order.
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

SeamlessTreated U Tube Bundle Heat Exchanger A179 Tubing



Quick Details
Condition: New Brand Name: YONGHUI
Place of Origin: China Marketing Type: New Production 2020
Warranty: 1 Year After Warranty Service: Online support
Machinery Test Report: Provided Certification: CE. ISO,EN10204. 3.1 Cert.
After-sales Services: Video technical support, Online support Packing: Steel frame with plywoods or seaworthy wooden box.
Local Service Location: None Showroom Location: None

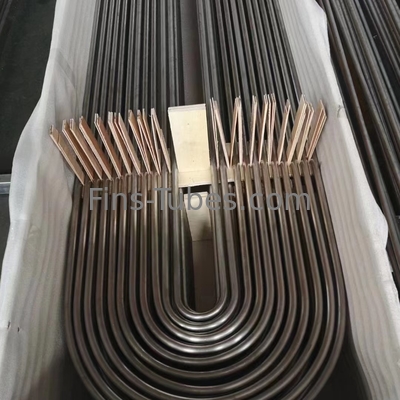

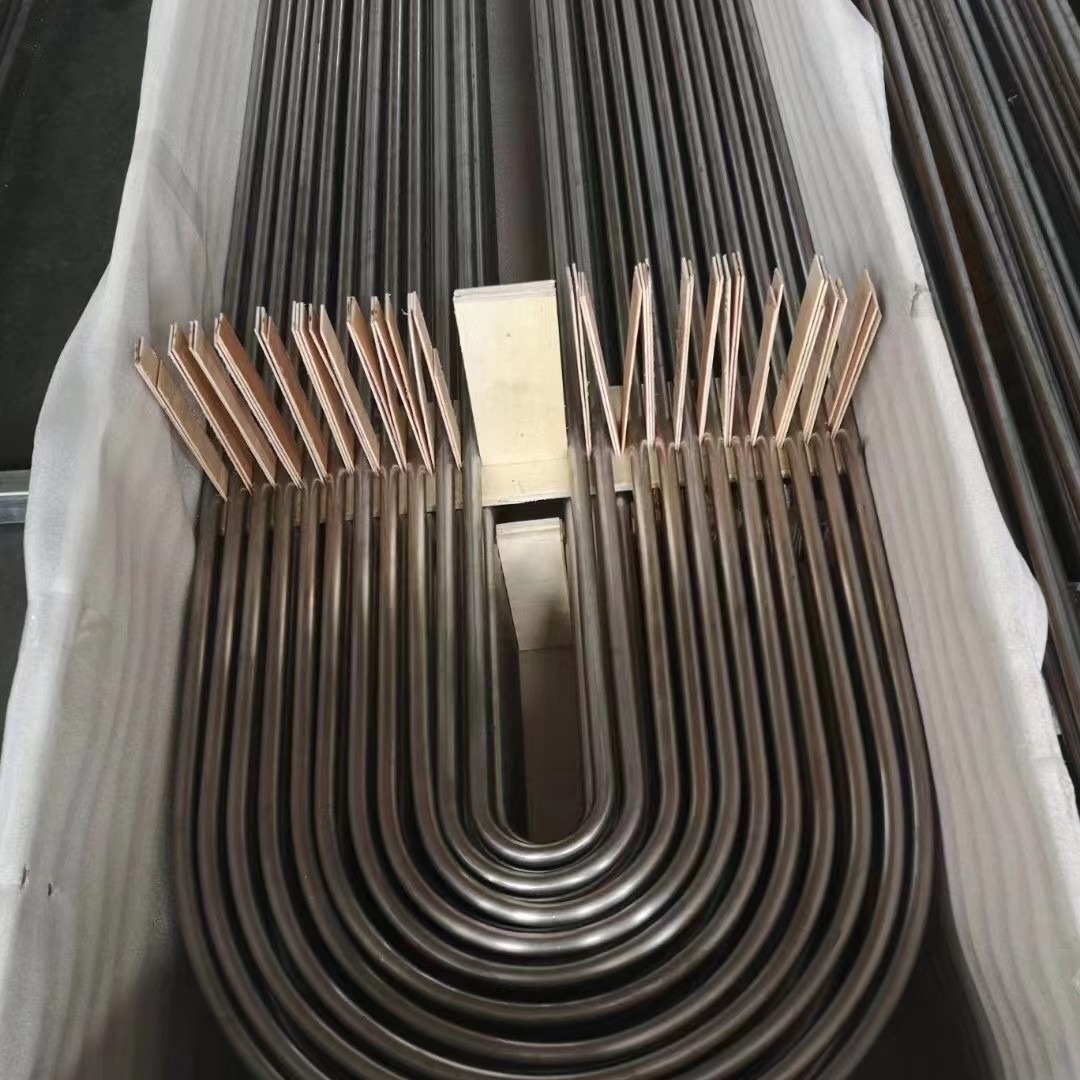

A179 seamless carbon steel heat treated heat exchanger U Tube bundles

More Standard and Grade:

ASTM A210/ASME SA210 A1

ASTM A213/ASME T11 T22

A106B/A53B/A179/A192/A200/A333/A335/500
ASME SA106B/A53B/A192/A200/A333/A335/500
BS3059 BS6323-4 BS3602-1
EN10297-1 EN10305-1 EN10216-1 EN10216-2 EN10210-1
DIN1629 DIN1630 DIN 17175 DIN2391 DIN17204 DIN2448
JIS G3452(SGP) JIS G3461JIS G3462 JIS G3454JIS G3455 JIS G3444



Both Ends:

Plain ends or bevel ends



Straight Tubes Maximum Length:

(Before Bending): 35000 mm.



Heat Treatment

Stress Relieved After U-Bending (Bending Area Plus 300MM For Each Leg).



Hydrostatic Test After U Bending

Maximum Test Pressure 600 Bar, Holding time: 10 Sec.

Medium: Dematerialized Water.

Compressed Air Cleaning After Hydro-Test.



Packaging

In Strong Transport-Worthy Pre-fumigated wooden boxes of corresponding dimensions for

each tube Length, Radius, Diameter, According To PO requirements as well as wrapped In polyethylene

films With soft plastic caps on both end of Tube.



General Quality Tests

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
  •



Our Service:
1. Inquiry-Professional quotation, or send inquiry item more details, we start contact more details
2. Confirm the price, lead time, payment term etc
3. Our sales send the Proforma Invoice with our seal, or you order online to us
4. Customer make the payment for deposit and send us Bank receipt
5. Initial Production Stage-Inform the clients that we have got the payment, and will make the samples according to your request, send you photos or samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time
6. Middle Production-send photos to show the production line which you can see you products. Confirm the estimated delivery time again.
7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party inspection
8. Clients make payment for balance and ship goods, inform the tracking number and check the status for clients
9. Order can be say "finish" when you receive the goods and satisfy with them
10. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better
