DELLOK CE Fin 36ES Carbon Steel SA106B Longitudinal Finned Tube

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK  CE Fin 36ES Carbon Steel SA106B Longitudinal Finned Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fin Tube
Materials Of Tubes:: Carbon Steel,Stainless Steel
Fins Materials:: Carbon Steel, Stainless Steel
Bare Tube Size:: OD 19.05mm-OD60mm
Fin Number:: 2/ 4/ 8/ 16/ 18/ 32/ 36 Piece Per Row
Number Of Fins:: 16/20/24/32/40
High Light:

SA106B Longitudinal Finned Tube

,

EN10204 Carbon Steel Finned Tubes

,

36ES Longitudinal Fin Tubes

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: Longitudinal Tube
Payment & Shipping Terms
Packaging Details: Steel frame case sealed by plywood with each tube end capped.
Delivery Time: Ex-work within 7 weeks on receipt of order.
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

CE Fin 36ES Carbon Steel SA106B Longitudinal Finned Tube



SA106B Longitudinal Tube , Fin 36ES carbon steel , 19mm fin height , 0.889mm fin thickness



Quick Detail

Materials Materials of tubes: Carbon Steel(A106/A179/A192/A210)
Stainless Steel(TP304/TP304L ,TP316/TP316L)
Alloy Steel (T11/T22)Fins Materials: Carbon Steel,
Stainless Steel(TP304/TP304L,TP316/TP316L, TP409/TP410)
Details

Bare tube size: OD 19.05mm-OD60mm,

Fin number: 2/ 4/ 8/ 16/ 18/ 32/ 36 piece per row,

Number of fins: 16/20/24/32/40



Description:

The longitudinal I/L or U shape fins are welded onto the core plain tubes by resistance welding or welding with filler matal (Spot welded).The longitudinal finned tubes are wildely used in following fields. Like :Chemical- ,petrochemical-,oil-, and power indudtry, Heat exchanges, Fired heaters,  Gas coolers and heaters, Tank heaters.

1. U bends tubes with longitudinal fins and fintube coils are avaiable for requesting.

2. Longitudinal fins types: one-piece shape, standard U bent shape, cut & twist, perforated type etc…

3. The fin channels are welded to the tubes in opposite pairs. Fin height, number of fins and fin thickness can be specified.

4. Fins can be applied to either OD tube or NB pipe.



Competitive Advantage:

1. Longer working life than others ordinary welding helical fin tubes.

2. Much safer and energy saving.

3. Increase the heat transfer rates for viscous liquids.

4. Perforated fin type used whenever drainage of liquid from fin channels become a problem.

5. Longitudinal fin tubes are widely used in horizontal heat exchangers.

Our Service:

1. Inquiry-Professional quotation, or send inquiry item more details

2. Confirm the price, lead time, payment term etc

3. Proforma Invoice send or online

4. Make the samples according to your request, send you photos or samples, arrange the production

5. Send the production line photos Confirm the estimated delivery time again.

6. End Production-Mass production products photos and samples will send to you for approval.

7. Inform the tracking number and check the status for clients

8. Order can be say "finish" when you receive the goods and satisfy with them

9. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better

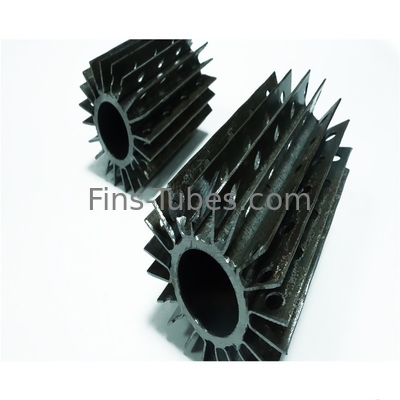

DELLOK  CE Fin 36ES Carbon Steel SA106B Longitudinal Finned Tube 0

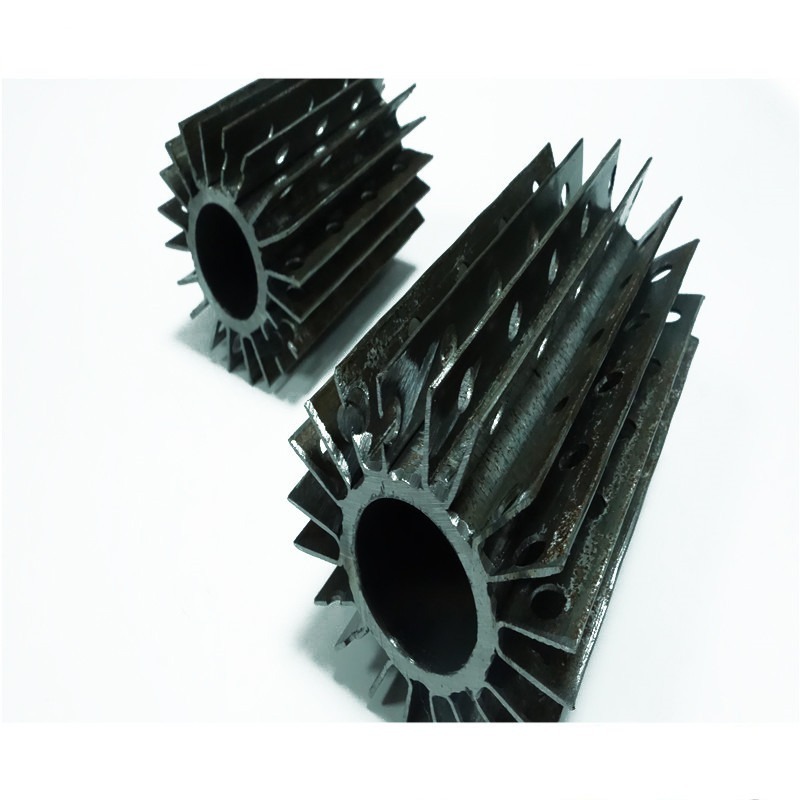

DELLOK  CE Fin 36ES Carbon Steel SA106B Longitudinal Finned Tube 1

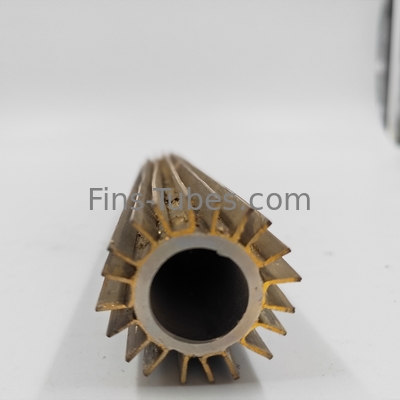

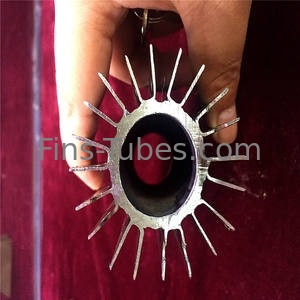

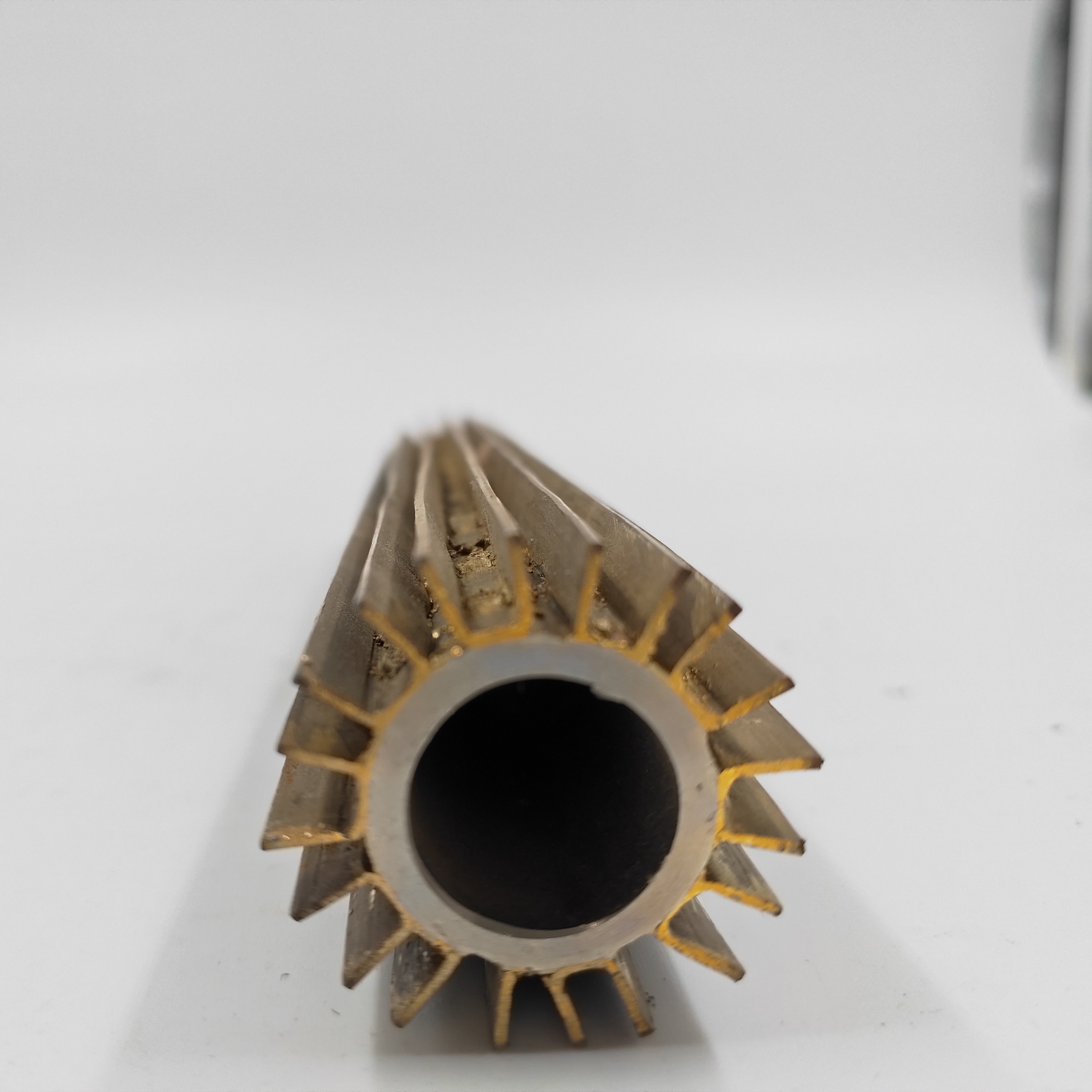

DELLOK  CE Fin 36ES Carbon Steel SA106B Longitudinal Finned Tube 2DELLOK  CE Fin 36ES Carbon Steel SA106B Longitudinal Finned Tube 3DELLOK  CE Fin 36ES Carbon Steel SA106B Longitudinal Finned Tube 4
