DELLOK Carbon Stainless Steel Aluminium Extruded Tube Finning Machine

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK  Carbon Stainless Steel Aluminium Extruded Tube Finning Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Origin: China
Payments: L/C, T/T
Company Type: Importer & Exporter
Package: Plywood Box (export Packing)
Fin Pitch: 12FPI ,13FPI
Name: Embedded Fin Tubes Fining Machine
High Light:

415V Tube Finning Machine

,

13FPI Fin Tube Machine

,

12FPI Tube Finning Machine

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: Reliance-1518
Payment & Shipping Terms
Packaging Details: Solid fumigated wooden box loaded into 20 feet Container.
Delivery Time: Ex-work within 2 months on receipt of deposits.
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

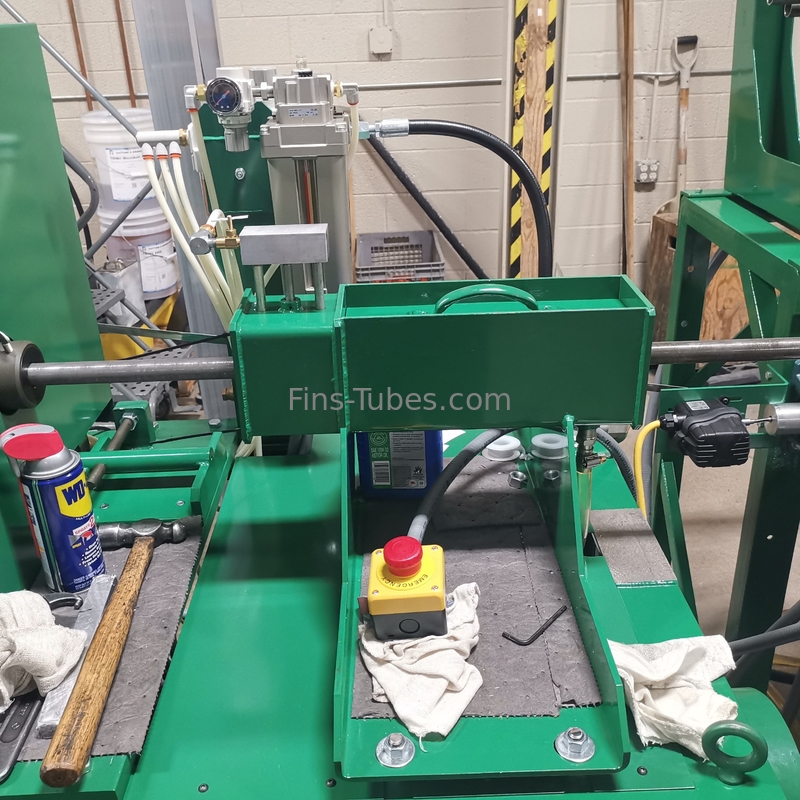

Carbon Stainless Steel Aluminium Extruded Tube Finning Machine



G-Fin machine, tubes outer diameter 3/4" and 1", carbon and stainless steel, aluminium fins



General description of G-Type finning machine.

1. Embedded Machine Mode No: Reliance-1518

2. Embedded Machine Power Output: 415V/50HZ (Chinese Standard).

3. The motors of export embedded finning machine are supplied upon clients’ requests.



One complete set of Embedded Finning Machine consisting following:

1. Finning head

2. PLC controlled power box

3. Without Finning input racks and output racks (We will offer design drawings before delivery)

5. Technical know-how(Operation Manual in English)



Service After Sales

1. Technical support

2. Operation training at your site or in Reliance's Plant or both

3. Information on maximun production criteria

4. Reference charts

5. Specifications for tube and fin strips.



Name:

Embedded Fin Tubes Fining Machine

Tube Material:

Carbon Steel,Stainless Steel, Alloy Steel,copper Etc...

Fin Material:

Aluminum, Copper,Steel

Fin Type:

Embedded Fins/ G Fins

Tube OD:

15.88mm(Min.)

Tube Length:

No Limit

Fin Height:

16mm(Max.)

Fin Pitch:

2mm(Min)

Fin Thickness:

0.28mm~0.55mm

Voltage:

415V / 50HZ (as Per Client's Requirement)

Package:

Plywood Box (export Packing)

Training:

Supplier's Site OPERATION Training



Competitive Advantage:

1. We have more than 10,000 square meters workshop, including 10 finning machines, daily extrusion capacity up to 3,000 meters.

2. The finning machines of Integral Low Fin Tubes are designed and assembled by ourselves and we can offer you finning machines and all accessories etc...

3. The Integral Low Fins are rolled out of the tube surface to increase the tubes external surface area, without affecting any others dimension.

4. Low Fins are very useful for tight condensers and exhibits high efficiency of heat transfer.

5. Economical solutions of heat exchange problems of media with different heat conduction abilities or different current condition

6. High chemical-, thermal- and mechanical resistance, suitable for rough operation conditions.



DELLOK  Carbon Stainless Steel Aluminium Extruded Tube Finning Machine 0
