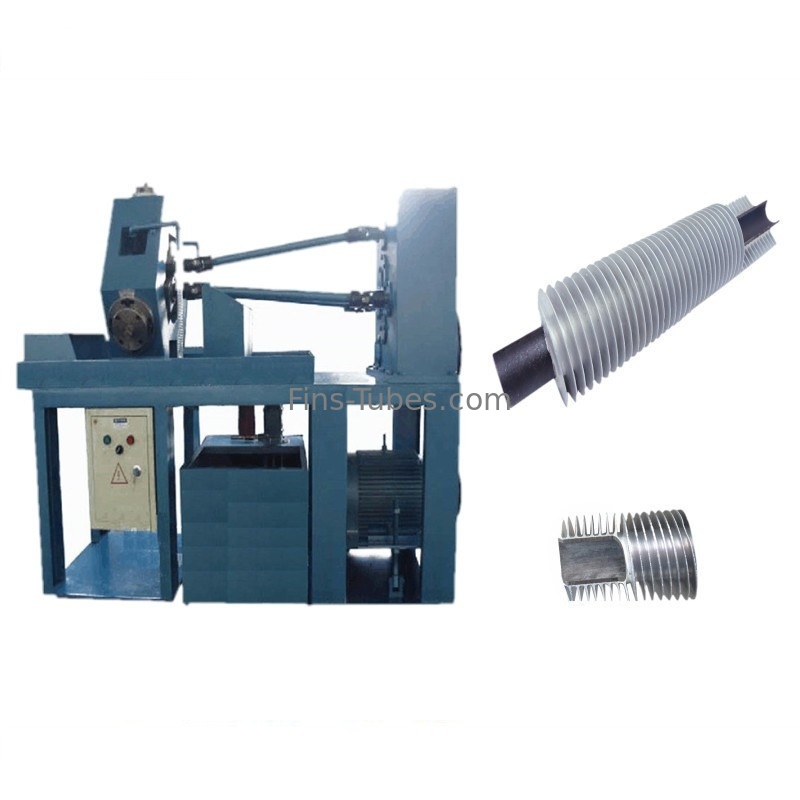

Helicoidal Groove Cooling Brass Brone 380V Tube Finning Machine
General description of G-Type finning machine.
1. Embedded Machine Mode No: Reliance-1518(Our internal design No.)
2. Embedded Machine Power Output: 380V/50HZ (Chinese Standard).
3. The motors of export embedded finning machine are supplied upon clients’ requests.
One complete set of Embedded Finning Machine consisting following:
1. Finning head
2. PLC controlled power box
3. Without Finning input &output racks ( We will offer the design drawings after order)
5. Technical know-how(Operation Manual in English)
Quick Details
|
Name |
Embedded Fin Tube Machine |
Brand/Mode No |
Reliance/ Mode No:1518 |
|
Tube Material |
Seamless steel tubes(CS,SS,AS) Welded steel tubes(CS,SS) Copper/Brass/Brone |
Fins Material |
Alu.1060-O, Alu. 1060-H14 Alu 1100-O, Alu. 1050 Copper |
|
Dimensions Data are in Inches and specification upon your requests. |
|||
|
Tube OD |
Fin Height |
Fin Thickness |
Fins per Pitch(Density) |
|
5/8 |
3/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
3/4 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
1 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
1 1/4 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
1 1/2 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
Please email us for more information. |
|||
Competitive Advantage:
1. We have more than 10,000 square meters workshop, including 10 finning machines, daily extrusion capacity up to 3,000 meters.
2. The finning machines of Integral Low Fin Tubes are designed and assembled by ourselves and we can offer you finning machines and all accessories etc...
3. The Integral Low Fins are rolled out of the tube surface to increase the tubes external surface area, without affecting any others dimension.
4. Low Fins are very useful for tight condensers and exhibits high efficiency of heat transfer.
5. Economical solutions of heat exchange problems of media with different heat conduction abilities or different current condition
6. High chemical-, thermal- and mechanical resistance, suitable for rough operation conditions.
