Name: DELLOK Brown U Shaped Strips Carbon Steel A106 Longitudinal Finned Tube
Brand: DELLOK
SKU: Longitudinal Finned Tube
Rating: 4.5 (179 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Bare Tube Size:: OD 19.05mm-OD60mm

Fin Number:: 2/ 4/ 8/ 16/ 18/ 32/ 36 Piece Per Row

Number Of Fins:: 16/20/24/32/40

Fins Materials:: Carbon Steel, Stainless Steel

Materials Of Tubes:: Carbon Steel, Stainless Steel

Fin Type: Plain Strips , , Twist

Highlight:

A106 Longitudinal Finned Tube

A106 Carbon Steel Tubing

OD60mm Longitudinal Finned Tubes

Basic Infomation

Place of Origin: China

Brand Name: DELLOK

Certification: CE. ISO,EN10204. 3.1 Cert.

Model Number: Longitudinal Finned Tube

Payment & Shipping Terms

Packaging Details: (1) Steel frame case sealed by plywoods with each end capped; (2)Solid fumigated wooden box with each end capped.

Delivery Time: Ex-work within 7 weeks on recepit of order.

Payment Terms: L/C, T/T Contact us for details

Supply Ability: 60000 meters month

Gallery

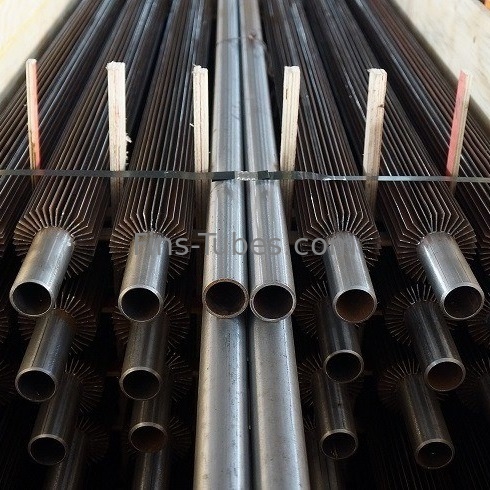

DELLOK Brown U Shaped Strips Carbon Steel A106 Longitudinal Finned Tube

Product Description

Brown U Shaped Strips Carbon Steel A106 Longitudinal Finned Tube

Description:

Manufacturing process: The longitudinal I/L or U shape fins are welded onto the core plain tubes by resistance welding or welding with filler metal (Spot welded).

1. U bends tubes with longitudinal fins and fin tube coils are available for requesting.

2. Longitudinal fins types: one-piece shape, standard U bent shape, cut & twist, perforated type etc…

3. The fin channels are welded to the tubes in opposite pairs. Fin height, number of fins and fin thickness can be specified.

4. Fins can be applied to either OD tube or NB pipe.

Applications:

The longitudinal finned tubes are widely used in following fields.

1. Chemical- ,petrochemical-,oil-, and power industry

2. Heat exchanges

3. Fired heaters

4. Gas coolers and heaters

5. Tank heaters.

Competitive Advantage:

1. Longer working life than others ordinary welding helical fin tubes.

2. Much safer and energy saving.

3. Increase the heat transfer rates for viscous liquids.

4. Perforated fin type used whenever drainage of liquid from fin channels become a problem.

5. Longitudinal fin tubes are widely used in horizontal heat exchangers.

Quick Details
Materials of tubes:	Carbon Steel (A106/A179/A192/A210)
Fins Materials:	Carbon Steel,Stainless Steel(TP304/TP304L,TP316/TP316L, TP409/TP410)
Bare tube size:	OD 19.05mm-OD60mm
Fin number:	2/ 4/ 8/ 16/ 18/ 32/ 36 piece per row
Number of fins:	16/20/24/32/40
Condition:	New
Place of Origin:	China
Brand Name:	YONGHUI
Marketing Type:	New Production 2020
Warranty:	1 Year
After Warranty Service:	Online support
Certification:	CE. ISO,EN10204. 3.1 Cert.
Machinery Test Report:	Provided
After-sales Services:	Video technical support, Online support
Local Service Location:	None
Showroom Location:	None
