Usage: construction / building materials steel pipe, low pressure liquid/ water/ gas/ oil/ line pipe,
structure steel pipe, scaffolding pipe, fence post steel pipe, fire sprinkler steel pipe, greenhouse pipe
DN |
OD |
ASTM A53 GRA/B |
BS1387 EN10255 |
||||
OUTSIDE DIAMETER |
SCH10S |
STD SCH40 |
LIGHT |
MEDIUN |
HEAVY |
||
MM |
INCH |
MM |
MM |
MM |
MM |
MM |
MM |
15 |
1/2’’ |
21.3 |
2.11 |
2.77 |
2 |
2.6 |
|
20 |
3/4’’ |
26.7 |
2.11 |
2.87 |
2.3 |
2.6 |
|
25 |
1’’ |
33.4 |
2.77 |
3.38 |
2.6 |
3.2 |
3.2 |
32 |
1-1/4’’ |
42.2 |
2.77 |
3.56 |
2.6 |
3.2 |
4 |
40 |
1-1/2’’ |
48.3 |
2.77 |
3.68 |
2.9 |
3.2 |
4 |
50 |
2’’ |
60.3 |
2.77 |
3.91 |
2.9 |
3.6 |
4 |
65 |
2-1/2’’ |
73 |
3.05 |
5.16 |
3.2 |
3.6 |
4.5 |
80 |
3’’ |
88.9 |
3.05 |
5.49 |
3.2 |
4 |
4.5 |
100 |
4’’ |
114.3 |
3.05 |
6.02 |
3.6 |
4.5 |
5 |
125 |
5’’ |
141.3 |
3.4 |
6.55 |
|
5 |
5.4 |
150 |
6’’ |
168.3 |
3.4 |
7.11 |
|
5 |
5.4 |
200 |
8’’ |
219.1 |
3.76 |
8.18 |
|
|
5.4 |

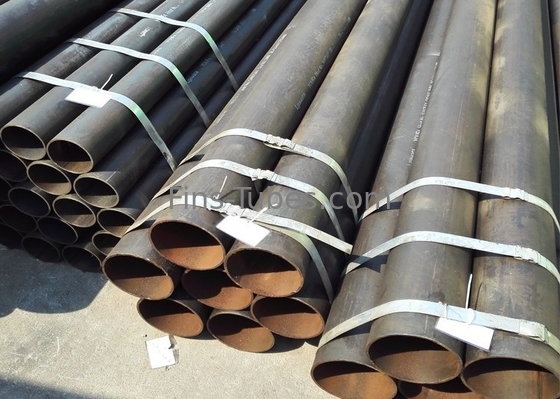

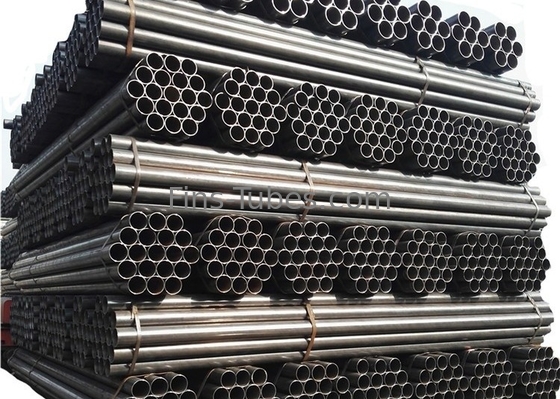

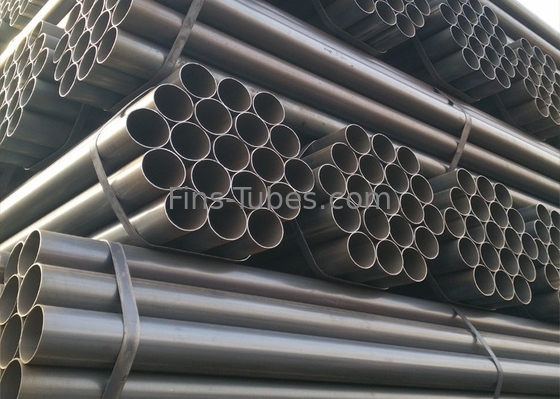

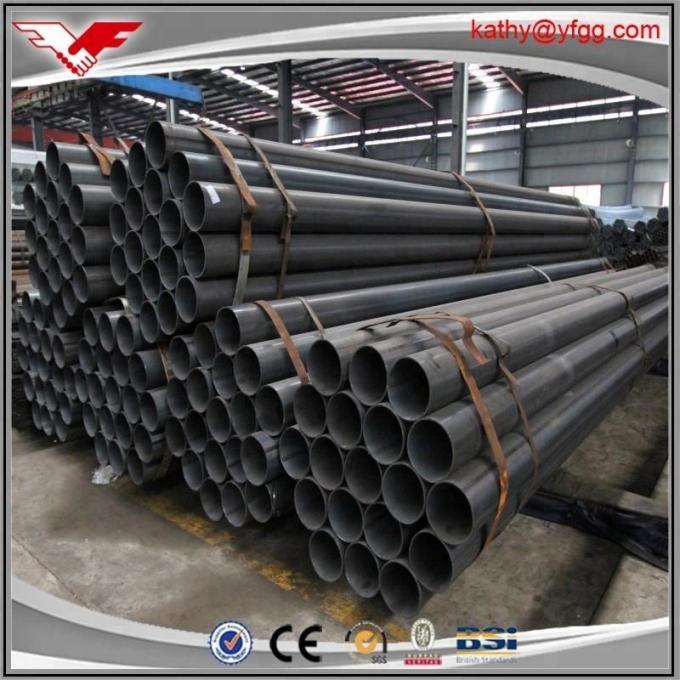

1. OD 219mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles
2. above OD 219mm in bulk or according to custom opinion

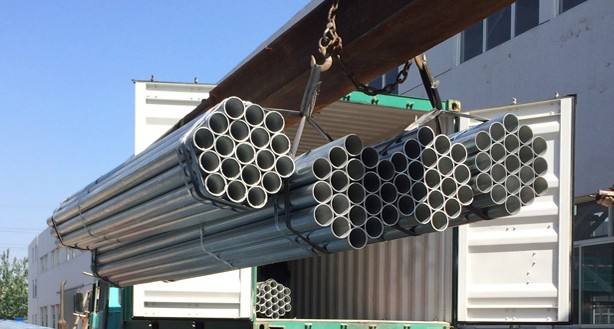

3. 25 tons/container and 5 tons/size for a trial order;
4. For 20" container the max length is 5.8m;
5. For 40" container the max length is 11.8m.
