DELLOK Copper Nickel 90/10 SB111 C70600-061 Low Fin Tube

1 Piece
MOQ
$10 - 1000 /Piece/Pieces
Price
DELLOK  Copper Nickel 90/10 SB111 C70600-061 Low Fin Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Heat Exchanger/Condenser/Evaporator/Air Cooler
Fin Height: 2.0mm-20.0mm
Fin Pitch: 2.0mm-8.0mm
Fin Thickness: 0.1mm-1.0mm
Fin Type: Plain/Louver/Perforated/Serrated
Material: Aluminum/Copper/Stainless Steel
Packaging: Wooden Case/Pallet/Carton
Processing Method: Extrusion/Rolling/Welding
Surface Treatment: Pickling/Sand Blasting/Polishing/Anodizing
Tube Diameter: 6mm-219mm
Tube Length: 100mm-6000mm
Tube Material: Carbon Steel/Stainless Steel/Copper/Aluminum
Tube Wall Thickness: 0.5mm-10mm
High Light:

Pellet Machine Die

,

Pellet Machine Roller

,

Pellet Ring Die

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Extruded Fin Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Product Description






DELLOK Copper Nickel 90/10 SB111 C70600-061 Low Fin Tube





About Us



DELLOK (YONGHUI RADIATING PIPE MANUFACTURING CO.,LTD.) was established in 2002, which is located in Jiangsu, China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above. Quality is the theme of eternal pursuit of winner -Production workshop- Meticulous works, standardized management system and systematic quality assurance are Dellok(YONGHUI)'s best commitment to quality. In Dellok(YONGHUI), the quality control is not only the detection of the final process, but throughout the entire production process. We implement a set of quality control and assurance systems. Each batch of pipes is sampled and tested, and records are kept as a quality guarantee for the final product.

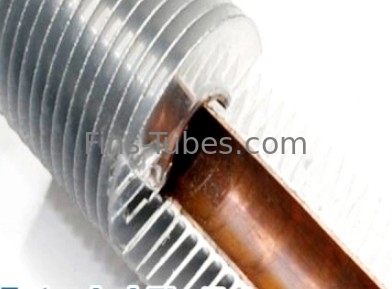

Product name:Copper Aluminum Composite Extruded Fin Tube


Product model: AJX1000Z11030

Link description: The product pictures displayed on the page are for reference only. The specific product model, size, specification, material and other technical information need to be customized according to your needs.


Extruded Finned Tube Advantage:
1. Optimized inner to outer surface ratio
2. High heat exchange rate
3. Enhanced structure due to the roll forming process
4. Flexible as straight tube or bent or coiled heat exchangers
5. Low heat resistance between fins and tube
6. Strong resistance to shock and thermal expansion and contraction
7. Cost and energy saving due to long service life and high exchange rate


Extruded Fin Tubes "double-wall" construction makes them extremely durable and heat-efficient. In addition, our extruded fin tubes are designed to prevent corrosion between the fins and tube, unlike fins embedded in the exterior wall of the tube. Used properly, our tubes are entirely suitable for steam coils.
Extruded fin tubes are manufactured by a rotary extrusion process in order to obtain integral fin tubes. We manufacture them by inserting a lining in an aluminum extrusion. The extrusion is radially crushed on the lining, and the excess material is pushed into the shape of spiral fins. The extrusion process solidifies the fins and prevents the galvanic corrosion that would occur if there were two metal alloys exposed to air, as is the case with other types of fins. Compared to other similar products, our fins do not break, nor do they uncoil, and the lining does not come loose, thereby maintaining the Heat Exchanger's thermal performance.

Product Categories : Extruded Finned Tube










Extruded finned tube features:



The finned tube provide by us is Extruded Type, which is different from the ones through HF Welding and Wrapping method. The fins are obtained by roll forming the outer surface of a soft seamless plain tube. The technology simply squeezes the wall thickness transforming into straight fins on the tube. So the fin and the tube are integrated and inseparable, which avoids the heat resistance between fin and tube, and optimizes heat exchange efficiency. Based on this structure, the Extruded type can survive more severe working conditions than other finned tubes. Also it, on the other hand, shows several unique features such as enhanced physical structure, resistance to vibration, anti-corrosion ability, and long service life, etc.



Extruded Finned Tube



Under this technology, there are two major types of finned tubes available with us, Single metal tubes and Bimetallic tubes. The former uses Copper, Aluminum, and Copper Nickel alone. The later has a core tube on the inside made of harder material. In this case, the outer tube is rolled onto the core tube in order to provide for a tight bond and good thermal contact between the two tubes.



Extruded Aluminum Tubing



Customized finned tube is available. The specification table is followed below. If required, the fin tube can be made into various forms after soft annealing process. They can be used for cooling and heating in a large scale of conditions. For example, coils in water heater, oil cooler in large machines, heat transfer part in boiler and heat recovering system, air-conditioning and refrigeration industry as condenser part or evaporator part, etc.



Aluminum Extruded Tubing



The material for our fin tube covers Copper(C10200, C12000, C12200), Copper Nickel(C70600), Aluminum(1060), Aluminum alloy, Aluminum-Steel(bimetallic), Aluminum-Stainless Steel(bimetallic), Aluminum-Copper(bimetallic), Aluminum-Copper Nickel(bimetallic), Copper-Copper Nickel(bimetallic).



Extruded Fin Tubes








Advantage:



1. Optimized inner to outer surface ratio

2. High heat exchange rate

3. Enhanced structure due to the roll forming process

4. Flexible as straight tube or bent or coiled heat exchangers

5. Low heat resistance between fins and tube

6. Strong resistance to shock and thermal expansion and contraction

7. Cost and energy saving due to long service life and high exchange rate




Extruded Finned Tube Specifications:



Extruded Fin Tubes








Product Description:

The fin tubes available with us covers Integrated Finned Tube of Copper (C10200, C12000, C12200),Cupronickel (C70600), Aluminum (1060) and Aluminum Alloy (AISI6063), Bimetallic Finned Tube such as Copper - Aluminum, Copper Alloy - Aluminum, Steel – Aluminum, Stainless Steel – Aluminum,Laser Welded Fin Tube using Stainless Steel and Titanium.
We have a wide and comprehensive range of products, and we can produce all the relevant types of products in the market.

As shown in the figure below:










Product Packaging



We can package the products according to the customer's requirements to ensure the safe arrival of the products in all kinds of transportation scenarios. If you have special requirements on packaging, please contact us.

DELLOK  Copper Nickel 90/10 SB111 C70600-061 Low Fin Tube 5








FAQ



1. What Does Fin Tube Mean?

A fin tube is a tube that has small fins around the outside surface. These fins act as a filter and a mechanism to transfer heat from the material inside the tube to the outside space or vice versa. Fin tubes are used in applications that require a transfer of heat from a hot fluid to a colder fluid through the tube's wall. The rate at which such heat transfer occurs depends on three factors:

The temperature difference between the two fluids.

The heat transfer coefficient between each of the fluids and the tube wall.

The surface area to which the fluid is exposed.



2. Where is finned tube heat exchanger used?

Finned tube heat exchangers generally use air to cool or heat fluids such as air, water, oil or gas, or they can be used to capture or recover waste heat. These heat exchangers can used in a broad range of industries including oil & gas, power generation, marine and HVAC&R.



3. What is extruded fin tube?

Extruded finned tubes are bimetallic tubes whose outer aluminium surface is finned by cold plastic deformation. There are two major types of finned tubes available with us, single metal tubes (also called mono metallic fin tube) and Bimetallic tube (composite extruded fin tube) .
