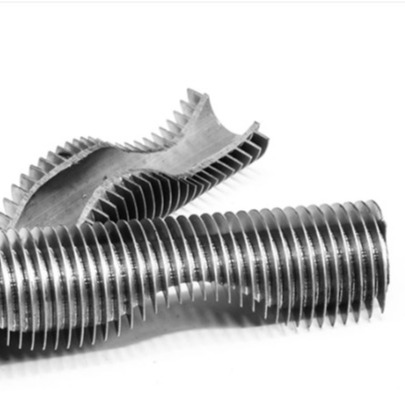

DELLOK Aluminum Extruded Fin Radiator Fin Tube

1 meter
MOQ
$10 ≥1 Piece/Pieces
Price
DELLOK  Aluminum Extruded Fin Radiator Fin Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Raw Material :: X46cr13/4Cr13
After-sales Service :: 7*24 Hours
Warranty:: 12 Months
Minimum Hole Size (mm) :: Φ1
Transport Package:: Tray
Production Capacity :: 5000 Pieces/Year
High Light:

Aluminium Extruded Fin Tube

,

Finned Aluminum Extrusion Tube

Basic Infomation
Place of Origin: China
Brand Name: DELLOK Yonghui
Certification: CE
Model Number: X46cr13/4Cr13
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: TBD
Product Description
DELLOK Aluminum Extruded Fin Radiator Fin Tube





About us



DELLOK (YONGHUI RADIATING PIPE MANUFACTURING CO.,LTD.) was established in 2002, which is located in Jiangsu, China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above. Quality is the theme of eternal pursuit of winner -Production workshop- Meticulous works, standardized management system and systematic quality assurance are Dellok(YONGHUI)'s best commitment to quality. In Dellok(YONGHUI), the quality control is not only the detection of the final process, but throughout the entire production process. We implement a set of quality control and assurance systems. Each batch of pipes is sampled and tested, and records are kept as a quality guarantee for the final product.



                       DELLOK  Aluminum Extruded Fin Radiator Fin Tube 0





Properties:

Manufacturing Process:- Cold Extrusion

Fin To Tube Bond:- Excellent

Heat Transfer Efficiency:- Excellent

Mechanical Resistance:- Excellent (Hence can be frequently cleaned with high pressure jets unlike other fin tubes. Thereby reducing down time and increasing overall life)

Corrosion Protection:- Gives excellent corrosion protection to the base tube since it entirely covers the base tube (except bare ends).

Temperature Range:- Upto Maximum 300 Deg C



DELLOK  Aluminum Extruded Fin Radiator Fin Tube 1



Manufacturing Process:

The fins are rotary cold rolled from a smooth thick walled hollow blank tube slid over the core tube. Three multi spindle disc packs extrude the hollow blank tube into helical high fins.

During this process the inner diameter of the hollow blank tube is reduced and at the same time pressed on the core tube. This results in a mechanically solid joint.

Fin Material: Aluminium/Copper.

Core Tube Material: Carbon Steel/ Carbon

Alloy Steel/Stainless Steel/ Nickel Alloys/Copper/Copper Alloys/Titanium.



DELLOK  Aluminum Extruded Fin Radiator Fin Tube 2



Advantages:

100% fin-to-tube bond providing exceptional efficiency and longevity.

Excellent corrosion protection on the base tube.

Easy to clean with a high-pressure water jet without deforming the fins.

As the outer sleeve is continuous No galvanic corrosion between the tube and fins.

The bonding of the outer and inner tubes removes the risk of loss of contact with the aluminium due to thermal stress and fins are vibration resistant.

Higher heat transfer performance for the life of the unit.

Extruded Finned tubes are commonly used in applications with temperature up to 325 °c.



DELLOK  Aluminum Extruded Fin Radiator Fin Tube 3



Product Description:

Extruded Finned Tubes provide the greatest resistance to atmospheric corrosion. The aluminum fin material completely encloses the tube, except at the ends where a tube coating can be applied. Where atmospheric corrosion is present and when operated within design temperature limits, extruded finned tubes provide the most stable performance over time as compared to the other fin types. The fin is rolled from an outer aluminum tube by a process using pressure to create a rolled “pressure bond” between the liner tube and fins.

Extruded Finned Tubes are commonly used in applications with temperatures up to 550 degrees Fahrenheit.



DELLOK  Aluminum Extruded Fin Radiator Fin Tube 4



Applications:

Primary extruded finned tubes are used in high temperature conditions and corrosive atmospheric conditions, such as operating temperatures less than 300°C or off-shore applications,heat pipes air to air heat exchangers for HVAC applications,air dehumidification in air treatment plants, energy recovery in air exhaust system. This kind of fin design is the least economical as compared to the other fin types, main reason due to the increased amount of aluminum used around 40% also increased labors during the manufacturing. However this increased cost can be compensated if using lower grade parent tube material.



DELLOK  Aluminum Extruded Fin Radiator Fin Tube 5



Product description

Fin Type: Extruded Fin Tube

Tube Material: copper, copper nickel, stainless steel, titanium etc.

Fin Material: Copper, aluminum



Aluminum extruded finned tubes using the form of the base tube covered with aluminum tube(the base tube can be carbon steel, stainless steel, copper) through machine extrusion, forming a tube fin, the fin base and the tube outer wall is close fitting, this fin tubing control can make finned tubes with high heat transfer coefficient and heat transfer performance.

Aluminum extruded finned tubes, also called [integral finned tubes" using the form of the base tube covered with aluminum tube(the base tube can be carbon steel, stainless steel, copper) through machine extrusion, forming a tube fin, the fin base and the tube outer wall is close fitting, this fin tubing control can make finned tubes with high heat transfer coefficient and heat transfer performance. Extruded Finned Tube can be made of iron, copper or aluminum tube by compound rolling, which has the advantages of tight bonding, small thermal resistance, good heat transfer performance, high strength, small flow loss, strong anti-corrosion performance, not easy to deformation under long-term hot and cold working conditions, long working life and so on.

DELLOK  Aluminum Extruded Fin Radiator Fin Tube 6



Extruded finned tube manufacturing process

Pipe line--compressing or rolling--strip peeling--washing--pressure test--blast blowing--packaging.

The Extruded Fin Tube is formed by a bimetallic tube consisting of an aluminum outer tube and an inner tube of almost any material. The fin is formed by rolling the material from the outside of the outer tube to provide an integrated fin with excellent heat transfer performance and life. The extruded fins provide excellent corrosion protection for the base tube.

The production method of the composite finned tube mainly includes the extrusion method: the bimetallic composite tube is lined with a mandrel, and driven by the rotation of the roller blade, the composite tube is processed on the outer surface through the cavity formed by the rolling groove and the core head Out fins. The heat transfer tube produced by this method is an organic whole with its outer tube and fins, so there is no problem of contact heat loss, and it has good performance and high heat transfer efficiency.





FAQ



Q: What is your the lead time for production?

A: Generally Sample needs 1-3 days, mass production needs 15-30 days, also depends on your request.

Q: What is the warranty for your products?

A :We provide one year warranty for the products.

Q: What payment terms do you accept?

A :Trade assurance,TT,Western Union.

Q: What are the modes of transportation of machines?

A: Air freight, sea freight express delivery, etc. We will choose the most suitable transportation method according to your requirements.
