Dellok Aluminum extruded finned tube for boiler

1 Piece
MOQ
$20 - 100 /Piece/Pieces
Price
Dellok Aluminum extruded finned tube for boiler
Features Gallery Product Description Request A Quote
Features
Specifications
Fin Coating: Anodizing/Polishing/Sandblasting/Painting
Fin Configuration: Staggered/In-line
Fin Height: Customized
Fin Material: Aluminum/Copper/Stainless Steel/Carbon Steel
Fin Pitch: Customized
Fin Spacing: Customized
Fin Thickness: Customized
Fin Type: Serrated/Plain/Louvered/Perforated/Offset/Wavy
Length: Customized
Material: Aluminum/Copper/Stainless Steel/Carbon Steel
Processing Technology: Extrusion
Shape: Round/Square/Rectangular
Size: Customized
Surface Treatment: Anodizing/Polishing/Sandblasting/Painting
Wall Thickness: Customized
High Light:

Pellet Machine Die

,

Pellet Machine Roller

,

Pellet Ring Die

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Extruded Fin Tube
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 1-3 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Product Description

Dellok Aluminum extruded finned tube for boiler





About Us



Dellok(YONGHUI Radiating Pipe Manufacturing Co.,Ltd) was established in 2002, which is located in Nanjing, China.We joined HARBIN AIR CONDITIONING CO., LTD. in 2022 and became the most professional industry manufacturer in China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above.

Quality is the theme of eternal pursuit of winner.








Aluminum extruded Fin Tube Material: copper, copper nickel, stainless steel, titanium etc.

Fin tube fin Material: Copper, aluminum

Aluminum extruded Fin tube Product description:

Aluminum extruded finned tubes using the form of the base tube covered with aluminum tube(the base tube can be carbon steel, stainless steel, copper) through machine extrusion, forming a tube fin, the fin base and the tube outer wall is close fitting, this fin tubing control can make finned tubes with high heat transfer coefficient and heat transfer performance.

Aluminum extruded finned tubes, also called “integral finned tubes” using the form of the base tube covered with aluminum tube(the base tube can be carbon steel, stainless steel, copper) through machine extrusion, forming a tube fin, the fin base and the tube outer wall is close fitting, this fin tubing control can make finned tubes with high heat transfer coefficient and heat transfer performance. Extruded Finned Tube can be made of iron, copper or aluminum tube by compound rolling, which has the advantages of tight bonding, small thermal resistance, good heat transfer performance, high strength, small flow loss, strong anti-corrosion performance, not easy to deformation under long-term hot and cold working conditions, long working life and so on.










Extruded finned tube manufacturing process

Pipe line——compressing or rolling——strip peeling——washing——pressure test——blast blowing——packaging.



The Extruded Fin Tube is formed by a bimetallic tube consisting of an aluminum outer tube and an inner tube of almost any material. The fin is formed by rolling the material from the outside of the outer tube to provide an integrated fin with excellent heat transfer performance and life. The extruded fins provide excellent corrosion protection for the base tube.



The production method of the composite finned tube mainly includes the extrusion method: the bimetallic composite tube is lined with a mandrel, and driven by the rotation of the roller blade, the composite tube is processed on the outer surface through the cavity formed by the rolling groove and the core head Out fins. The heat transfer tube produced by this method is an organic whole with its outer tube and fins, so there is no problem of contact heat loss, and it has good performance and high heat transfer efficiency.










Extruded finned tube advantage

Compared with the ordinary wound finned tube, the contact thermal resistance remains stable in a large range with the temperature change, so the heat transfer performance of the bimetallic aluminum extruded finned tube is better than the spiral fin tube in the limit tube wall temperature range.



In addition, compared with the coiled tube, the bimetallic aluminum extruded fin tube has outstanding corrosion resistance and high strength, it can withstand 4.0MPa water pressure cleaning, the fins still do not fall down, the base of the bimetallic aluminum extruded tube. The tube can be selected according to the corrosion of the fluid in the tube and the processing technology. The base tube can be carbon steel, copper, stainless steel, etc.








Extruded finned tube applications

Extruded finned tubes are the main equipment for air coolers and are commonly used as heat exchangers in power plants (electric, nuclear, thermal and geothermal). Steam condensate system. Chemical and petrochemical industries. Food processing plants and refrigeration technology. Industry (steel mills, incinerators, gas compression facilities). Petrochemical, power plant and power plant renovation, air conditioning and refrigeration, boilers, finned tube economizers and air preheaters. Maximum working temperature is 280°C-300°C.

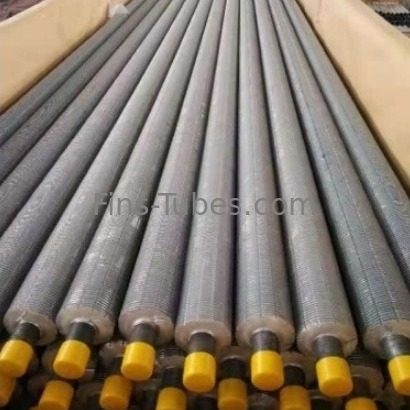

Dellok Aluminum extruded finned tube for boiler 0








FAQ



Q1: Are you trading company or manufacturer?

A: We are manufacture factory and we can accept OEM order. Welcome to visit our factory and check our products.



Q2: Can I have a sample ?

A: Yes, welcome to place sample order to test and check quality. Mixed samples are also OK.



Q3: What is your the lead time for production?

A: Generally Sample needs 1-3 days, mass production needs 15-30 days, also depends on your request.

Q4: What is the warranty for your products?

A :We provide one year warranty for the products.
