Extruded Fin Tube Product Description:

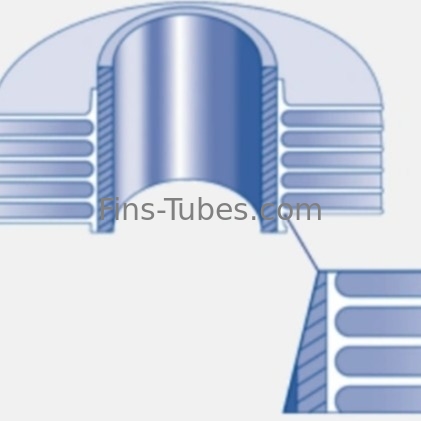

Extruded Finned Tubes provide the greatest resistance to atmospheric corrosion. The aluminum fin material completely encloses the tube, except at the ends where a tube coating can be applied. Where atmospheric corrosion is present and when operated within design temperature limits, extruded finned tubes provide the most stable performance over time as compared to the other fin types. The fin is rolled from an outer aluminum tube by a process using pressure to create a rolled “pressure bond” between the liner tube and fins.
Extruded Finned Tubes are commonly used in applications with temperatures up to 550 degrees Fahrenheit.
Extruded Finned Tube Manufacturing Process:
The fins are rotary cold rolled from a smooth thick walled hollow blank tube slid over the core tube. Three multi spindle disc packs extrude the hollow blank tube into helical high fins.
During this process the inner diameter of the hollow blank tube is reduced and at the same time pressed on the core tube. This results in a mechanically solid joint.
Fin Material: Aluminium/Copper.
Core Tube Material: Carbon Steel/ Carbon
Alloy Steel/Stainless Steel/ Nickel Alloys/Copper/Copper Alloys/Titanium.
Extruded Fin Tubes Advantages:
100% fin-to-tube bond providing exceptional efficiency and longevity.
Excellent corrosion protection on the base tube.
Easy to clean with a high-pressure water jet without deforming the fins.
As the outer sleeve is continuous No galvanic corrosion between the tube and fins.
The bonding of the outer and inner tubes removes the risk of loss of contact with the aluminium due to thermal stress and fins are vibration resistant.
Higher heat transfer performance for the life of the unit.
Extruded Finned tubes are commonly used in applications with temperature up to 325 °c.
Extruded Aluminum Tubing Properties:
Manufacturing Process:- Cold Extrusion
Fin To Tube Bond:- Excellent
Heat Transfer Efficiency:- Excellent
Mechanical Resistance:- Excellent (Hence can be frequently cleaned with high pressure jets unlike other fin tubes. Thereby reducing down time and increasing overall life)
Corrosion Protection:- Gives excellent corrosion protection to the base tube since it entirely covers the base tube (except bare ends).
Temperature Range:- Upto Maximum 300 Deg C
Aluminum Extruded Tubing Applications:
Primary extruded finned tubes are used in high temperature conditions and corrosive atmospheric conditions, such as operating temperatures less than 300°C or off-shore applications,heat pipes air to air heat exchangers for HVAC applications,air dehumidification in air treatment plants, energy recovery in air exhaust system. This kind of fin design is the least economical as compared to the other fin types, main reason due to the increased amount of aluminum used around 40% also increased labors during the manufacturing. However this increased cost can be compensated if using lower grade parent tube material.
Extruded Aluminum Tube Specifications:
| Product Specification | ||
| Tube OD | 10~51 (mm) | 0.4”~2” |
| Tube Wall Thk | 1.65~3.0 (mm) | 0.065”~0.118” |
| Tube Length | ≤18,500 (mm) | ≤60.7 ft |
| Fin Thk | 0.3~1.2 (mm) | 0.012”~0.047” |
| Fin Height | 5~16 (mm) | 0.2”~0.63” |
| Fin Pitch | 100~555 (mm) | 3~14 FPI |
| Fin Type | Extruded | |
| Material Combinations | ||
| Fin Material | Aluminum (most common grade:Alu.1100, Alu.1060, Alu. 6063) | |
| Copper | ||
| Tube Material | C.S. (most common grade: A179, A192,SA210 GrA1/C,A106 Gr B ) | |
| S.S. (most common grade: TP304, 316, 321, 347,A789) | ||
| Copper (most common grade:UNS12200,14200, 70600, CuNi70/30, CuNi 90/10) | ||
| Titanium (most common grade: B338Gr2) | ||
| Applied Temperature |
300°C | |
| Type of Service | Medium temperature, severe atmospheric corrosive environment. | |
Product Categories : Extruded Finned Tube
Fin Type: Extruded Fin Tube
Tube Material: copper, copper nickel, stainless steel, titanium etc.
Fin Material: Copper, aluminum
Aluminum extruded finned tubes using the form of the base tube covered with aluminum tube(the base tube can be carbon steel, stainless steel, copper) through machine extrusion, forming a tube fin, the fin base and the tube outer wall is close fitting, this fin tubing control can make finned tubes with high heat transfer coefficient and heat transfer performance.
Aluminum extruded finned tubes, also called [integral finned tubes" using the form of the base tube covered with aluminum tube(the base tube can be carbon steel, stainless steel, copper) through machine extrusion, forming a tube fin, the fin base and the tube outer wall is close fitting, this fin tubing control can make finned tubes with high heat transfer coefficient and heat transfer performance. Extruded Finned Tube can be made of iron, copper or aluminum tube by compound rolling, which has the advantages of tight bonding, small thermal resistance, good heat transfer performance, high strength, small flow loss, strong anti-corrosion performance, not easy to deformation under long-term hot and cold working conditions, long working life and so on.
Extruded finned tube manufacturing process
Pipe line--compressing or rolling--strip peeling--washing--pressure test--blast blowing--packaging.
The Extruded Fin Tube is formed by a bimetallic tube consisting of an aluminum outer tube and an inner tube of almost any material. The fin is formed by rolling the material from the outside of the outer tube to provide an integrated fin with excellent heat transfer performance and life. The extruded fins provide excellent corrosion protection for the base tube.
The production method of the composite finned tube mainly includes the extrusion method: the bimetallic composite tube is lined with a mandrel, and driven by the rotation of the roller blade, the composite tube is processed on the outer surface through the cavity formed by the rolling groove and the core head Out fins. The heat transfer tube produced by this method is an organic whole with its outer tube and fins, so there is no problem of contact heat loss, and it has good performance and high heat transfer efficiency.
FAQ
1. What Does Fin Tube Mean?
A fin tube is a tube that has small fins around the outside surface. These fins act as a filter and a mechanism to transfer heat from the material inside the tube to the outside space or vice versa. Fin tubes are used in applications that require a transfer of heat from a hot fluid to a colder fluid through the tube's wall. The rate at which such heat transfer occurs depends on three factors:
The temperature difference between the two fluids.
The heat transfer coefficient between each of the fluids and the tube wall.
The surface area to which the fluid is exposed.
2. Where is finned tube heat exchanger used?
Finned tube heat exchangers generally use air to cool or heat fluids such as air, water, oil or gas, or they can be used to capture or recover waste heat. These heat exchangers can used in a broad range of industries including oil & gas, power generation, marine and HVAC&R.
3. What is extruded fin tube?
Extruded finned tubes are bimetallic tubes whose outer aluminium surface is finned by cold plastic deformation. There are two major types of finned tubes available with us, single metal tubes (also called mono metallic fin tube) and Bimetallic tube (composite extruded fin tube) .
4. Why Aluminium is recommended as a fin material?
Good corrosion resistance, formability and high thermal conductivity make aluminium an ideal material for the construction of these heat exchangers. A typical brazed heat exchanger (radiator or condenser) comprises fins, tubes, sideplates and headerplates.
5. Where are extruded fin tubes used?
Extruded Fin Tubes are widely used in the refinery, petrochemical and chemical industry for:
Air-cooled condensers
Air-cooled coolers for products
Gas coolers
Gas heaters
