DELLOK Pin Studded Steel Tubes Tubular Heaters Power plant
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Decoration
Color: Silver
Diameter: Customized
Length: Customized
Material: Stainless Steel
Shape: Round
Size: Customized
Studded Color: Silver
Studded Density: High
Studded Number: Customized
Studded Shape: Round
Studded Size: Customized
Studded Type: Diamond
Surface Treatment: Polishing
Thickness: 2mm
Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Studded Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Product Description

DELLOK Pin Studded Steel Tubes Tubular Heaters Power plant





About Us



Dellok(YONGHUI Radiating Pipe Manufacturing Co.,Ltd) was established in 2002, which is located in Nanjing, China.We joined HARBIN AIR CONDITIONING CO., LTD. in 2022 and became the most professional industry manufacturer in China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above.

Quality is the theme of eternal pursuit of winner.

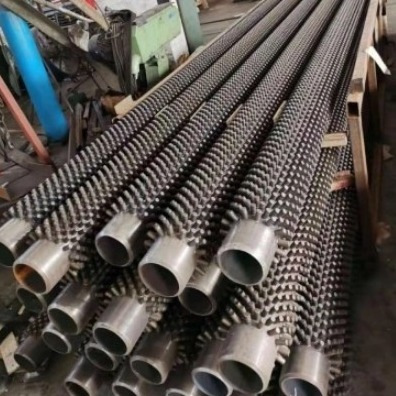

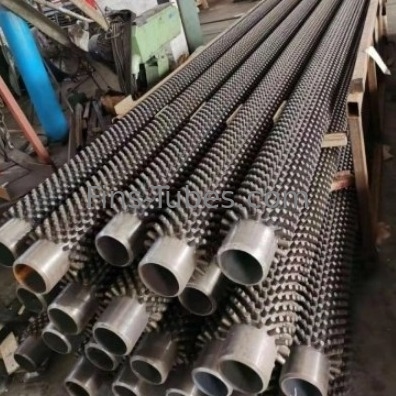

Studded Tube Product Description:



Steel studded tubes are used instead of finned tubes for heat transfer in the processing industries, generally in furnaces, gas turbines, fired heaters and furnace applictions where the surface is exposed to a very corrosive environment and where very dirty gas streams require frequent or aggressive cleaning.

The steel studs are automatically resistance welded to the tube, producing high quality forge welds. The welding process enables the combination of any grades for studs and tube: carbon, low alloy, stainless steels and high nickel alloys. Alloy steel pipes are stress-relieved after studding, according to the relevant specifications for the class and grade of steel used.

Studded Tube



Studded Tube(Stainless Steel Welded Tube) Manufacturing Process:



Studs are fully automatically welded onto the tubes (pipes) by resistance welding.



Welded Stainless Tube



Studded Tube(Welded Stainless Tube) Advantages:



To increase the surface area of the tube and to protect tube surface from direct exposure to heat /corrosive environment.

Studding reduces the amount of bare pipes used in these processes. Heat transfer surface of one studded pipe is equivalent to surface of 4 to 10 bare pipes.

Use of studded tubes is ideal for processes/applications, where dirty fuels are used in harsh environments.



Weld Galvanized Pipe



Studded Tube(Black Welded Pipe) Properties:

Wear proof design

High heat transferring capacity



Black Welded Pipe



Studded Tube(Weld Galvanized Pipe) Applications:



Boiler,Super heater, Gas furnace burner, heat exchange equipment ,chemical equipment,heat recovery of the petrochemical industry, in areas of convection ovens, vacuum generators for chemical processing, etc.Boiler stud tube,Super heater stud tube, Gas furnace burner stud tube.



Stainless Steel Welded Tube





Studded Tube(Fin Tube) Specifications:



Product Specification
Tube OD 25~273 (mm) 1”~10” (NPS)
Tube Wall Thk 3.5~28.6 (mm) 0.14”~1.1”
Tube Length ≤25,000 (mm) ≤82 ft
Stud Thk 6~25.4 (mm) 0.23”~1”
Stud Height 10~35 (mm) 0.4”~1.38”
Stud Pitch 8~30 (mm) 0.3”~1.2”
Stud Type Cylindrical, Elliptical, Lens type
Stud to tube surface angle Vertical or Angular
Material Combinations
Stud Material C.S. (most common grade: Q235B)
S.S. (most common grade are AISI 304, 316, 409, 410, 321,347)
A.S.
Tube Material C.S. (most common grade: A106 Gr.B)
S.S. (most common grade are TP304,316, 321, 347)
A.S. (most common grade are T/P5,9,11,22,91)
Type of Service High temperature









Fin Tube
