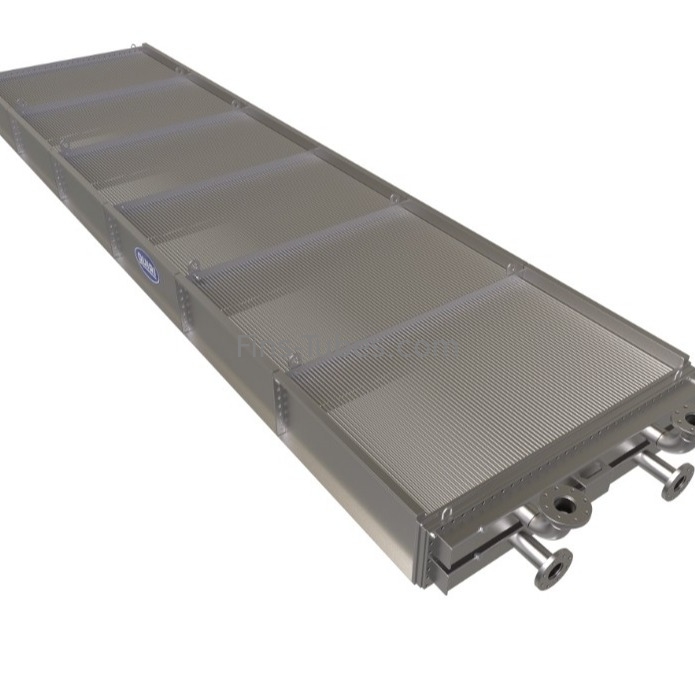

Lightweight Air Cooler Heat Exchanger Easy Installation
Product Description
DELLOK YONGHUI AIR COOLER BUNDLES
For air cooling installations, in order to transmit thermal energy from an internal fluid to the ambient air, air coolers are the appropriate solution. Quiri supplies replacement beams for chemical, refining or steel plants.
TECHNICAL SPECIFICATIONS :
The bundles operate on the principle of using atmospheric air as a cooling source. Installed mainly outdoors and in industrial environments, these tubular heat exchangers are exposed to climatic conditions and ambient air quality. The heat exchange takes place through the finned tubes, which can be attached, extruded, type G, L, KL or LL. The tubes can be made of carbon steel or stainless steel depending on the nature of the fluid to be cooled. The fins are generally made of aluminium, but can also be made of copper or steel with galvanization. Aluminium has the advantage of being light and not very sensitive to fouling. Galvanized steel offers a long service life. Whatever the type of boxes, with caps, welded, or dismountable, we make the batteries that will allow your installation to recover its original performances.
SOME TECHNICAL DATA ON THE OXYGEN STEEL PLANT PROJECT IN THE MIDDLE EAST:
GEOMETRIC SPECIFICITIES :
Forced (refining zones) and induced (continuous casting zone)
CONSTRUCTIVE SPECIFICITIES :
Code : ASME VIII + API 661
Regulation: DESP 97/23/EC
Welding Processes: ASME IX Approved
Welder Approvals: As per ASME IX
Semi-automatic MIG/MAG processes
QUALITY SPECIFICITIES :
LOFC according to customer and local specifications.
Measurements taken on site to guarantee interchangeability
FAQ
Q1: What is an air cooler?
A1: An air cooler, also known as an air cooler, is a heat exchanger that uses air as a cooling medium to cool warm air to the desired temperature. Its working principle is that the warm fluid inside the tube exchanges heat with the air outside the tube through the tube wall and fins, thereby achieving cooling and condensation effects.
Q2: What are the main components of an air cooler?
A2: The air cooler is mainly composed of pipes, brackets, and fans. Warm fluid flows inside the tube, while air blows outside the tube. The control section includes heat transfer tubes, tube boxes, side beams, and crossbeams, etc
Q3: What are the main applications of air coolers in?
A3: Air coolers have a wide range of applications, mainly concentrated in industrial settings that require efficient heat dissipation and have certain limitations on water resources. For example, in the power system, in the petrochemical industry, in the metallurgical industry, and in the aerospace industry.
