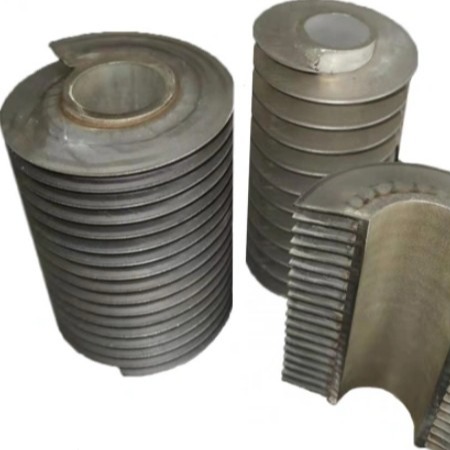

DELLOK High Efficiency Heat Exchange Welded Fin Tube Coil

1 piece
MOQ
$10 - 100 /Piece/Pieces
Price
DELLOK High Efficiency Heat Exchange Welded Fin Tube Coil
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Heat Exchanger
Heat Treatment: Annealing
Inner Diameter: Customized
Length: Customized
MOQ: 1 Piece
Material: Stainless Steel
Outer Diameter: Customized
Package: Wooden Case
Standard: ASTM, AISI, DIN, JIS, GB
Surface Treatment: Polishing
Thickness: Customized
Tolerance: ±0.05mm
Welding Method: Laser Welding
High Light:

Heat Exchange Welded Fin Tube

,

Heat Exchange Fin Tube Coil

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Laser Weld Fin Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Product Description

DELLOK High Efficiency Heat Exchange Welded Fin Tube





About Us



Dellok(YONGHUI Radiating Pipe Manufacturing Co.,Ltd) was established in 2002, which is located in Nanjing, China.We joined HARBIN AIR CONDITIONING CO., LTD. in 2022 and became the most professional industry manufacturer in China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above.

Quality is the theme of eternal pursuit of winner.






Laser Welded Finned Tube Product Description:



The laser welding process is carried out under the protective atmosphere, and no impurity of the weld seam.

The fin strip is welded continuously and spirally wound onto bare tube. And the tube and fins are bonded together by using lase welding technique. 100% welding between fin and base tube without using any filler material.

The Laser Welded Fin Tubes are widely applied in fired heaters, heat exchangers, boilers, economizers, pre-heaters, coolers, heat pipes, heaters, etc.



Laser Welded Finned Tube



Laser Welding Fin Tube Manufacturing Process:

The fin strip is welded continuously and spirally wound onto a polished bare tube. And the tube and fins are bonded together by using advanced laser welding technique.

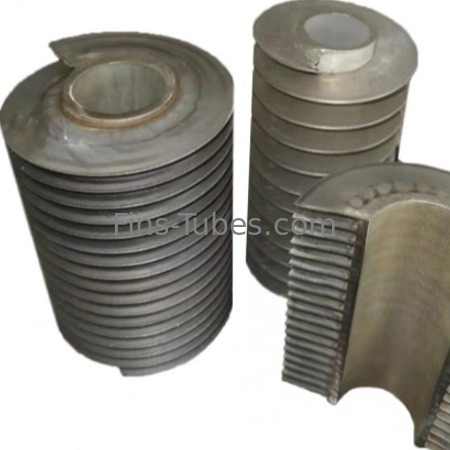

DELLOK High Efficiency Heat Exchange Welded Fin Tube Coil 1



Laser Welding Fin Tube(Welded Spiral Pipe) Advantages:

1.Thin and continuous ideal seams

2.Small heat affected area

3.Slightly discolored welding parts

4.The tubes and fins have only slight microstructure changes

5.High heat forms seams

6.Since the high welding integrity between the tube and the fins is avoided, the crevice corrosion is avoided, thereby improving safety

7.Laser welding is carried out in a protective atmosphere, so the weld is free of impurities



Fin Tube



Laser Welded Finned Tube(Stainless Steel Welded Pipes) Properties:

1.a high degree of automation, automatic fins laser welding machine can realize one-time completion of welding, synchronous winding make the fin foot and the pipe depth of weld.

2.laser welding, high firmness, high binding force. Laser welding is metallurgical bonding, welding strength is more than 600MPa.

3.laser welding machine with high accuracy, welding a 8 meter long fin tube with a precision of 0.05mm.

4.the heat transfer coefficient can be improved greatly by laser welding.

5.laser welding finned segment length is less than or equal to 2.5 mm, heat dissipation area than the high frequency welded pipe (distance is more than or equal to 4.5 mm) increased by nearly 50%, greatly reducing the material of the tube, also can decrease the change of the volume of the Heat Exchanger.



Laser Welding Fin Tube



Laser Welded Finned Tube(Stainless Steel Welded Pipe) Applications:

1.Power Plants

Cooling towers or cooling water recooling plants with dry, dry / wet or wet operation

Flue gas cooling and heating in flue gas desulfurisation scrubbers (FGD) and nitrogen removing plants

2.Chemical Industry

Heat exchangers of all kinds for cooling and heating of liquids and gases

Heat exchangers tor nitric acid (HNO3) plants, e.g. for the fertilizer industry

3.Heat Recovery Plants

Flue gas coolers

4.Heating Industry

Primary heat exchangers in gas heating boilers

Secondary heat exchangers for domestic water heating in condensing boilers

5.General Engineering

Heat exchangers for gas cooling of industrial furnaces

Heat exchangers for tank heating

Oil coolers for vacuum plants, ship plants, pumps etc.

Heat exchangers for oil preheating



Spiral Welding Pipe
