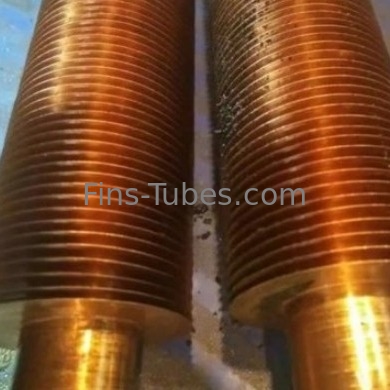

DELLOK Copper G Embedded Finned Tube For Condensers

1 Piece
$10 - 100 /Piece/Pieces
DELLOK Copper G Embedded Finned Tube For Condensers
Features Gallery Product Description Request A Quote
Application: Heat Exchanger, Condenser, Boiler
Connection Type: Welding, Threaded
Fin Height: Customized
Fin Pitch: Customized
Fin Thickness: Customized
Fin Type: L, LL, K, KL, G, W
Length: Customized
Material: Stainless Steel
Size: Customized
Surface Treatment: Polishing
Tube Diameter: Customized
Tube Number: Customized
Tube Wall Thickness: Customized
Warranty: 1 Year
High Light:

Condensers Embedded Finned Tube


Threaded Connection Embedded Finned Tube


Copper G Embedded Finned Tube

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Embedded Fin Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: T/T, MoneyGram, Western Union, D/P, D/A, L/C
Supply Ability: 10000 Piece/Pieces per Month
Product Description

DELLOK Copper G Finned Tube For Condensers




About us


Professional heat exchanger factory with 20 years of experience, providing you with one-stop heat transfer solutions to design different heat exchangers according to your purposes (metallurgy, food, petrochemical, pharmaceutical, beverage, wastewater, refrigeration, etc...)

Dellok Young is a professional manufacturer of various heat exchangers integrating R&D, design, production and sales. The heat exchangers produced are mainly used in petrochemical, electric power, papermaking, building heating, mining and other industries, such as air heaters, food industry plant protein powder, starch and other air heater spray drying systems.

The company now has a professional technical innovation team and professional after-sales personnel. The company's production plant covers an area of approximately 18,000 square meters, has multiple professional and advanced CNC and automated production equipment, and has obtained a number of professional certificates and patents.
The company has a professional foreign trade team and has trade cooperation with various regions. Some global partners conducted on-site inspections of the production plants and were very satisfied with the inspection results and established long-term strategic cooperative relationships with our company.

                       DELLOK Copper G Embedded Finned Tube For Condensers 0


G Finned Tube Product Description


Metal is merely shifted, not removed, by a helical groove 0.2-0.3 mm (0.008-0.012 in) ploughed into the outside of the base-tube wall. The displace metal is rolled back on each side of the fin to hold it in place after the aluminium fin is physically wound into the groove under strain. This is why it’s also known as an embedded finned tube. The thickness beneath the groove is the effective thickness of the base-tube wall. This kind provides great thermal and mechanical contact between the fin and the groove. Despite the fact that the base tube metal is exposed to the outside, testing conducted under server settings revealed that long-term corrosion is required before any bond failure develops. The G-type Fin Tube can withstand temperatures of up to 750 degrees Fahrenheit (450 C degree)



Aluminum Finned Tube



G Finned Tube Manufacturing Process




Fin strip is rolled in a uniform taper, helically wound into a plowed groove into the tube wall

and simultaneously backfilled (by flat rotating discs) on both sides to lock the fin to the tube.

No tube material is removed. This gives an excellent bond with high pull out loads.

Fin Material: Aluminium/Copper/Carbon Steel.

Core Tube Material: Carbon Steel/ Carbon Alloy Steel/Stainless Steel/ Nickel Alloys/Copper/Copper Alloys.




Finned Copper Pipe




G Finned Tube Advantages


High fin stability, excellent heat transfer, high operating temperature.




Finned Copper Pipe


G Finned Tube  Properties


Fins per Inch: 5-13 FPI

Tube Material: Ferrous, Non-Ferrous & Some Alloys

Fin Contact: Mechanical Bond

Type of Service: High Temperature

Maximum Tube Wall Operating Temperature:

Based on fin material:

Aluminum: 650°F (343°C)

Carbon Steel: 850°F (450°C)

Stainless Steel: 1000°F (540°C)

Maximum Tube RPM on 1” Tube: 3000

Estimated Production Feet/Hour on 1” tube at 11 FPI at 90% of Tube RPM and 85% Efficiency Factor: 512 ft/hr or 156 m/hr.



Copper Finned Pipe




G Finned Tube Applications


Air Cooler,Charge Air Chiller, Condenser,Evaporator, Fluid Cooler, Gas Cooler,Oil Cooler, Radiator, Refrigeration,Steam to Air Heat Exchanfer etc.



Finned Aluminum Tubing



G Finned Tube Specifications


Product Specification
Tube OD 19~51 (mm) 3/8”~2”
Tube Wall Thk 2.11~3.5(mm) 0.083”~0.138”
Tube Length ≤18,500 (mm) ≤60.7 ft
Fin Thk 0.3~0.5 (mm) 0.012”~0.02”
Fin Height 10~16 (mm) 0.394”~0.63”
Fin Pitch 100~433 FPM 3~11 FPI
Fin Type G
Material Combinations
Fin Material Aluminum (most common grade:Alu.1100, Alu.1060, Alu. 6063)
Tube Material C.S. (most common grade: A179, A192,SA210 GrA1/C,A106 Gr B )
S.S. (most common grade: TP304, 316)
Copper (most common grade:UNS12200,14200, 70600, CuNi70/30, CuNi 90/10)
Titanium (most common grade: B338Gr2)
Applied 400°C
Type of Service High temperature





Q1: Are you trading company or manufacturer?

A: We are manufacture factory and we can accept OEM order. Welcome to visit our factory and check our products.


Q2: Can I have a sample ?

A: Yes, welcome to place sample order to test and check quality. Mixed samples are also OK.


Q3: What is your the lead time for production?

A: Generally Sample needs 1-3 days, mass production needs 15-30 days, also depends on your request.


Q4: What is the warranty for your products?

A :We provide one year warranty for the products.


Q5: What payment terms do you accept?

A :Trade assurance,TT,Western Union.


Q6: What are the modes of transportation of machines?

A: Air freight, sea freight express delivery, etc. We will choose the most suitable transportation method according to your requirements.Low fin Tube
