DELLOK SB338 Seamless Titanium Integral Thickness 0.3mm Low Fin Tubes

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK SB338 Seamless Titanium Integral Thickness 0.3mm Low Fin Tubes
Features Gallery Product Description Request A Quote
Features
Specifications
Fin Tube Type: SB338 G.2 Seamless Titanium, 30FPI Integral Low Finned Tube
OD: 12.7 Mm~25.4mm
Quality Test:: The Integral Low Fin Tube Quality Is Assured By Hydrostatic Or Pneumatic Tests, Eddy Current Tests & MARCO Tests In Order To Verify Design Specifications.
Material Quality: Titanium
Thickness: Appr. 0.3mm
Height: 1.2 Mm ~2.77mm
High Light:

30FPI Low Fin Tubes

,

26 FPI Titanium Seamless Tube

,

26 FPI Low Finned Tubes

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: Low Finned Tubes
Payment & Shipping Terms
Packaging Details: (1) All integral low fin tubes are packed in hexagonal bundles. (2) Steel frame case sealed by plywoods; 3: Solid fumigated seaworthy wooden box.
Delivery Time: Ex-work with 1 month after order.
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 600000 meters per month
Product Description

SB338 Seamless Titanium Integral Thickness 0.3mm Low Fin Tubes



SB338 G.2 seamless titanium, 30FPI integral low finned tube



Quick Details
Condition: New Brand Name: YONGHUI
Place of Origin: China Fin thickness: appr. 0.3mm
Material:
Titanium
Fin Height: 1.2 mm ~2.77mm
Fin Pitch: 30 FPI /28 FPI/ 26 FPI/ 36 FPI /43 FPI Tube Length: No Limit
Tube OD: 12.7 mm~25.4mm Production Capacity: Daily capacity up to 3000 meters;
Packing: Steel frame with plywoods or seaworthy wooden box. Marketing Type: New Production 2020
Warranty: 1 Year After Warranty Service: Online support
Machinery Test Report: Provided Certification: CE. ISO,EN10204. 3.1 Cert.
After-sales Services: Video technical support, Online support Showroom Location: None
Local Service Location: None



Two Types
Titanium welded pipe / tubing ASTM B338,
ASTM B862
Gr1 GR2 GR7 GR12 OD (10.3~914) = (1/8~36)Inch
WT (0.5~30.96) = (0.049~1.219) Inch LengthLength
Titanium seamless pipe / tubing ASTM B338,
ASTM B337,
ASTM B861
GR1 GR2 GR3 GR5 GR6 GR7 GR9 GR12 GR16 GR17 etc. OD (1.5~420)
WT(0.3~16 )Length 18000 mm



Introduction:

The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube. We call it “N” fin type. All integral low fin tube quality is assured by hydrostatic or pneumatic tests, eddy current tests & MARCO tests in order to verify design specifications. The acceptance certification include WOLVERINE / HPT / GEWA-K & GEWA-KS


Delivery:
We can provide the integral low fin tubes with un-finned section gaps( 5mm Min.) in the middle of core tube OR bent with designed Bend Radius. The desiccants are put into the each package for continental transportation.

Applications:
​The Integral Low Finned Tubes find the preference in the following industrial sectors:

  1. Heating systems
  2. Ventilation systems
  3. Refrigeration and climate control systems
  4. Mechanical engineering
  5. Automotive manufacturing
  6. Chemicals and pertrochemical and power plant technology
Our Service
1 Inquiry-Professional quotation, or send inquiry item more details, we start contact more details
2 Confirm the price, lead time, payment term etc
3 Our sales send the Proforma Invoice with our seal, or you order online to us
4 Customer make the payment for deposit and send us Bank receipt
5 Initial Production Stage-Inform the clients that we habe got the payment, and will make the samples according to your request, send you photos or samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time
6 Middle Production-send photos to show the production line which you can see you products. Confirm the estimated delivery time again.
7 End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party inspection
8 Clients make payment for balance and ship goods, inform the tracking number and check the status for clients
9 Order can be say "finish" when you receive the goods and satisfy with them
10 Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better

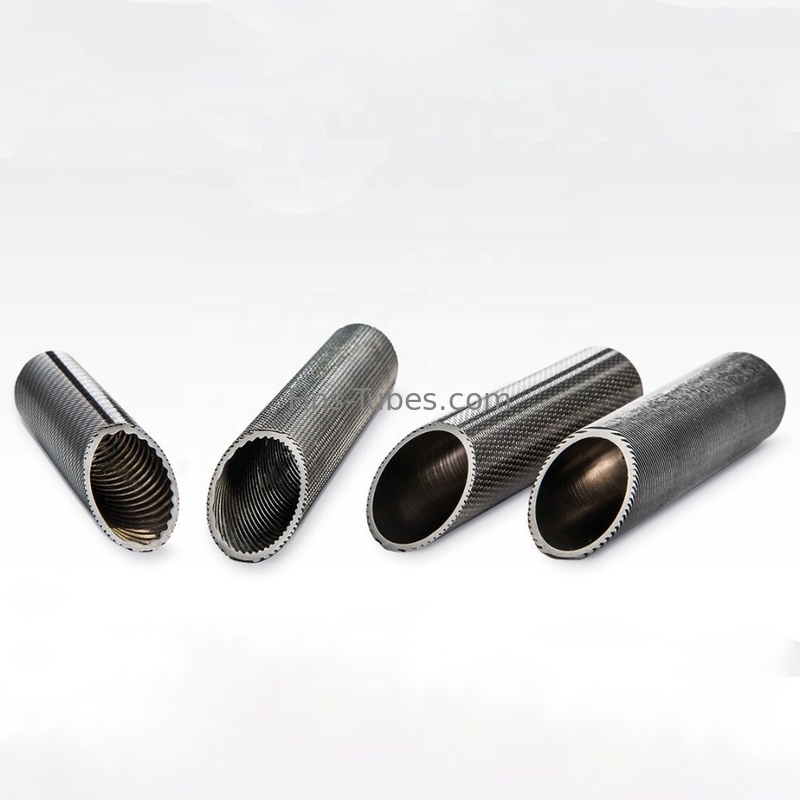

DELLOK SB338 Seamless Titanium Integral Thickness 0.3mm Low Fin Tubes 0DELLOK SB338 Seamless Titanium Integral Thickness 0.3mm Low Fin Tubes 1DELLOK SB338 Seamless Titanium Integral Thickness 0.3mm Low Fin Tubes 2
