Cold Drawn Heat Exchanger A179 Carbon Steel Seamless Tube
|
General HF welding production capacity |
General specifications of HF welding fin tube |
|
Welding Facility: 4 finning machines; Daily production capacity up to 40 tons; HFW Fin type: solid plain and serrated. |
Tube OD: 19mm min. Tube Length: 18 meters max. Fin Height: 32 mm max. Fin Thickness: 0.8mm min Fin Pitch: min. 4 mm for solid fins & 3.3mm for serrated fins. |
Introduction:

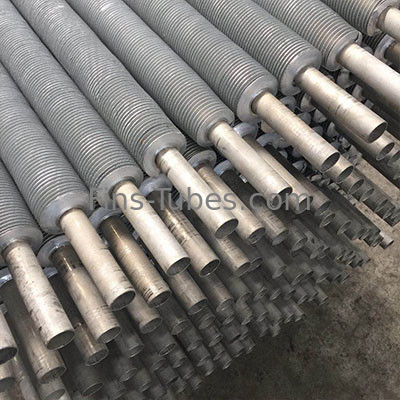

High Frequency Resistance Welded Helical Steel Fin Tubes is widely used in the recovery of waste heat from boiler flue gas.The fin strip is welded continuously and spirally wound onto a polished bare tube. And the tube and fins are bonded together by using high frequency resistance welding technique. All of them are outside-Red oxide zinc phosphate primer and inside volatile corrosion inhibitor (VCI) in water soluble tablet form. Its suits various area such as The High Frequency Resistance Welded Helical Fin Tubes are widely applied in fired heaters, heat exchanger, boilers, economizers, pre-heaters, coolers, heat pipes, heaters etc….
We produce both solid plain and serrated helical welded steel finned tube. And also, all spiral welding tubes could be bent in the middle or at the end of fin tubes, we call it Hairpin tubes.
Check:
Visual check:
Un-welded parts of fin, fin damage after fining, copper pollution, tears, wrap etc…
Dimensional check:
Fin height, fin spacing, fin inclination, fin corrugation, length of finned & un-finned portion etc…
Bending check:
Ovality, thickness and area reduction.
Tube End Finish:
Bevel @ (30°~35°)
Bevel Root Size
0.5mm~1.5mm
Specifications:
A wide range of fin and tube materials could be combinations are available.
|
Items |
General Materials |
Popular ASTM Materials |
|
Core Tube Material |
Carbon Steel , Alloy Steel, Heat Resistant Steel, Stainless Steel etc. |
10#,20#,15CrMo,Cr5Mo,Cr9Mo,1Cr18Ni9Ti,0Cr18Ni9, 00Cr17Ni14Mo2,SA106B,SA106C, SA192, SA179, SA178,SA214, SA210-A1, SA210-C,TP304/304L/304H, TP409/410,TP316/316L,TP321/321L,TP347H,T11,T22,T91,etc.
|
|
Fins Material |
Carbon Steel , Alloy Steel, Heat Resistant Steel, Stainless Steel etc. |
Q235-BF,08F,08AL, 1Cr18Ni9Ti, 0Cr13, 1Cr13, 0Cr18Ni9, 09CrCuSb, CS,A1008-B,SPHC, SPCC, TP304/304L,TP316/316L,TP321/321L,etc. |
Dimensions Data Sheet We Can Supply.
|
Solid Helical Steel Fin Tubes Fabrication Range |
Solid fins(mm) |
Serrated fins |
||
|
Min |
Max |
Min |
Max |
|
|
Tube OD(mm) |
19 |
219 |
19 |
219 |
|
Fin Height(mm) |
8 |
26 |
8 |
32 |
|
Fin Thickness(mm) |
0.8 |
2.8 |
1 |
1.6 |
|
Fins Density(mm) |
4(250FPM) |
20 |
3.3(303FPM) |
20 |
|
Tube Length(mm) |
N/A |
18000 |
N/A |
18000 |
|
Additional supply range : (1) Tube swaging process for joint of 2 tubes. (2) Spacer rings (material: steel) are available. (3) One side is solid plain fins and the other is serrated fins, 2 fin types on same tube. |
||||
