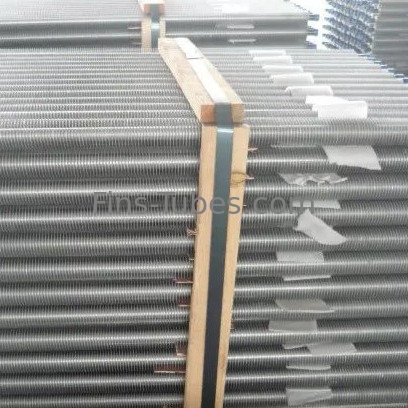

Seamless Cold Mechanical Bimetallic A192M Heat Exchanger Fin Tube
seamless cold finished mechanical extruded bimetallic finned tubes
We have fourteen extrusion fining lines, daily capacity around 15,000 meters, max. base tube OD 2''
Detail:
ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service
ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes
ASTM A179 / A179M : Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
|
Product Details |
|
|
Material: |
Carbon Steel , Alloy Steel, Heat Resistant Steel, |
|
Tube details: |
Tube OD: 12mm min.~50.8mm(2'') max. |
|
Tube Length: no limit |
|
|
Fin Height: 16 mm max. |
|
|
Fin Thickness: appr. 0.4mm/0.5mm/0.6mm |
|
|
Fin Pitch: 1.5mm min. |
|
|
Production Capacity: |
Daily capacity up to 15,000 meters. |
|
Extruded fins type: |
solid plain and serrated. |
Tube Type:Seamless (Cold Drawn)
Ends:Plain ends or bevel ends.
Surface protection:black painting,anti-rust oil or varnish.
|
Items |
General Materials |
Popular ASTM Materials |
|
Core Tube Material |
Any metallic materials, as carbon steel, low-alloy steel, |
1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B |
|
Fins Material |
1. Aluminum Alloy |
1. Aluminum(Alu.1100,Alu.1060,Alu.6063) |
Manufacturing Process
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.
Fins Type:
The fins are solid plain or serrated into segments or as your design.
Unfinned Section
Both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle.
Surface Coating
Both bare ends of Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.
Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).
Applications:
The common application fileds are:
Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
The petroleum, chemical and petrochemical industries;
The food processing and refrigeration industries;
Natural gas treatment;
