DELLOK Seamless Densities Segment Fins Alu1050 Extruded Fin Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Tube OD : : 12mm Min.~50.8mm(2'') Max.
Tube Length :: No Limit
 Fin Height :: 16 Mm Max.
Fin Material: Aluminum 1050, 1060,1070,1100,6063
 Fin Pitch :: 1.5mm Min.
Fin Thickness:: Appr. 0.4mm/0.5mm/0.6mm
High Light:

Alu1050 Extruded Fin Tube

,

12mm Aluminum Finned Tubes

,

Alu6063 Extruded Fin Tube

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: DR
Payment & Shipping Terms
Packaging Details: (1) Steel frame case sealed by plywoods with each end capped; (2)Solid fumigated wooden box with each end capped.
Delivery Time: within 15days
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

Seamless Densities Segment Fins Alu1050 Extruded Fin Tube



seamless cold finished mechanical extruded bimetallic finned tubes​

We have fourteen extrusion fining lines, daily capacity around 15,000 meters, max. base tube OD 2''



Detail:
ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service
ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes
ASTM A179 / A179M : Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
Tube Type: Seamless (Cold Drawn)
Ends: Plain ends or bevel ends.
Surface protection:black painting,anti-rust oil or varnish.



Introduction:

A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve. The fins are solid plain or serrated into 12, 16 or 24 segments or as your design. And both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle. All the goods shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating on surface. Besides, we provide Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).


Applications:
The common application fileds are:

  1. Heat exchangers units for power plant (electric, nuclear, thermal and geothermal power plants);

  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);

  3. The petroleum, chemical and petrochemical industries;

  4. The food processing and refrigeration industries;

  5. Natural gas treatment;

Product Details

Tube details:

Tube OD: 12mm min.~50.8mm(2'') max.

Tube Length: 18 meters max.

Fin Height: 16.5 mm max

Fin Thickness: appr. 0.4mm/0.5mm/0.6mm

Fin Pitch: 1.5mm min.

Production Capacity:

Daily capacity up to 3000 meters.

Extruded fins type:

solid plain and serrated.



Specifications:

Extruded Bimetallic Finned Tube is combined with two different materials.

Items

General Materials

Popular ASTM Materials

Core Tube Material

Any metallic materials, as carbon steel, low-alloy steel,
stainless steel, brass, copper,
cooper-nickel alloys, aluminum bronze, nickel alloys etc.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B
2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,
A789 S31803/S2205 etc...
3. Copper:UNS12200/UNS14200/UNS70600,
CuNi70/30,CuNi 90/10
4. Titanium: B338 Gr 2

Fins Material

1. Aluminum Alloy
2. Copper.

1. Aluminum(Alu.1100,Alu.1060,Alu.6063)
2. Copper.



All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

1

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 1/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10,

1 1/2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

Please email us for more information.

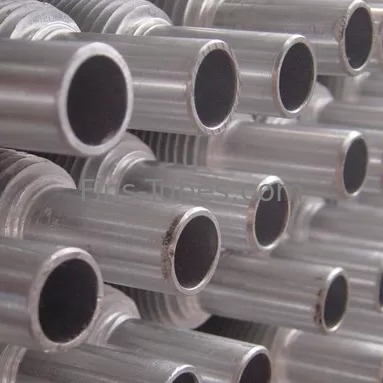

DELLOK Seamless Densities Segment Fins Alu1050 Extruded Fin Tube 0DELLOK Seamless Densities Segment Fins Alu1050 Extruded Fin Tube 1DELLOK Seamless Densities Segment Fins Alu1050 Extruded Fin Tube 2
