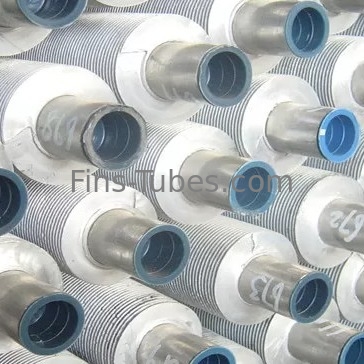

DELLOK Bimetallic High Stress A213 T22 EN10204 Extruded Aluminum Pipe
EN10204 Extruded Aluminum Pipe
,EN10204 Finned Tubular
,T22 Extruded Aluminum Pipe
Bimetallic High Stress A213 T22 EN10204 Extruded Aluminum Pipe
A213 T22 , OD1'' X 54' Length X 10FPI X Alu 1100 Fins , extruded high fin cooling tube
Tube Type:Seamless (Cold Drawn)
Ends:Plain ends or bevel ends.
Surface protection:black painting,anti-rust oil or varnish.
|
Quick Details |
|||
|
Condition: |
New |
Brand Name: |
YONGHUI |
|
Place of Origin: |
China |
Tube OD : |
12mm min.~50.8mm(2'') max. |
|
Tube length : |
no limit |
Fin height : |
16 mm max. |
|
Fin pitch : |
1.5mm min. |
Extruded fins type: |
solid plain and serrated. |
|
Fin Thickness: |
appr. 0.4mm/0.5mm/0.6mm |
Production Capacity: |
Daily capacity up to 15,000 meters. |
|
Packing: |
Steel frame with plywoods or seaworthy wooden box. |
Marketing Type: |
New Production 2020 |
|
Warranty: |
1 Year |
After Warranty Service: |
Online support |
|
Machinery Test Report: |
Provided |
Certification: |
CE. ISO,EN10204. 3.1 Cert. |
|
After-sales Services: |
Video technical support, Online support |
Showroom Location: |
None |
|
Local Service Location: |
None |
|
|
Introduction:
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve. The fins are solid plain or serrated into 12, 16 or 24 segments or as your design. And both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle. All the goods shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating on surface. Besides, we provide Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).
Applications:
Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
The petroleum, chemical and petrochemical industries;
The food processing and refrigeration industries;
Natural gas treatment
|
All dimensions are in Inches and specification upon your requests. |
|||
|
Tube OD |
Fin Height |
Fin Thickness |
Fins per Pitch(Density) |
|
5/8 |
3/8,1/2 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11, 12 |
|
3/4 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11, 12 |
|
1 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11 |
|
1 1/4 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, |
|
1 1/2 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11 |
|
1 3/4 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10 |
|
2 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10 |
|
Please email us for more information. |
|||
Competitive Advantage:
-
We have more than 10,000 square meters workshop, including 10 extrusion finning machines, daily extrusion capacity up to 3,000 Meters.
-
The extrusion finning machines are designed and assembled by ourselves and we can offer you finning machines, extrusion muff sleeves and all accessories (extrusion finning disks) etc...
-
DR-extruded bimetallic fin tubes maximum operating temperature: 300 degree. The transfer coefficient remains steady.
-
DR-extruded bimetallic fin tubes have stronger fins than other mechanical fins, like L, LL, KL, and G, so it is much easier to clean.
-
In application of high stress and corrosive condiction, DR-extruded bimetallic fin tubes provides an excellent technical and economical savings in comparsion to a costlier single alloy tube, as the use of costlier material is reduced to the min.
