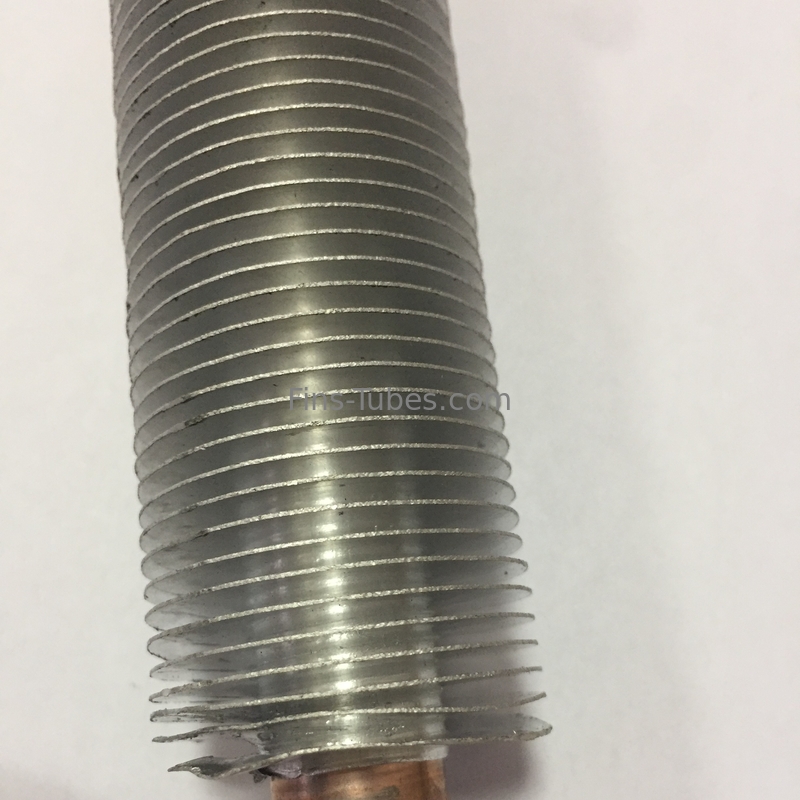

DELLOK Air Cooler Seamless Length 18m Bimetal TP304 Extruded Fin Tube

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK Air Cooler Seamless Length 18m Bimetal TP304 Extruded Fin Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Tube OD:: 12mm Min.~50.8mm(2'') Max.
Tube Length:: 18 Meters Max.
Fin Tube Type: DR-Extruded Fin Tube
Fin Height:: 16.5 Mm Max.
Fin Thickness:: Appr. 0.4mm/0.5mm/0.6mm
Fin Pitch:: 1.5mm Min.
High Light:

TP304 Extruded Fin Tube

,

18m Boiler Finned Tubes

,

Bimetal Extruded Fin Tube

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: DR
Payment & Shipping Terms
Packaging Details: (1) Steel frame case sealed by plywoods with each end capped; (2)Solid fumigated wooden box with each end capped.
Delivery Time: within 15days
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

Air Cooler Seamless Length 18m Bimetal TP304 Extruded Fin Tube



Product Details

Tube details:

Tube OD: 12mm min.~50.8mm(2'') max.

Tube Length: 18 meters max.

Fin Height: 16.5 mm max

Fin Thickness: appr. 0.4mm/0.5mm/0.6mm

Fin Pitch: 1.5mm min.

Production Capacity:

Daily capacity up to 3000 meters.

Extruded fins type:

solid plain and serrated.


Air cooler extruded bimetal A192 seamless boiler finned tubes
ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service
ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes
ASTM A179 / A179M : Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes



Introduction:

A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve. The fins are solid plain or serrated into 12, 16 or 24 segments or as your design. And both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle. All the goods shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating on surface. Besides, we provide Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).


Applications:
The common application fileds are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);

  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);

  3. The petroleum, chemical and petrochemical industries;

  4. The food processing and refrigeration industries;

  5. Natural gas treatment;

Specifications:
Extruded Bimetallic Finned Tube is combined with two different materials.

Items

General Materials

Popular ASTM Materials

Core Tube Material

Any metallic materials, as carbon steel, low-alloy steel,
stainless steel, brass, copper,
cooper-nickel alloys, aluminum bronze, nickel alloys etc.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B
2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,
A789 S31803/S2205 etc...
3. Copper:UNS12200/UNS14200/UNS70600,
CuNi70/30,CuNi 90/10
4. Titanium: B338 Gr 2

Fins Material

1. Aluminum Alloy
2. Copper.

1. Aluminum(Alu.1100,Alu.1060,Alu.6063)
2. Copper.



Our Service:

1. Inquiry-Professional quotation, or send inquiry item more details

2. Confirm the price, lead time, payment term etc

3. Proforma Invoice send or online

4. Make the samples according to your request, send you photos or samples, arrange the production

5. Send the production line photos Confirm the estimated delivery time again.

6. End Production-Mass production products photos and samples will send to you for approval.

7. Inform the tracking number and check the status for clients

8. Order can be say "finish" when you receive the goods and satisfy with them

9. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better

DELLOK Air Cooler Seamless Length 18m Bimetal TP304 Extruded Fin Tube 0DELLOK Air Cooler Seamless Length 18m Bimetal TP304 Extruded Fin Tube 1DELLOK Air Cooler Seamless Length 18m Bimetal TP304 Extruded Fin Tube 2
