DELLOK Seamless Copper Nickel Thickness 0.6mm Embedded Fin Tube

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK Seamless Copper Nickel Thickness 0.6mm Embedded Fin Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Fin Tube Type: Grooved Fin Tube, G-Fin Tube
Origin: China
Tube Length: 18,000mm Max.
Fin Height: 16.5 Mm Max.
Fin Thickness: Generally 0.4mm ~0.6mm
Fin Pitch: 2.1mm (12FPI) Min.
High Light:

0.6mm Embedded Fin Tube

,

0.4mm Copper Nickel Tube

,

0.5mm Embedded Fin Tube

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: Type G fin tube
Payment & Shipping Terms
Packaging Details: (1) Steel frame case sealed by plywoods with each end capped;(2) Solid fumigated wooden box with each end capped.
Delivery Time: Ex-work with 5 weeks after Order.
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

Seamless Copper Nickel Thickness 0.6mm Embedded Fin Tube



Quick Details
Condition: New Brand Name: YONGHUI
Place of Origin: China Material: Carbon, stainless, and alloy steels.
Fin Height: 16.5 mm max Fin Thickness: generally 0.4mm ~0.6mm
Fin Pitch: 2.1 mm (12FPI) min. Tube Length: 18,000mm max.
Tube OD: 50.8mm(2'') max. Production Capacity: Daily capacity up to 7,000 meters.
Packing: Steel frame with plywoods or seaworthy wooden box. Marketing Type: New Production 2020
Warranty: 1 Year After Warranty Service: Online support
Machinery Test Report: Provided Certification: CE. ISO,EN10204. 3.1 Cert.
After-sales Services: Video technical support, Online support Showroom Location: None
Local Service Location: None

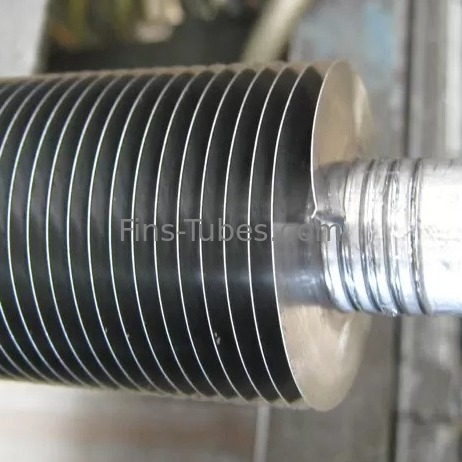

Embedded finned tubes with stainless steel seamless tube and aluminum 1100 fins



Introduction:

The aluminum fin strip is tension wound and placed into a groove cut into the tube. The depth of this tube is about 0.4mm, and all the goods are Zinc or Aluminum metalized applied by an electro spray arc system coating on surface. The goods will be delivered when tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of G-Fin Embedded Finned Tube. The desiccants are put into each package for continental transportation as well. Besides it applies to many areas such as Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants), High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids), The petroleum, chemical and petrochemical industries, The food processing and refrigeration industries, Natural gas treatment. And we provide the tube support box, clamp or spacer box (Materials: Aluminum, Zinc and Stainless Steel).



Acceptance criteria:

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions.



Specifications:

Grooved G type Finned Tubes are combined with two different materials.



Items

General Materials

Popular ASTM Materials

Core Tube Material

carbon steel, ow-alloy steel,

stainless steel, brass, copper,

cooper-nickel alloys,

aluminum bronze, nickel alloys.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,

A789 S31803/S2205 etc...

3. Copper:UNS12200/UNS14200/UNS70600,

CuNi70/30,CuNi 90/10

Fins Material

1. Aluminum

2. Copper.

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.



All dimensions are in Inches and specification upon your requests.
Tube OD Fin Height Fin Thickness Fins per Pitch(Density)
5/8 3/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
3/4 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
1 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
1 1/4 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
1 1/2 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12

Please email us for more information.

DELLOK Seamless Copper Nickel Thickness 0.6mm Embedded Fin Tube 0DELLOK Seamless Copper Nickel Thickness 0.6mm Embedded Fin Tube 1DELLOK Seamless Copper Nickel Thickness 0.6mm Embedded Fin Tube 2
