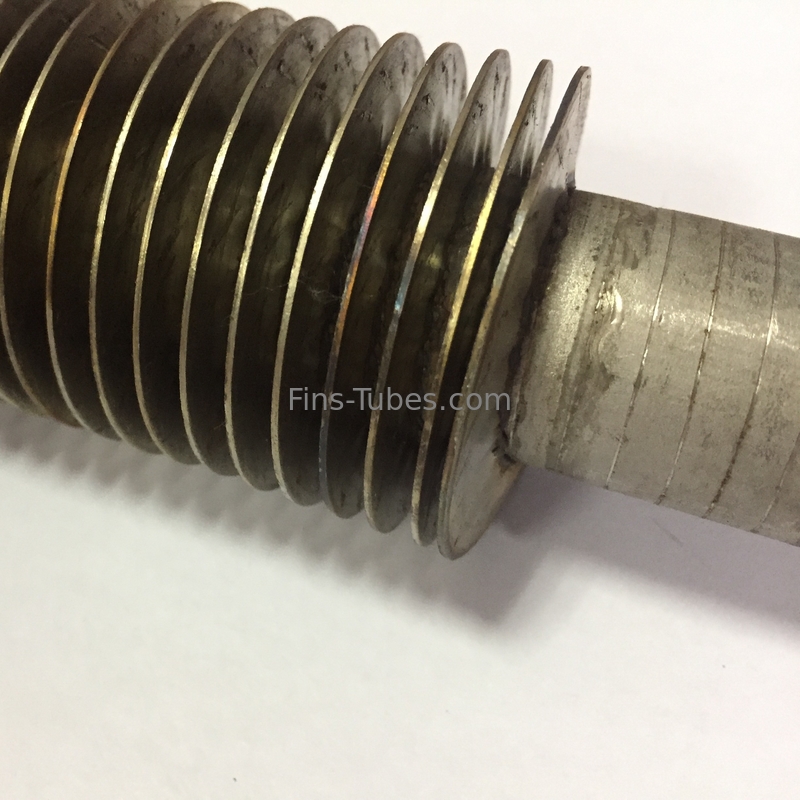

DELLOK EN10204 Heat Exchanger Fin Tube

Place of Origin:China
Brand Name:DELLOK
Certification:CE. ISO,EN10204. 3.1 Cert.
Model Number:LL TYPE
Minimum Order Quantity:N/A Contact us for details
Price:N/A Contact us for details
Payment Terms:L/C, T/T Contact us for details
Supply Ability:60000 meters month
Product Details
Highlight:

EN 10204 Heat Exchanger Fin Tube

,

EN 10204 L Type Fin Tube

,

50.8mm Heat Exchanger Fin Tube
Tube OD :: 50.8mm Max.
Tube Length :: No Limit.
Fin Height :: 16 Mm Max.
Fin Pitch :: 2.1 Mm (12FPI) Min.
Fin Tube Type:: LL Overlapped Type Fin Tube
Fin Thickness:: Generally 0.4mm ~0.6mm
Product Description

EN10204 Heat Exchanger Fin Tube



General specifications of L type fin tubes

Tube OD : 50.8mm max.
Tube Length : no limit.
Fin Height : 16 mm max.
Fin Thickness: generally 0.4mm ~0.6mm
Fin Pitch : 2.1 mm (12FPI) min

General L-type production capacity

Finning Facility: 7 finning machines;
Daily capacity up to 5000 meters;
Fin type: Solid plain



EN10204 Type 3.2 Certified required overlapped Type LL Cooling aluminum fin tube

Quick Detail:

Introduction:

The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface. The accessories with this fin are Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel). It suits various area such as The common application fields area, Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants), High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids), The petroleum, chemical and petrochemical industries, The food processing and refrigeration industries, Natural gas treatment;



Packing:

Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating. The desiccants are put into each package for continental transportation as well.



Acceptance Criteria:

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).



Specifications:

LL Type Tension Wound Tube is combined with two different materials.



Items

General Materials

Popular ASTM Materials

Core Tube Material

Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L

3. Copper:UNS12200/UNS14200/UNS70600,

CuNi70/30,CuNi 90/10

4. Titanium: B338 Gr 2

Fins Material

Aluminum & Copper & Steel

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.

3. Steel



All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Pease email us for more information.
