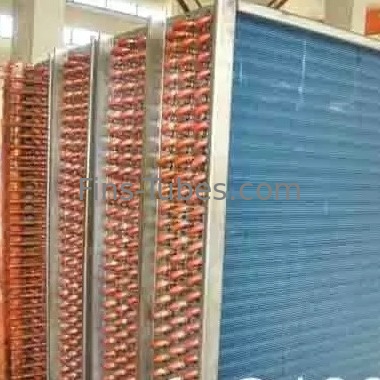

API Standard 661 Plain H14 Aluminum Tube Fin Heat Exchanger
aluminum 1060 H14 fins, 2'' finned tube OD, Type L aluminum finned tubes
Introduction:
The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface. The accessories with this fin are Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel). It suits various area such as The common application fields area, Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants), High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids), The petroleum, chemical and petrochemical industries, The food processing and refrigeration industries, Natural gas treatment;
Packing:
Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating. The desiccants are put into each package for continental transportation as well.
Acceptance Criteria:
API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).
|
General L-type production capacity |
General specifications of L type fin tubes |
|
Finning Facility: 5 finning machines; Daily capacity up to 5000 meters; Fin type: Solid plain |
Tube OD: 50.8mm max. Tube Length: no limit Fin Height: 16 mm max. Fin Thickness: generally 0.4mm ~0.6mm Fin Pitch: 2.1 mm (12FPI) min. |
Specifications:
One Tension Wound Tube is combined with two different materials.
|
Items |
General Materials |
Popular Materials |
|
Core Tube Material |
Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys. |
1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B 2. Stainless Steel: TP304/304L,TP316/TP316L 3. Copper:UNS12200/UNS14200/UNS70600, CuNi70/30,CuNi 90/10 4. Titanium: B338 Gr 2 |
|
Fins Material |
Aluminum & Copper & Steel |
1. Aluminum(Alu.1100,Alu.1060) 2. Copper. 3. Steel |
|
All dimensions are in Inches and specification upon your requests. |
|||
|
Tube OD |
Fin Height |
Fin Thickness |
Fins per Pitch |
|
5/8 |
3/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
3/4 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
1 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
1 1/4 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
1 1/2 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
Pease email us for more information. |
|||
