DELLOK Condenser Copper Aluminum Alu1060 16mm Square Fin Tube

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK Condenser Copper Aluminum Alu1060 16mm Square Fin Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Tube OD: 16mm Min~50.8mm Max.
Tube Length: 18,000mm Max.
Fins Material: Aluminum & Copper.
Fin Height: 16.5 Mm Max.
Fin Thickness: Generally 0.4mm ~0.6mm
Fin Pitch: 2.1 Mm (12FPI) Min.
High Light:

16mm Square Fin Tube

,

Alu 1060 Aluminum Finned Tubes

,

50.8mm Condenser Tube

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: KL/KLM TYPE
Payment & Shipping Terms
Packaging Details: (1)Steel frame case sealed by plywoods with each end capped; (2)Solid fumigated wooden box with each end of capped.
Delivery Time: Ex-work with 1 month on receipt of order.
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

Condenser Copper Aluminum Alu1060 16mm Square Fin Tube



C12200 / TP2 Cooper Tube , OD15.88X1.24WT Tension Wrapped L Type Cooper Condenser Tube



ASTM B111/ B111M : Standard Specification for Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock



Introduction:

The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface. The accessories with this fin are Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel).



Quick Details
Condition: New Brand Name: YONGHUI
Place of Origin: China Material: Aluminum & Copper.
Fin Height 16.5 mm max. Fin Pitch 2.1 mm (12FPI) min.
Fin Thickness generally 0.4mm ~0.6mm Tube Length: 18,000mm max.
Tube OD: 16mm Min~50.8mm max. Production Capacity: Daily capacity up to 5000 meters;
Fin type: Solid plain Marketing Type: New Production 2020
Warranty: 1 Year After Warranty Service: Online support
Machinery Test Report: Provided Certification: CE. ISO,EN10204. 3.1 Cert.
After-sales Services: Video technical support, Online support Packing: Steel frame with plywoods or seaworthy wooden box.
Local Service Location: None Showroom Location: None



Packing:

Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating. The desiccants are put into each package for continental transportation as well.



Acceptance Criteria:

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).

Applications:

The common application fields are:

Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);

High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);

The petroleum, chemical and petrochemical industries;

The food processing and refrigeration industries;

Natural gas treatment;



Specifications:

L Type Tension Wound Tube is combined with two different materials.



Items General Materials Popular ASTM Materials
Core Tube Material Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L

3. Copper:UNS12200/UNS14200/UNS70600,

CuNi70/30,CuNi 90/10

4. Titanium: B338 Gr 2

Fins Material Aluminum & Copper.

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.



All dimensions are in Inches and specification upon your requests.
Tube OD Fin Height Fin Thickness Fins per Pitch
5/8 3/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
3/4 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
1 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
1 1/4 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
1 1/2 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
Pease email us for more information.



Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 7 finning machines, daily production capacity up to 5,000 meters.
  2. The finning machines are designed and assembled by ourselves (Reliance) and we can offer you finning machines and all accessories etc...
  3. This method of manufacturing L tension type enables us to place the finning on a very thin-walled tube with is particularly desirable when using high value alloys (titanium, stainless, copper, nickel).The tube can withstand a temperature of up to 150°C without the risk of atmospheric corrosion or thermal stress.
  4. L TYPE fin tubes provide contact area between the fin strip and the tubes surface and protect the tube wall from atmosphere corrosion. This L TYPE design is much economical than LL, KL, even G-embedded type.

Our Service:

1. Inquiry-Professional quotation, or send inquiry item more details

2. Confirm the price, lead time, payment term etc

3. Proforma Invoice send or online

4. Make the samples according to your request, send you photos or samples, arrange the production

5. Send the production line photos Confirm the estimated delivery time again.

6. End Production-Mass production products photos and samples will send to you for approval.

7. Inform the tracking number and check the status for clients

8. Order can be say "finish" when you receive the goods and satisfy with them

9. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better

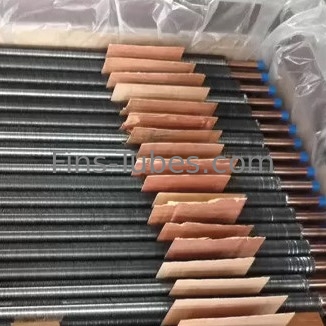

DELLOK Condenser Copper Aluminum Alu1060 16mm Square Fin Tube 0DELLOK Condenser Copper Aluminum Alu1060 16mm Square Fin Tube 1DELLOK Condenser Copper Aluminum Alu1060 16mm Square Fin Tube 2
