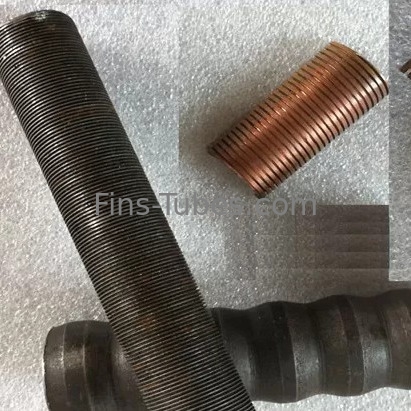

Internal Rib Condenser Seamless DIN1629 Low Carbon Steel Tube
CuNi70/30 , CuNi90/10 , 26FPI With Internal Rib Condenser Low Fin Tubes
Introduction:
The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube. We call it “N” fin type. All integral low fin tube quality is assured by hydrostatic or pneumatic tests, eddy current tests & MARCO tests in order to verify design specifications. The acceptance certification include WOLVERINE / HPT / GEWA-K & GEWA-KS
Delivery:
We can provide the integral low fin tubes with un-finned section gaps( 5mm Min.) in the middle of core tube OR bent with designed Bend Radius. The desiccants are put into the each package for continental transportation.
Applications:
The Integral Low Finned Tubes find the preference in the following industrial sectors:
| Product Details | |
| Material: | Carbon Steel,Stainless Steel, Brass,copper Etc… |
| Fin details: | Thickness: appr. 0.3mm |
| Height: 1.2 mm ~2.77mm | |
| Length: 18 meters max. | |
| Pitch: 30 FPI /28 FPI/ 26 FPI/ 36 FPI /43 FPI | |
| OD: 12.7 mm~25.4mm | |
More Carbon Steel Tube Materials Sheet We're Supplying:
| Chinese Standard | Steel Grade/ No. | American Standard | Steel Grade/ No. |
| GB5310 |
20G,15MoG,12CrMoG, 12Cr2MoG,15CrMoG, 12Cr1MoVG, |
ASTM A106 | GR. A,B,C |
| GB9948 | 10,20,12CrMo,15CMo | ASTM A53 | GR.A,B |
| GB3087 | 10,20 | ASTM A192 | |
| ASTM A179 | |||
| ASTM A210 | A-1,C | ||
| ASTM A333 | GR.1,GR3,GR6 | ||
| ASTM A334 | GR.1,GR3,GR6 | ||
| ASTM A209 | T1, Ta, Tb | ||
| German standard | Steel Grade/ No. | Japanese standard | Steel Grade/ No. |
| DIN17175 | ST35.8, ST45.8 | JIS G3454 | STPG370,STPG410 |
| DIN1629 | ST37.0, ST44.0, ST52.0 | JIS G3461 | STB340, STB410, STB440 |
| British Standard | Steel Grade/ No. | European standard | Steel Grade/ No. |
| BS3059-Ⅰ | 320 | EN10216-1 | P195TR1/TR2,P235TR1/TR2, P265TR1/TR2 |
| BS3059-ⅡS1/S2; TC1/TC2 | 360,440, | EN10216-2 TC1,TC2 |
195GH,P235GH, |
Data sheet of Low Fin Tubes
| Plain tube (mm) | Finned section dimensions (mm) | Ratio | De | |||
| D×t | Tp | dd | dr | di | η | mm |
| 19×2 | 0.8 | 18.8 | 17 | 134 | 2.8 | 17.9 |
| 19×2 | 1 | 18.8 | 16.8 | 13.4 | 2.5 | 17.8 |
| 19×2 | 1.25 | 18.8 | 16.6 | 13 | 2.2 | 17.8 |
| 19×2 | 1.5 | 18.8 | 16.6 | 13 | 2 | 17.7 |
| 19×2 | 2 | 18.8 | 16.4 | 13 | 1.7 | 17.5 |
| 25×2.5 | 0.8 | 24.8 | 23 | 18.8 | 2.8 | 23.9 |
| 25×2.5 | 1 | 24.8 | 22.6 | 18.8 | 2.75 | 23.7 |
| 25×2.5 | 1.25 | 24.8 | 22.3 | 18 | 2.5 | 23.6 |
| 25×2.5 | 1.5 | 24.8 | 22.3 | 18 | 2.2 | 23.5 |
| 25×2.5 | 2 | 24.8 | 22 | 18 | 1.8 | 23.4 |
| 25×2.5 | 2.5 | 24.8 | 22 | 18 | 1.6 | 23.3 |
| D------Outside diameter of plain end section Dof----Diameter of top fins Dr-----Root diameter of finned section Di-----Inside diameter of finned section T------Wall thickness of plain end section Tp-----Fin pitch De----Equivalent diameter of finned tube L------Plain tube end length |
||||||
| Please email us for more information. | ||||||
