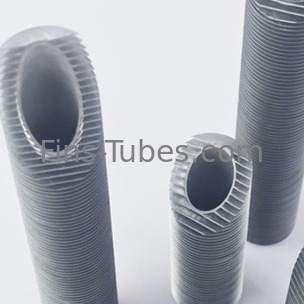

Ventilation System Carbon Steel A334 Gr3 Low Fin Tube
26FPI / 1024 FPM / 0.976mm , A334 Gr 1 / 3 / 6 Carbon Steel Threaded Fin Tubes
ASTM A334 / A334M: Seamless and Welded Carbon and Alloy-Steel Tubes for Low-Temperature Service
Description:
Manufacturing process: The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube. We call it “N” fin type.
Delivery Range of Low Fin Tubes
We can provide the integral low fin tubes with un-finned section gaps( 5mm Min.) in the middle of core tube OR bent with designed Bend Radius.
Quality Test:
The integral low fin tube quality is assured by hydrostatic or pneumatic tests, eddy current tests & MARCO tests in order to verify design specifications.
Acceptance Ceritia:
WOLVERINE / HPT / GEWA-K & GEWA-KS
Delivery Condition:
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish.
The desiccants are put into the each package for continental transportation.
Applications:
The Integral Low Finned Tubes find the preference in the following industrial sectors:
Heating systems
Ventilation systems
Refrigeration and climate control systems
Mechanical engineering
Automotive manufacturing
Chemicals and pertrochemical and power plant technology
More Carbon Steel Tube Materials Sheet We're Supplying:
|
Chinese Standard |
Steel Grade/ No. |
American Standard |
Steel Grade/ No. |
|
GB5310 |
20G,15MoG,12CrMoG, 12Cr2MoG,15CrMoG, 12Cr1MoVG, |
ASTM A106 |
GR. A,B,C |
|
GB9948 |
10,20,12CrMo,15CMo |
ASTM A53 |
GR.A,B |
|
GB3087 |
10,20 |
ASTM A192 |
|
|
|
|
ASTM A179 |
|
|
|
|
ASTM A210 |
A-1,C |
|
|
|
ASTM A333 |
GR.1,GR3,GR6 |
|
|
|
ASTM A334 |
GR.1,GR3,GR6 |
|
|
|
ASTM A209 |
T1, Ta, Tb |
|
German standard |
Steel Grade/ No. |
Japanese standard |
Steel Grade/ No. |
|
DIN17175 |
ST35.8, ST45.8 |
JIS G3454 |
STPG370,STPG410 |
|
DIN1629 |
ST37.0, ST44.0, ST52.0 |
JIS G3461 |
STB340, STB410, STB440 |
|
British Standard |
Steel Grade/ No. |
European standard |
Steel Grade/ No. |
|
BS3059-Ⅰ |
320 |
EN10216-1 |
P195TR1/TR2,P235TR1/TR2, |
|
BS3059-ⅡS1/S2; TC1/TC2 |
360,440, |
EN10216-2 |
195GH,P235GH, |
Data sheet of Low Fin Tubes
|
Plain tube (mm) |
Finned section dimensions (mm) |
Ratio |
De |
|||
|
D×t |
Tp |
dd |
dr |
di |
η |
mm |
|
19×2 |
0.8 |
18.8 |
17 |
134 |
2.8 |
17.9 |
|
19×2 |
1 |
18.8 |
16.8 |
13.4 |
2.5 |
17.8 |
|
19×2 |
1.25 |
18.8 |
16.6 |
13 |
2.2 |
17.8 |
|
19×2 |
1.5 |
18.8 |
16.6 |
13 |
2 |
17.7 |
|
19×2 |
2 |
18.8 |
16.4 |
13 |
1.7 |
17.5 |
|
25×2.5 |
0.8 |
24.8 |
23 |
18.8 |
2.8 |
23.9 |
|
25×2.5 |
1 |
24.8 |
22.6 |
18.8 |
2.75 |
23.7 |
|
25×2.5 |
1.25 |
24.8 |
22.3 |
18 |
2.5 |
23.6 |
|
25×2.5 |
1.5 |
24.8 |
22.3 |
18 |
2.2 |
23.5 |
|
25×2.5 |
2 |
24.8 |
22 |
18 |
1.8 |
23.4 |
|
25×2.5 |
2.5 |
24.8 |
22 |
18 |
1.6 |
23.3 |
|
D------Outside diameter of plain end section |
||||||
|
Please email us for more information. |
||||||
Our Service:
Inquiry-Professional quotation, or send inquiry item more details, we start contact more details
Confirm the price, lead time, payment term etc
Our sales send the Proforma Invoice with our seal, or you order online to us
Customer make the payment for deposit and send us Bank receipt
Initial Production Stage-Inform the clients that we have got the payment, and will make the samples according to your request, send you photos or samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time
Middle Production-send photos to show the production line which you can see you products. Confirm the estimated delivery time again.
End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party inspection
Clients make payment for balance and ship goods, inform the tracking number and check the status for clients
Order can be say "finish" when you receive the goods and satisfy with them
Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better
