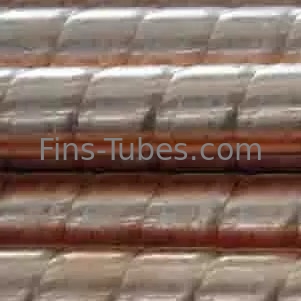

TP304 TP316L Stainless Steel Length 18m Low Fin Tube
TP304 / TP304L , TP316 / TP316L , Austenitic Stainless Steel Corrugated Low Fin Tube
| Product Details | |
| Fin details: | Thickness: appr. 0.3mm |
| Height: 1.2 mm ~2.77mm | |
| Length: No Limit | |
| Pitch: 30 FPI /28 FPI/ 26 FPI/ 36 FPI /43 FPI | |
| OD: 12.7 mm~25.4mm | |
Introduction:
The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube. We call it “N” fin type. All integral low fin tube quality is assured by hydrostatic or pneumatic tests, eddy current tests & MARCO tests in order to verify design specifications. The acceptance certification include WOLVERINE / HPT / GEWA-K & GEWA-KS
Delivery:
We can provide the integral low fin tubes with un-finned section gaps( 5mm Min.) in the middle of core tube OR bent with designed Bend Radius. The desiccants are put into the each package for continental transportation.
Applications:
It has many uses such as heating systems, Ventilation systems, Refrigeration and climate control systems, Mechanical engineering, Automotive manufacturing and Chemicals and pertrochemical and power plant technology
Tube Materials:
ASTM A213 / A213M :Seamless Ferritic & Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A312/ A312M : Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A269/ A269M :Seamless and Welded Austenitic Stainless Steel Tubing for General Service
| Plain tube (mm) | Finned section dimensions (mm) | Ratio | De | |||
| D×t | Tp | dd | dr | di | η | mm |
| 19×2 | 0.8 | 18.8 | 17 | 134 | 2.8 | 17.9 |
| 19×2 | 1 | 18.8 | 16.8 | 13.4 | 2.5 | 17.8 |
| 19×2 | 1.25 | 18.8 | 16.6 | 13 | 2.2 | 17.8 |
| 19×2 | 1.5 | 18.8 | 16.6 | 13 | 2 | 17.7 |
| 19×2 | 2 | 18.8 | 16.4 | 13 | 1.7 | 17.5 |
| 25×2.5 | 0.8 | 24.8 | 23 | 18.8 | 2.8 | 23.9 |
| 25×2.5 | 1 | 24.8 | 22.6 | 18.8 | 2.75 | 23.7 |
| 25×2.5 | 1.25 | 24.8 | 22.3 | 18 | 2.5 | 23.6 |
| 25×2.5 | 1.5 | 24.8 | 22.3 | 18 | 2.2 | 23.5 |
| 25×2.5 | 2 | 24.8 | 22 | 18 | 1.8 | 23.4 |
| 25×2.5 | 2.5 | 24.8 | 22 | 18 | 1.6 | 23.3 |
| D------Outside diameter of plain end section Dof----Diameter of top fins Dr-----Root diameter of finned section Di-----Inside diameter of finned section T------Wall thickness of plain end section Tp-----Fin pitch De----Equivalent diameter of finned tube L------Plain tube end length |
||||||
| Please email us for more information. | ||||||
