DELLOK HRSG Boiler Seamless Carbon Steel SA192 Welded Fin Tubes

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK HRSG Boiler Seamless Carbon Steel SA192 Welded Fin Tubes
Features Gallery Product Description Request A Quote
Features
Specifications
Fin Tube Type: High Frequency Welded Fin Tube Or HF Welding Fin Tube
Tube OD:: 16mm, 19mm Min.
Tube Length:: 18 Meters Max.
Fin Height:: 26 Mm Max.
Fin Thickness:: 0.8mm Min
Fin Pitch:: Min. 4 Mm For Solid Fins & 3.3mm For Serrated Fins.
High Light:

OD 16mm Welded Fin Tubes

,

EN10204 Carbon Steel Tube

,

EN10204 Welded Fin Tubes

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: HFW
Payment & Shipping Terms
Packaging Details: (1) Waterproof steel frame bundle package;(2)Steel frame case sealed by plywoods with each end capped.
Delivery Time: Ex-work within 1 month on recepit of order.
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

HRSG Boiler Seamless Carbon Steel SA192 Welded Fin Tubes



SA192 Carbon Steel Tube , Welded Helical Steel Fin Tube for HRSG Boiler



Application: Seamless Carbon Steel Boiler Tubes For High-Pressure Service.



Description:

General Manufacturing Process: The fin strip is welded continuously and spirally wound onto a polished bare tube. And the tube and fins are bonded together by using high frequency resistance welding technique.

We produce both solid plain and serrated helical welded steel finned tube. And also, all spiral welding tubes could be bent in the middle or at the end of fin tubes, we call it Hairpin tubes.



 Additional Services for Solid helical welded fin tubes:

  1. High frequency welding machine output power supply: 200KW or 300KW

  2. The High Frequency Resistance Welded Spiral Fin Tube quality is assured by hydrostatic or pneumatic tests and tensile tests in order to verify the mechanical bonding between bare tube and fin materials.

  3. Acceptance criteria: INTERNATIONAL STANDARD FOR DIMENSIONS, TOLERANCES, AND TESTS OF HIGH FREQUENCY RESISTANCE WELDED FINS or the delivery conditions (TDC) of clients.

  4. Visual check: un-welded parts of fin, fin damage after fining, copper pollution, tears, wrap etc…

  5. Dimensional check: fin height, fin spacing, fin inclination, fin corrugation, length of finned & un-finned portion etc…

  6. Bending check: ovality, thickness and area reduction.

  7. Coating: outside-Red oxide zinc phosphate primer and inside volatile corrosion inhibitor (VCI) in water soluble tablet form.

  8. Fin end finish: Bevel(30~35degeree)

  9. Delivery condition: Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of helical welded tubes. The desiccants are put into the each package for continental transportation as well.

  10. Documentation shall include QAP, WPS, PQR& WPQ, raw materials mill certificates, inspection and test samples results and warranty certificate of manufacturer.

Applications:

The High Frequency Resistance Welded Helical Fin Tubes are widely applied in fired heaters, heat exchanger, boilers, economizers, pre-heaters, coolers, heat pipes, heaters etc….



Quick Detail:

High Frequency Resistance Welded Helical Steel Fin Tubes is widely used in the recovery of waste heat from boiler flue gas.

General HF welding production capacity

General specifications of HF welding fin tube

Welding Facility: 4 finning machines;

Daily production capacity up to 40 tons;

HFW Fin type: solid plain and serrated.

Tube OD: 19mm min.

Tube Length: 18 meters max.

Fin Height: 26 mm max.

Fin Thickness: 0.8mm min

Fin Pitch: min. 4 mm for solid fins & 3.3mm for serrated fins.





Dimensions Data Sheet We Can Supply.

Solid Helical Steel Fin Tubes Fabrication Range

Solid fins(mm)

Serrated fins

Min

Max

Min

Max

Tube OD(mm)

19

219

16

210

Fin Height(mm)

8

26

8

32

Fin Thickness(mm)

0.8

3

1

1.6

Fins Density(mm)

4(250FPM)

20

3.3(303FPM)

20

Tube Length(mm)

N/A

18000

N/A

18000

Additional supply range :

(1) Tube swaging process for joint of 2 tubes.

(2) Spacer rings (material: steel) are available.

(3) One side is solid plain fins and the other is serrated fins, 2 fin types on same tube.



Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 4 ERW high Frequency welding fining lines, daily production capacity around 40 Tons;

  2. Our quality assurance plan for High Frequency Welding Spiral Steel Tubes. (2.1) Raw material control for both plain tubes and fins. (2.2) In process control with reports,as WPS, PQR&WPQ; weld deposition efficiency test before fabrication, Non-destructive test and tensile test etc. (2.3) Final inspection control with reports (Visual and dimensional check etc…).

  3. The High Frequency Resistance Welded Fin Tube is integrally extended for the max surface area to achieve efficiency. The heat transfer ratio of high frequency welding fin tube is about 8~9 times higher than other plain tubes.

  4. This Welded Helical Fin Tubes is a singular integral unit, eliminating heat contact resistance and losses. Generally tube side temperature up to 800 degree for stainess steel fins; Low carbon steels, withstanding up to 475 degree is the most common choice.

Our Service:

1. Inquiry-Professional quotation, or send inquiry item more details

2. Confirm the price, lead time, payment term etc

3. Proforma Invoice send or online

4. Make the samples according to your request, send you photos or samples, arrange the production

5. Send the production line photos Confirm the estimated delivery time again.

6. End Production-Mass production products photos and samples will send to you for approval.

7. Inform the tracking number and check the status for clients

8. Order can be say "finish" when you receive the goods and satisfy with them

9. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better

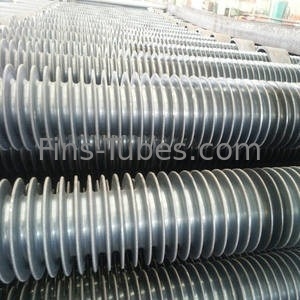

DELLOK HRSG Boiler Seamless Carbon Steel SA192 Welded Fin Tubes 0DELLOK HRSG Boiler Seamless Carbon Steel SA192 Welded Fin Tubes 1DELLOK HRSG Boiler Seamless Carbon Steel SA192 Welded Fin Tubes 2
