DELLOK Spiral Evaporator Carbon Steel SA210 U Bend Tube Exhaust Pipe

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK Spiral Evaporator Carbon Steel SA210 U Bend Tube Exhaust Pipe
Features Gallery Product Description Request A Quote
Features
Specifications
Tube OD :: 19mm Min.
Tube Length :: 18 Meters Max.
Fin Height :: 32 Mm Max.
Fins Type: Solid/Plain, Serrated, Radia
Fin Thickness :: 0.8mm Min
Fin Pitch :: Min. 4 Mm For Solid Fins & 3.3mm For Serrated Fins.
High Light:

SA210 U Bend Exhaust Pipe

,

18m U Bend Pipe

,

SA210 Welded Steel Pipes

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: HFW
Payment & Shipping Terms
Packaging Details: (1) Waterproof steel frame bundle package;(2)Steel frame case sealed by plywoods with each end capped.
Delivery Time: Ex-work within 1 month on recepit of order.
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

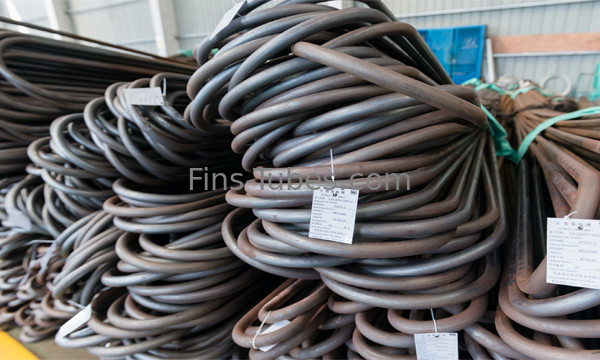

Spiral Evaporator Carbon Steel SA210 U Bend Exhaust Pipe



Product Details
Material: Carbon Steel , Alloy Steel, Heat Resistant Steel,
Stainless Steel etc.
Tube details: Tube OD: 19mm min.
Tube Length: 18 meters max.
Fin Height: 32 mm max.
Fin Thickness: 0.8mm min
Fin Pitch: min. 4 mm for solid fins & 3.3mm for serrated fins.
Production Capacity: Daily production capacity up to 40 tons;
HFW Fin type: solid plain and serrated.





U Bent Welded Spiral Evaporator Tube , SA210 Gr. C SMLS Carbon Steel Tube



Detail:

High Frequency Resistance Welded Helical Steel Fin Tubes is widely used in the recovery of waste heat from boiler flue gas.



Introduction:
High Frequency Resistance Welded Helical Steel Fin Tubes is widely used in the recovery of waste heat from boiler flue gas.The fin strip is welded continuously and spirally wound onto a polished bare tube. And the tube and fins are bonded together by using high frequency resistance welding technique. All of them are outside-Red oxide zinc phosphate primer and inside volatile corrosion inhibitor (VCI) in water soluble tablet form. Its suits various area such as The High Frequency Resistance Welded Helical Fin Tubes are widely applied in fired heaters, heat exchanger, boilers, economizers, pre-heaters, coolers, heat pipes, heaters etc….

We produce both solid plain and serrated helical welded steel finned tube. And also, all spiral welding tubes could be bent in the middle or at the end of fin tubes, we call it Hairpin tubes.



Check:
Visual check:
Un-welded parts of fin, fin damage after fining, copper pollution, tears, wrap etc…
Dimensional check:
Fin height, fin spacing, fin inclination, fin corrugation, length of finned & un-finned portion etc…
Bending check:
Ovality, thickness and area reduction.



Tube End Finish:
Bevel @ (30°~35°)

Bevel Root Size
0.5mm~1.5mm

Delivery condition
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of helical welded tubes.

Documentation:
It shall include QAP, WPS, PQR& WPQ, raw materials mill certificates, inspection and test samples results and warranty certificate of manufacturer.



Specifications:
A wide range of fin and tube materials could be combinations are available.



Items General Materials Popular ASTM Materials
Core Tube Material

Carbon Steel , Alloy Steel, Heat Resistant Steel,

Stainless Steel etc.

10#,20#,15CrMo,Cr5Mo,Cr9Mo,1Cr18Ni9Ti,0Cr18Ni9, 00Cr17Ni14Mo2,SA106B,SA106C, SA192, SA179,

SA178,SA214, SA210-A1, SA210-C,TP304/304L/304H, TP409/410,TP316/316L,TP321/321L,TP347H,T11,T22,T91,etc.

SA210 Gr. C SMLS

Fins Material

Carbon Steel , Alloy Steel, Heat Resistant Steel,

Stainless Steel etc.

Q235-BF,08F,08AL, 1Cr18Ni9Ti, 0Cr13, 1Cr13, 0Cr18Ni9, 09CrCuSb, CS,A1008-B,SPHC, SPCC, TP304/304L,TP316/316L,TP321/321L,etc.



Dimensions Data Sheet We Can Supply.

Solid Helical Steel Fin Tubes Fabrication Range Solid fins(mm) Serrated fins
Min Max Min Max
Tube OD(mm) 19 219 19 219
Fin Height(mm) 8 26 8 32
Fin Thickness(mm) 0.8 2.8 1 1.6
Fins Density(mm) 4(250FPM) 20 3.3(303FPM) 20
Tube Length(mm) N/A 18000 N/A 18000

Additional supply range :

(1) Tube swaging process for joint of 2 tubes.

(2) Spacer rings (material: steel) are available.

(3) One side is solid plain fins and the other is serrated fins, 2 fin types on same tube.



Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 4 ERW high Frequency welding fining lines, daily production capacity around 40 Tons;
  2. Our quality assurance plan for High Frequency Welding Spiral Steel Tubes. (2.1) Raw material control for both plain tubes and fins. (2.2) In process control with reports,as WPS, PQR&WPQ; weld deposition efficiency test before fabrication, Non-destructive test and tensile test etc. (2.3) Final inspection control with reports (Visual and dimensional check etc…).
  3. The High Frequency Resistance Welded Fin Tube is integrally extended for the max surface area to achieve efficiency. The heat transfer ratio of high frequency welding fin tube is about 8~9 times higher than other plain tubes.
  4. This Welded Helical Fin Tubes is a singular integral unit, eliminating heat contact resistance and losses. Generally tube side temperature up to 800 degree for stainess steel fins; Low carbon steels, withstanding up to 475 degree is the most common choice.

Our Service:

1. Inquiry-Professional quotation, or send inquiry item more details

2. Confirm the price, lead time, payment term etc

3. Proforma Invoice send or online

4. Make the samples according to your request, send you photos or samples, arrange the production

5. Send the production line photos Confirm the estimated delivery time again.

6. End Production-Mass production products photos and samples will send to you for approval.

7. Inform the tracking number and check the status for clients

8. Order can be say "finish" when you receive the goods and satisfy with them

9. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better
