DELLOK 19mm Heat Exchanger Fin Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Tube OD:: 19mm Min.
HFW Fin Type: Solid Plain And Serrated
Core Tube Material: Carbon Steel
Alloy Steel: Heat Resistant Steel, Stainless Steel Etc.
Tube Length:: 18 Meters Max.
Fin Height:: 32 Mm Max.
High Light:

19mm Heat Exchanger Fin Tube

,

19mm Serrated Fin tube

,

TP304 Heat Exchanger Fin Tube

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: HFW
Payment & Shipping Terms
Packaging Details: (1) Waterproof steel frame bundle package;(2)Steel frame case sealed by plywoods with each end capped.
Delivery Time: Ex-work within 1 month on recepit of order.
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

19mm Heat Exchanger Fin Tube



SS409/SS410 of fin materials are welded onto TP304 /TP304L, spiral fin tube heater , solid & serrated fins

ASTM A240/A240M : Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications
Quick Detail:
High Frequency Resistance Welded Helical Steel Fin Tubes is widely used in the recovery of waste heat from boiler flue gas.

General HF welding production capacity

General specifications of HF welding fin tube

Welding Facility: 4 finning machines;
Daily production capacity up to 40 tons;
HFW Fin type: solid plain and serrated.

Tube OD: 19mm min.
Tube Length: 18 meters max.
Fin Height: 32 mm max.
Fin Thickness: 0.8mm min
Fin Pitch: min. 4 mm for solid fins & 3.3mm for serrated fins.


Description:
General Manufacturing Process: The fin strip is welded continuously and spirally wound onto a polished bare tube. And the tube and fins are bonded together by using high frequency resistance welding technique.
We produce both solid plain and serrated helical welded steel finned tube. And also, all spiral welding tubes could be bent in the middle or at the end of fin tubes, we call it Hairpin tubes.
Applications:
The High Frequency Resistance Welded Helical Fin Tubes are widely applied in fired heaters, heat exchanger, boilers, economizers, pre-heaters, coolers, heat pipes, heaters etc….
Specifications:
A wide range of fin and tube materials could be combinations are available.

Items

General Materials

Popular ASTM Materials

Core Tube Material

Carbon Steel , Alloy Steel, Heat Resistant Steel,
Stainless Steel etc.

10#,20#,15CrMo,Cr5Mo,Cr9Mo,1Cr18Ni9Ti,0Cr18Ni9, 00Cr17Ni14Mo2,SA106B,SA106C, SA192, SA179,
SA178,SA214, SA210-A1, SA210-C,TP304/304L/304H, TP409/410,TP316/316L,TP321/321L,TP347H,T11,T22,T91,etc.

Fins Material

Carbon Steel , Alloy Steel, Heat Resistant Steel,
Stainless Steel etc.

Q235-BF,08F,08AL, 1Cr18Ni9Ti, 0Cr13, 1Cr13, 0Cr18Ni9, 09CrCuSb, CS,A1008-B,SPHC, SPCC, TP304/304L,TP316/316L,TP321/321L,etc.


Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 4 ERW high Frequency welding fining lines, daily production capacity around 40 Tons;

  2. Our quality assurance plan for High Frequency Welding Spiral Steel Tubes. (2.1) Raw material control for both plain tubes and fins. (2.2) In process control with reports,as WPS, PQR&WPQ; weld deposition efficiency test before fabrication, Non-destructive test and tensile test etc. (2.3) Final inspection control with reports (Visual and dimensional check etc…).

  3. The High Frequency Resistance Welded Fin Tube is integrally extended for the max surface area to achieve efficiency. The heat transfer ratio of high frequency welding fin tube is about 8~9 times higher than other plain tubes.

  4. This Welded Helical Fin Tubes is a singular integral unit, eliminating heat contact resistance and losses. Generally tube side temperature up to 800 degree for stainess steel fins; Low carbon steels, withstanding up to 475 degree is the most common choice.

Additional Services for Solid helical welded fin tubes:

  1. High frequency welding machine output power supply: 200KW or 300KW

  2. The High Frequency Resistance Welded Spiral Fin Tube quality is assured by hydrostatic or pneumatic tests and tensile tests in order to verify the mechanical bonding between bare tube and fin materials.

  3. Acceptance criteria: INTERNATIONAL STANDARD FOR DIMENSIONS, TOLERANCES, AND TESTS OF HIGH FREQUENCY RESISTANCE WELDED FINS or the delivery conditions (TDC) of clients.

  4. Visual check: un-welded parts of fin, fin damage after fining, copper pollution, tears, wrap etc…

  5. Dimensional check: fin height, fin spacing, fin inclination, fin corrugation, length of finned & un-finned portion etc…

  6. Bending check: ovality, thickness and area reduction.

  7. Coating: outside-Red oxide zinc phosphate primer and inside volatile corrosion inhibitor (VCI) in water soluble tablet form.

  8. Fin end finish: Bevel(30~35degeree)

  9. Delivery condition: Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of helical welded tubes. The desiccants are put into the each package for continental transportation as well.

  10. Documentation shall include QAP, WPS, PQR& WPQ, raw materials mill certificates, inspection and test samples results and warranty certificate of manufacturer.

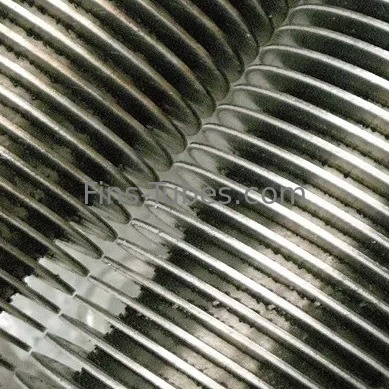

DELLOK 19mm Heat Exchanger Fin Tube 0DELLOK 19mm Heat Exchanger Fin Tube 1DELLOK 19mm Heat Exchanger Fin Tube 2
