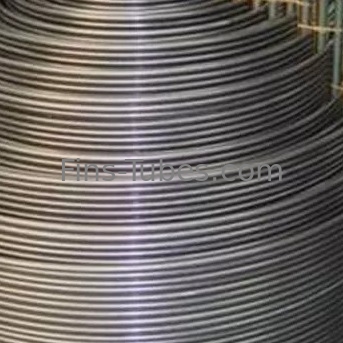

DELLOK Precision Superheater Economizer Heat Exchanger U Bend Tube

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK Precision Superheater Economizer Heat Exchanger U Bend Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Tube OD:: OD76mm Max.
Tube Wall Thickness:: 0.5 Mm To 8 Mm
Developed Length:: 25 Meters Max.
Bending Radius:: From 1.5 Mm To 1500mm
Applications: For Pressure Vessels Including Heat Exchangers For Boiler And Boiler-related Equipment,such As Superheaters And Economizers
Company Type: Importer & Exporter
Highlight:

Economizer Heat Exchanger U Tube

,

Superheater U Tube Type Heat Exchanger

,

Superheater Heat Exchanger U Tube

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: U bend tube
Payment & Shipping Terms
Packaging Details: (1) Steel frame case sealed by plywoods (2) Solid fumigated wooden box.
Delivery Time: Ex-work within 1 month on receipt of order.
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

Precision Superheater Economizer Heat Exchanger U Tube

Stainless Steel U Bend Tube,Carbon Steel U Tube,heat exchanger U fin tube,boiler U bend tube,U tube bundles,U tube coils

Description:



Product Details

Tube details:

Tube OD: OD76mm max.

Tube wall thickness: 0.5 mm to 8 mm

Bending Radius: From 1.5 mm To 1500mm

Developed length: 25 meters Max.

Stainless Steel U Bend Tubes are manufactured in accordance with design and drawings. Bending radius, C to C distance and straight leg length are required for U bending tubes.


General Manufacturing process: U Bend Tubes are manufactured in accordance with design and drawings. Bends portation could be heat treated as per clients’ requirements followed by hydrostatic or pneumatic tests if required.

Basic parameters for U bent tubes:

  1. The integral low fins on straight portions are allowed; please refer to our low fin tube data sheet.

  2. Marking is possible after bending on straight portions of U-bending Tube.

  3. The manufacturing process of bare tubes is cold drawn or cold rolled.

  4. The quality of bare tubes before bending is annealed, pickled and bright annealed.

  5. Acceptance criteria: inspection test plans, design and drawings, layout check.

  6. The U bent tubes are oiled or varnished for rust preventation and stenciled at ends.

  7. Heat Treatment: stress relieved after U-Bending (Bending area plus 300mm of each leg).

  8. Delivery condition: Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends. The desiccants are put into each package for continental transportation as well.

Applications:

  1. For pressure vessels including heat exchangers

  2. For boiler and boiler-related equipment,such as superheaters and economizer

Specifications:

Core tube: Any metallic materials, as carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys etc…

S/r

Carbon /alloy steel tubes and pipes for heat exchangers and boilers

1

Standard specification for carbon steel seamless tubes/pipe for temperature services (ASTM A 106 Gr A/B/C)

2

Standard specification for carbon steel seamless tubes/pipe for heat exchangers and condensers (ASTM A 179)

3

Standard specification for carbon steel boiler tubes/pipes for high pressure services(ASTM A192)

4

Standard specification for seamless carbon steel boiler and superheater tubes (ASTM A210 A1/C)

5

Standard specification for seamless alloy steel boiler and superheater tubes (ASTM A213 T2/T11/T12/T22)

6

Standard specification for seamless alloy steel pipes for low temperature services (ASTM A333 Gr. 1/6)

7

Standard specification for seamless carbon and alloy steel tubes for low temperature services (ASTM A334 Gr. 1/6)

8

Standard specification for seamless Ferrite alloy steel pipes for low temperature services (ASTM A335 P11/P12/P22)

9

Standard specification for seamless carbon steel tubes for boilers and superheaters (BS3059)

10

Standard specification for seamless alloy steel tubes for boilers, pipelines, pressure vessels for temperature up to 600 degree (DIN 17175)


Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 3 bending finning machine with maximum OD76mm X8mm Thickness.

  2. Shanghai Port is our nearest seaport and airport, less than 2 hours’ drive away from our workshop, convenient transportation.

  3. Tube stock availability for general grade of carbon steel and stainless steel

  4. Engineering quick know-how support.

Our Service:
1. Inquiry-Professional quotation, or send inquiry item more details, we start contact more details
2. Confirm the price, lead time, payment term etc
3. Our sales send the Proforma Invoice with our seal, or you order online to us
4. Customer make the payment for deposit and send us Bank receipt
5. Initial Production Stage-Inform the clients that we have got the payment, and will make the samples according to your request, send you photos or samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time
6. Middle Production-send photos to show the production line which you can see you products. Confirm the estimated delivery time again.
7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party inspection
8. Clients make payment for balance and ship goods, inform the tracking number and check the status for clients
9. Order can be say "finish" when you receive the goods and satisfy with them
10. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better

DELLOK Precision Superheater Economizer Heat Exchanger U Bend Tube 0DELLOK Precision Superheater Economizer Heat Exchanger U Bend Tube 1DELLOK Precision Superheater Economizer Heat Exchanger U Bend Tube 2
