DELLOK Reliance Copper Heating Coils SB111 C12200 Low Fin Tubes

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK Reliance Copper Heating Coils SB111 C12200 Low Fin Tubes
Features Gallery Product Description Request A Quote
Features
Specifications
Tube OD:: 12mm ~ 50.8mm
Fin Pitch:: 10FPI, 11FPI Etc...
Fin Average Thickness:: ~0.3mm
Package:: Plywood Box (export Packing)
Tube Length: No Limit
Fin Height: As Per Client's Requirement
High Light:

10FPI Low Fin Tubes

,

11FPI Copper Fin Tube

,

12mm Low Fin Tubes

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: Reliance-1120
Payment & Shipping Terms
Packaging Details: Solid fumigated plywooden export box
Delivery Time: Ex-work within 2 weeks on receipt of order.
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

Reliance Copper Heating Coils SB111 C12200 Low Fin Tubes



Name:

HIGH Fin Tubes Fining Machine

Tube Material:

Carbon Steel, Stainless Steel, Copper Etc...

Fin Material:

Same As Tube Material

Tube OD:

12mm ~ 50.8mm

Tube Length:

No Limit

Fin Height:

As Per Client's Requirement

Fin Average Thickness:

~0.3mm

Fin Pitch:

10FPI Etc...

Process:

Extrusion

Fin Type:

Extruded HIGH Fins

Voltage:

415V / 50HZ (as Per Client's Requirement)

Brand:

RELIANCE

Package:

Plywood Box (export Packing)

Training:

Supplier's Site OPERATION Training



SB111 C12200 extrusion HIGH Fin heating coils ,11FPI extruded copper fin tubes machine



Details

Name

High Fin Tube Machine

Brand/Mode No

Reliance/ Mode No:1120

Tube Material

1. carbon steel,stainless steel

2. Copper/Brass/Brone

3. Titanium

4. Aluminum alloy

Popular Fins

Material

The fins are extrued out of core tubes, and fin material is same as tube material.



1. Machine characters

One complete set of extrusion low fin tube Machine is consists

a. Finning head (Not including input and output racks)

b. Cooling systems for finning head

c. One FREE group is installed into machine before ex-work.

d. Drawing of finning input racks and output racks

e. Technical know-how(Operation Manual in English)

f. Operation training: Reliance's site



Competitive Advantage:

1. We have more than 10,000 square meters workshop, including 10 finning machines, daily extrusion capacity up to 3,000 meters.

2. The finning machines of Integral Low Fin Tubes are designed and assembled by ourselves and we can offer you finning machines and all accessories etc...

3. The Integral Low Fins are rolled out of the tube surface to increase the tubes external surface area, without affecting any others dimension.

4. Low Fins are very useful for tight condensers and exhibits high efficiency of heat transfer.

5. Economical solutions of heat exchange problems of media with different heat conduction abilities or different current condition

6. High chemical-, thermal- and mechanical resistance, suitable for rough operation conditions.

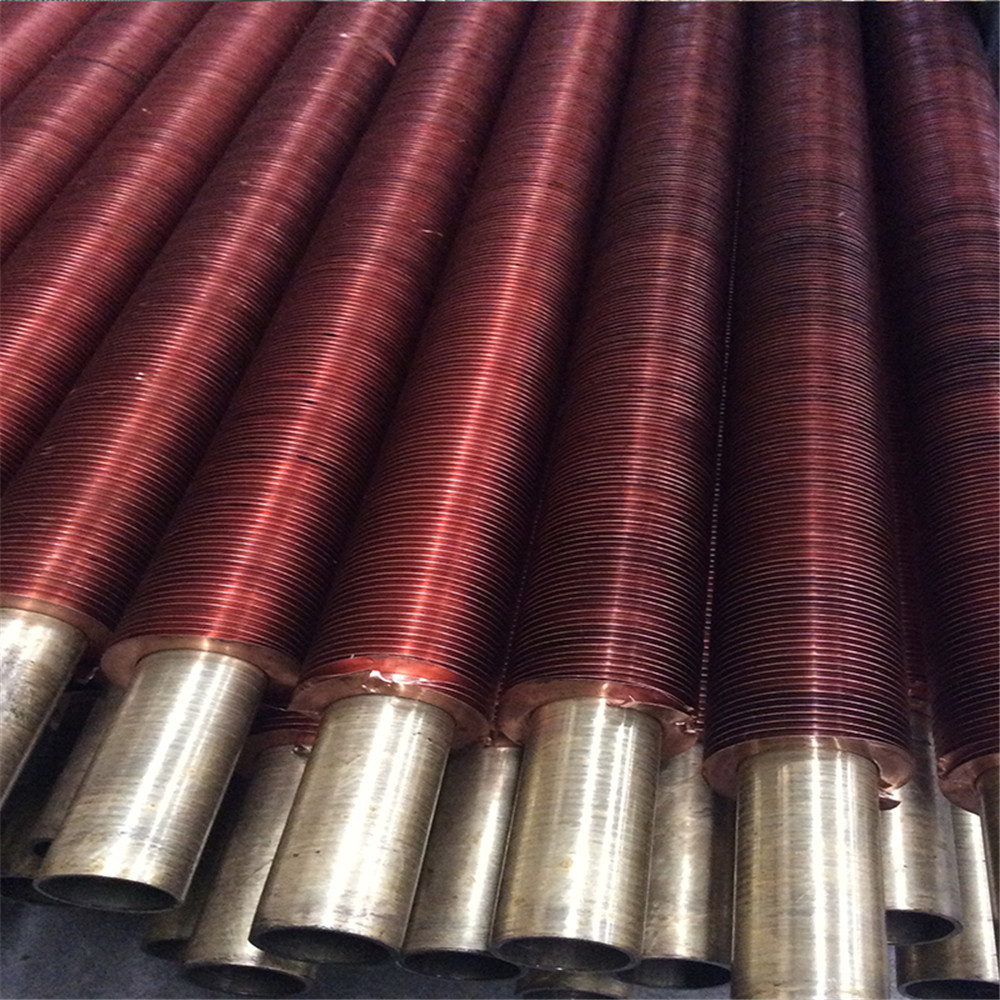

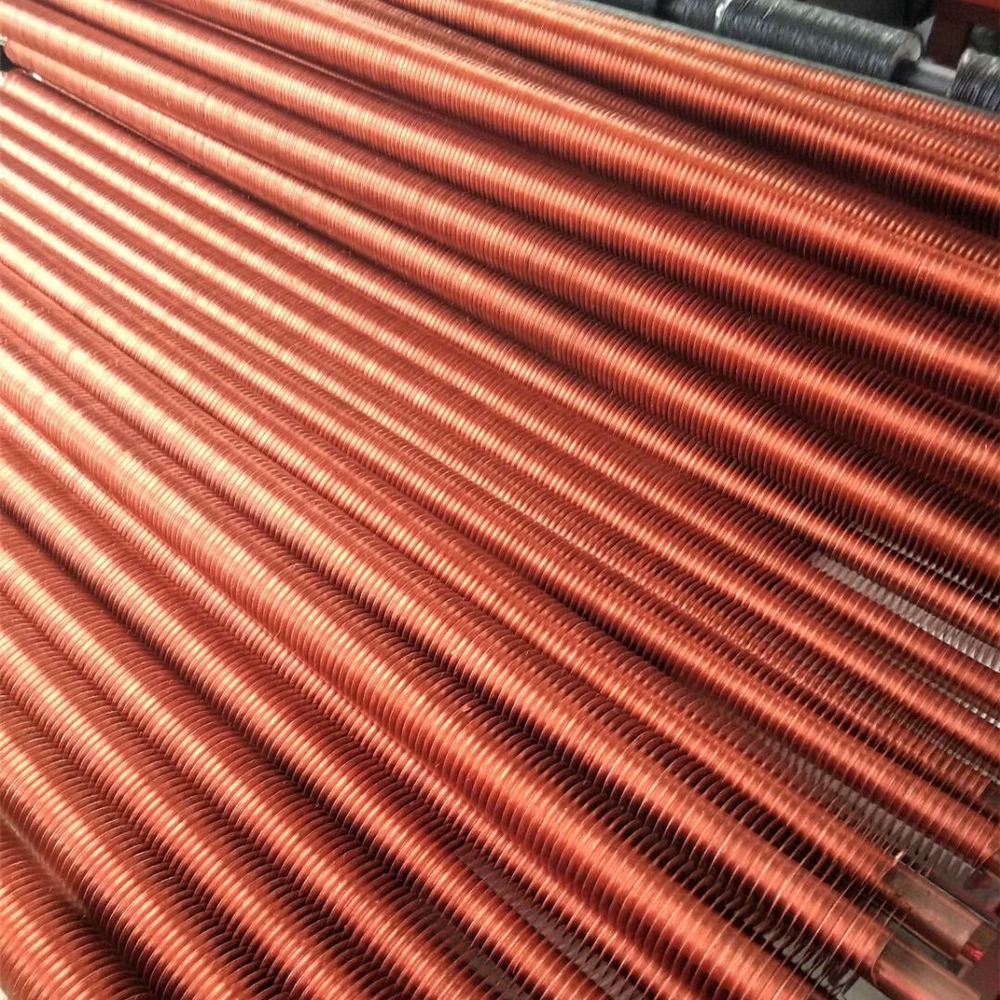

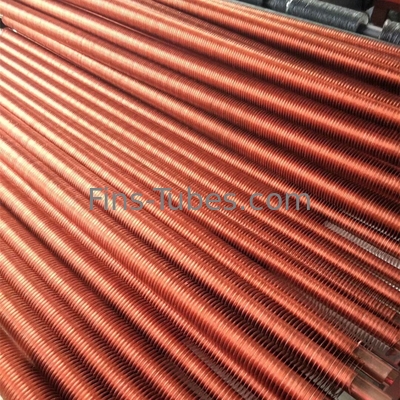

DELLOK Reliance Copper Heating Coils SB111 C12200 Low Fin Tubes 0DELLOK Reliance Copper Heating Coils SB111 C12200 Low Fin Tubes 1DELLOK Reliance Copper Heating Coils SB111 C12200 Low Fin Tubes 2
