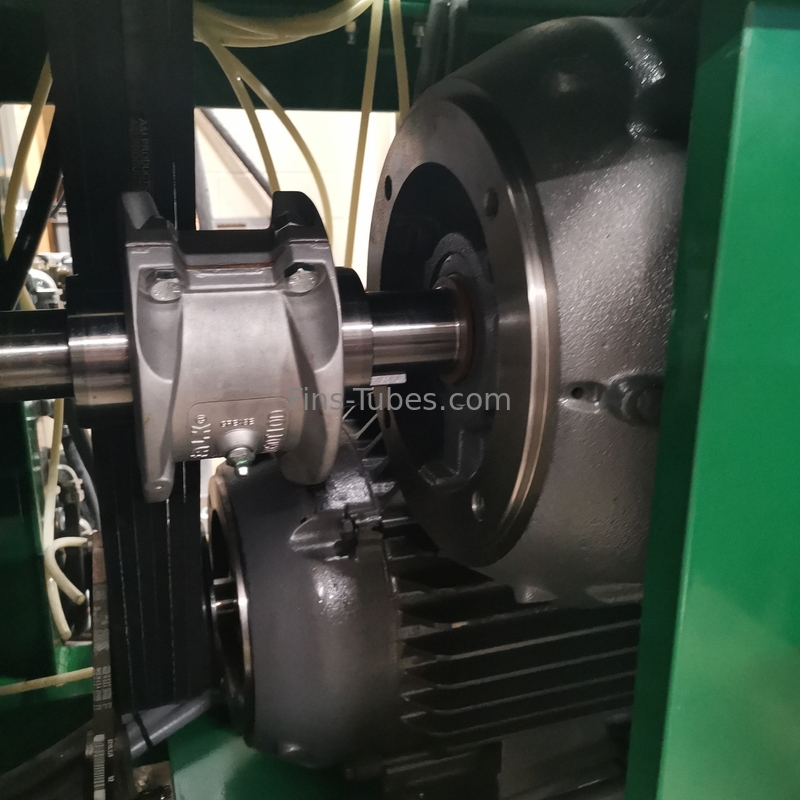

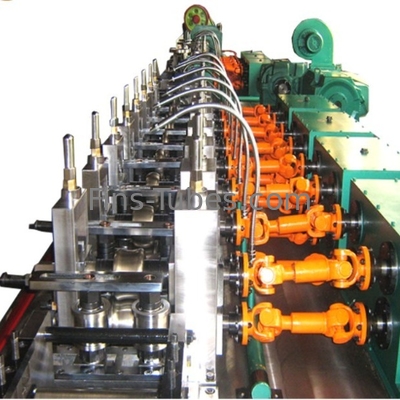

Embedded Tube Finning Machine
All groovers and accessories are designed by ourseves and please do not hesitate to contact us if any doubts.
General description of G-Type finning machine.
1. Embedded Machine Mode No: Reliance-1518(Our internal design No.)
2. Embedded Machine Power Output: 380V/50HZ (Chinese Standard).
3. The motors of export embedded finning machine are supplied upon clients’ requests.
Quick Details
|
Name |
Embedded Fin Tube Machine |
Brand/Mode No |
Reliance/ Mode No:1518 |
|
Tube Material |
Seamless steel tubes(CS,SS,AS) Welded steel tubes(CS,SS) Copper/Brass/Brone |
Fins Material |
Alu.1060-O, Alu. 1060-H14 Alu 1100-O, Alu. 1050 Copper |
One complete set of Embedded Finning Machine consisting following:
1. Finning head
2. PLC controlled power box
3. Finning input racks
4. Finning output racks
5. Technical know-how(Operation Manual in English)
|
Dimensions Data are in Inches and specification upon your requests. |
|||
|
Tube OD |
Fin Height |
Fin Thickness |
Fins per Pitch(Density) |
|
5/8 |
3/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
3/4 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
1 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
1 1/4 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
1 1/2 |
5/8,1/2 |
.015/.016/ .020 |
6, 7, 8, 9, 10, 11, 12 |
|
Please email us for more information. |
|||
|
Competitive Advantage: |
|
1. We have more than 10,000 square meters workshop, including 10 finning machines, daily extrusion capacity up to 3,000 meters. |
|
2. The finning machines of Integral Low Fin Tubes are designed and assembled by ourselves and we can offer you finning machines and all accessories etc... |
|
3. The Integral Low Fins are rolled out of the tube surface to increase the tubes external surface area, without affecting any others dimension. |
|
4. Low Fins are very useful for tight condensers and exhibits high efficiency of heat transfer. |
|
5. Economical solutions of heat exchange problems of media with different heat conduction abilities or different current conditions. |
|
6. High chemical-, thermal- and mechanical resistance, suitable for rough operation conditions. |
Service After Sales
1. Technical support
2. Operation training at your site or in Reliance's Plant or both
3. Information on maximun production criteria
4. Reference charts
5. Specifications for tube and fin strips.
