DELLOK Heating Coils Carbon Steel 10FPI 180 Degree Pipe Elbow

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK Heating Coils Carbon Steel 10FPI 180 Degree Pipe Elbow
Features Gallery Product Description Request A Quote
Features
Specifications
Fin Pitch:: 10FPI Etc...
Tube OD:: 12mm ~ 50.8mm
Fin Type:: Extruded HIGH Fins
Tube Material:: Carbon Steel, Stainless Steel, Copper Etc.
Tube Length: No Limit
Fin Average Thickness:: ~0.3mm
High Light:

10FPI 180 Degree Pipe Elbow

,

10FPI Carbon Steel Elbow

,

50.8mm 180 Degree Pipe Elbow

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: Reliance-1120
Payment & Shipping Terms
Packaging Details: Solid fumigated wooden box loaded into 20 feet Container.
Delivery Time: Ex-work within 3~4 weeks on receipt of order.
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

Heating Coils Carbon Steel 10FPI 180 Degree Pipe Elbow



Name: HIGH Fin Tubes Fining Machine Tube Material: Carbon Steel, Stainless Steel, Copper Etc...
Fin Material: Same As Tube Material Tube OD: 12mm ~ 50.8mm
Tube Length: No Limit Fin Height: As Per Client's Requirement
Fin Average Thickness: ~0.3mm Fin Pitch: 10FPI Etc...
Process: Extrusion Fin Type: Extruded HIGH Fins
Voltage: 415V / 50HZ (as Per Client's Requirement) Brand: RELIANCE
Package: Plywood Box (export Packing) Training: Supplier's Site OPERATION Training



Extrusion HIGH Fin heating coils ,11FPI extruded HIGH fin tube



Manufacturing Process
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.

Fins Type:
Solid fins & Serrated fins

Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).

Applications:
The common application fileds are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);

  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);

  3. The petroleum, chemical and petrochemical industries;

  4. The food processing and refrigeration industries;

  5. Natural gas treatment;

Specifications:
Extruded Bimetallic Finned Tube is combined with two different materials.

Items

General Materials

Popular ASTM Materials

Core Tube Material

Any metallic materials, as carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys etc.
(Core tube with extremely thin wall materials can be applied.)

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B
2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,
A789 S31803/S2205 etc...
3. Copper:UNS12200/UNS14200/UNS70600,
CuNi70/30,CuNi 90/10
4. Titanium: B338 Gr 2

Fins Material

1. Aluminum
2. Copper.

1. Aluminum(Alu.1100,Alu.1060,Alu.6063)
2. Copper.



All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch(Density)

5/8

3/8,1/2

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11, 12

1

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 1/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10,

1 1/2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10, 11

1 3/4

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

2

3/8,1/2,5/8

.015/.016/ .020

4, 5, 6, 7, 8, 9, 10

Please email us for more information.



Competitive Advantage:

1. We have more than 10,000 square meters workshop, including 10 finning machines, daily extrusion capacity up to 3,000 meters.

2. The finning machines of Integral Low Fin Tubes are designed and assembled by ourselves and we can offer you finning machines and all accessories etc...

3. The Integral Low Fins are rolled out of the tube surface to increase the tubes external surface area, without affecting any others dimension.

4. Low Fins are very useful for tight condensers and exhibits high efficiency of heat transfer.

5. Economical solutions of heat exchange problems of media with different heat conduction abilities or different current condition

6. High chemical-, thermal- and mechanical resistance, suitable for rough operation conditions.

Our Service:
1. Inquiry-Professional quotation, or send inquiry item more details, we start contact more details
2. Confirm the price, lead time, payment term etc
3. Our sales send the Proforma Invoice with our seal, or you order online to us
4. Customer make the payment for deposit and send us Bank receipt
5. Initial Production Stage-Inform the clients that we have got the payment, and will make the samples according to your request, send you photos or samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time
6. Middle Production-send photos to show the production line which you can see you products. Confirm the estimated delivery time again.
7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party inspection
8. Clients make payment for balance and ship goods, inform the tracking number and check the status for clients
9. Order can be say "finish" when you receive the goods and satisfy with them
10. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better

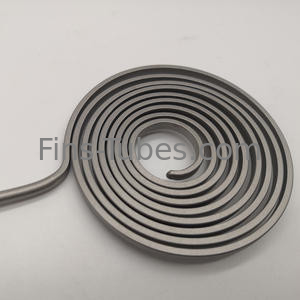

DELLOK Heating Coils Carbon Steel 10FPI 180 Degree Pipe Elbow 0DELLOK Heating Coils Carbon Steel 10FPI 180 Degree Pipe Elbow 1DELLOK Heating Coils Carbon Steel 10FPI 180 Degree Pipe Elbow 2
