DELLOK High Pressure Annealed SA192 Carbon Steel Fin Tube Seamless
SA192 Carbon Steel Fin Tube
,SA192 Carbon Steel Pipes
,0.8mm Carbon Steel Fin Tube
High Pressure Annealed SA192 Carbon Steel Seamless Tube
A192 / SA192 Annealed Seamless Carbon Steel / Pipe For High-Pressure Service
|
Product Details |
|
|
Tube details: |
Tube OD: 12.7mm – 114.3mm |
|
Wall Thickness: 0.8mm - 15mm |
|
|
Length: Fixed(6m,9m,12,24m) or normal length(5-12m) |
|
|
Standard: ASTM A192, A192M |
|
Description:
ASTM ASTM A192, A192M
Seamless Carbon Steel Boiler Tubes For High-Pressure Service.
Steel Grde:
Grade A192

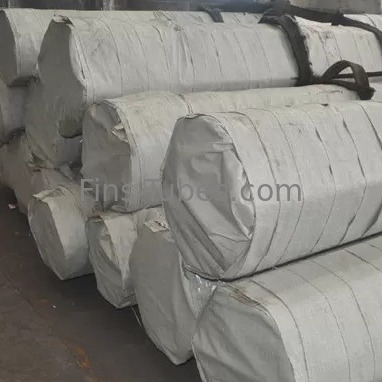

Packing:
Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection
Inspection and Test:
Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test.
Surface treatment:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Mark:
As requested.
Delivery Condition:
Annealed, Normalized, Normalized and Tempered
Chemical composition:
|
Product |
Ttem |
Grade |
Chemical composition |
|||||||
|
C |
Si |
Mn |
P.≤ |
S.≤ |
Cr |
Ni |
others |
|||
|
Carbon steel |
1 |
10 |
0.07/0.13 |
0.17/0.37 |
0.35/0.65 |
0.03 |
0.03 |
≤0.15 |
≤0.30 |
Cu≤0.25 |
|
2 |
20 |
0.17/0.23 |
0.17/0.37 |
0.35/0.65 |
0.03 |
0.03 |
≤0.25 |
≤0.30 |
Cu≤0.25 |
|
|
3 |
A179 |
0.06/0.18 |
- |
0.27/0.63 |
0.03 |
0.03 |
- |
- |
- |
|
|
4 |
A192 |
0.06/0.18 |
≤0.25 |
0.27/0.63 |
0.03 |
0.03 |
- |
- |
- |
|
Mechanical properties:
|
Item |
Mark |
Tensile property |
Hardness |
||||
|
Extension strength Rm Mpa |
Lower Yield strength Rel or Rp0.2 MPa |
lower Yield strength ReL or Rp0.2 Mpa |
|||||
|
Thickness |
Thickness |
||||||
|
≤16 |
>16 |
<5.1 |
≥5.1 |
||||
|
≥ |
≤ |
||||||
|
1 |
10 |
335~475 |
205 |
195 |
24 |
- |
- |
|
2 |
20 |
410~530 |
245 |
235 |
20 |
- |
- |
|
3 |
A179 |
≥325 |
180 |
35 |
- |
- |
|
|
4 |
A192 |
≥325 |
180 |
35 |
77HRB |
137HB |
|
Applications:
1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Our Service:
1. Inquiry-Professional quotation, or send inquiry item more details, we start contact more details
2. Confirm the price, lead time, payment term etc
3. Our sales send the Proforma Invoice with our seal, or you order online to us
4. Customer make the payment for deposit and send us Bank receipt
5. Initial Production Stage-Inform the clients that we have got the payment, and will make the samples according to your request, send you photos or samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time
6. Middle Production-send photos to show the production line which you can see you products. Confirm the estimated delivery time again.
7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party inspection
8. Clients make payment for balance and ship goods, inform the tracking number and check the status for clients
9. Order can be say "finish" when you receive the goods and satisfy with them
10. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better
