DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube
Features Gallery Product Description Request A Quote
Features
Specifications
WT: 0.8mm-15mm
OD: 12.7mm-114.3mm
Packing: Beveled/black Painting/ Plastic Caps/ In Bundles/ Steel Strips/ Wooden Protection
Surface Treatment: Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Mark: As Requested
High Light:

12.7mm Carbon Steel Fin Tube

,

A210 Carbon Steel Pipes

,

0.8mm Carbon Steel Fin Tube

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: Flat tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: Ex-work within 4 or 5 weeks after order
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

Boiler Wall Thickness 0.8mm A210 Carbon Steel Seamless Tube



ASTM A210 Seamless Carbon Steel Tube , Boiler Steel Pipe Wall Thickness 0.8mm - 15mm


Description:
ASTM A210 is the standard covers seamless medium-carbon steel boiler and superheater tubes.ASTM A210 also covers minimum-wall-thickness, tubing sizes, boiler flues including safe ends, arch and stay tubes. ASTM A210 provides tensile and hardness properties but only applicable to certain size limitations. Material manufacturing shall be killed. Tubes shall be made by seamless process, marked as either hot-finished or cold-finished. Surface condition shall be specifically stated in the order. Chemical composition shall conform to the requirements. Elemental composition other than listed here shall not be permitted. Tension test, flattening test, flaring test, hardness test, hydrostatic or nondestructive electric test shall be made on specimens. Superheater tubes shall be formed without defects and shall withstand expansion, beading, forging, welding, and bending.

ASTM A210/A210M Seamless Medium-Carbon Steel Boiler Tubes
Seamless Medium-Carbon Steel Boiler and Superheater Tubes

Quick Detail:



Standard: ASTM A210/A210M (ASME SA210/SA210M)
Seamless Medium-Carbon Steel Boiler and Superheater Tubes
Size:(mm)
Out Dimensions: 12.7mm-114.3mm
Wall Thickness: 0.8mm-15mm
Length: 5-25mm

Applications:
It is used for boiler and boiler flue tubes. Including safe end, vault and supporting tube and super heater min wall thickness seamless medium--carbon steel tube

Chemical Requirements:

STANDARD GRADE CHEMICAL COMPOSITION
C Si Mn P S Cr Mo Cu Ni V
ASTM A210 A-1 ≤0.27 ≥0.10 ≤0.93 ≤0.035 ≤0.035
C ≤0.35 ≥0.10 0.291.06 ≤0.035 ≤0.035


Mechanical Properties:

Grade Yield Strength (Mpa) Tensile Strength (Mpa) Elongation (%)
A-1 ≥255 ≥415 30
C ≥275 ≥485 30


Wall Thickness Tolerance


ASME SA-210
OD WT WT Tolerance
<=38.1 / +20%,-0%
>38.1 / +20%,-0%



Our Service:
1. Inquiry-Professional quotation, or send inquiry item more details, we start contact more details
2. Confirm the price, lead time, payment term etc
3. Our sales send the Proforma Invoice with our seal, or you order online to us
4. Customer make the payment for deposit and send us Bank receipt
5. Initial Production Stage-Inform the clients that we have got the payment, and will make the samples according to your request, send you photos or samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time
6. Middle Production-send photos to show the production line which you can see you products. Confirm the estimated delivery time again.
7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party inspection
8. Clients make payment for balance and ship goods, inform the tracking number and check the status for clients
9. Order can be say "finish" when you receive the goods and satisfy with them
10. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better

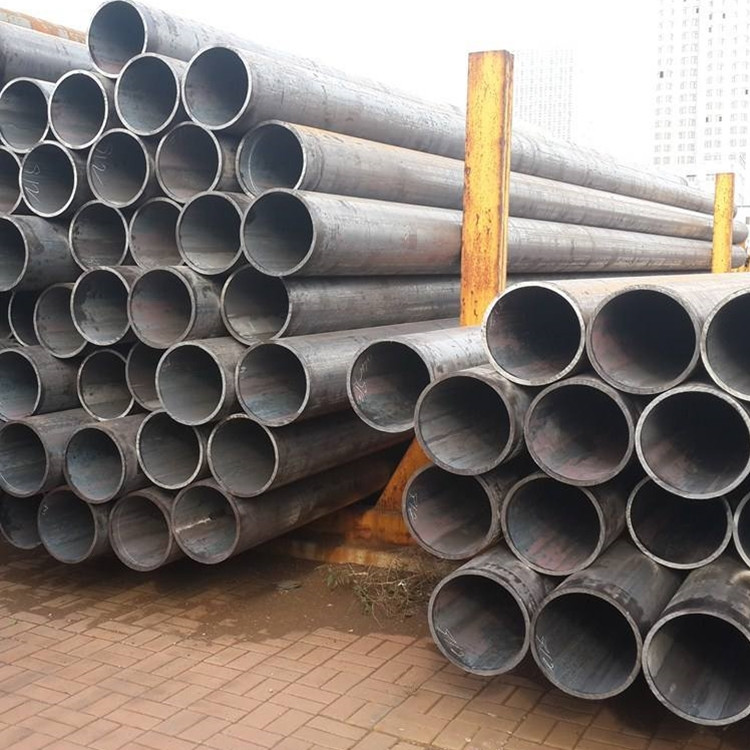

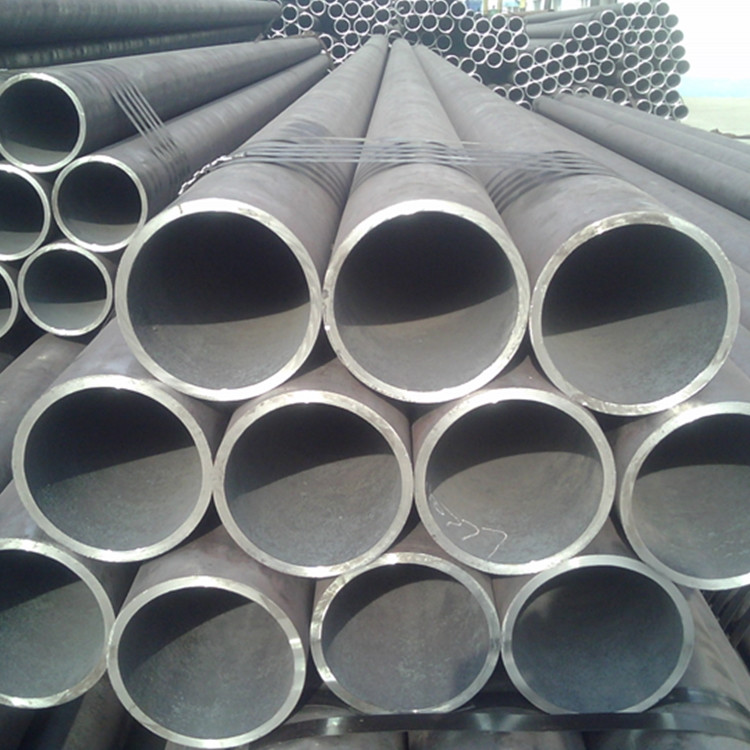

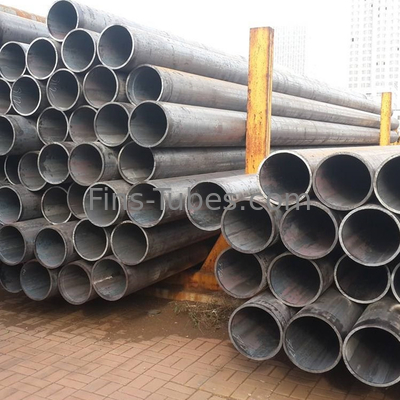

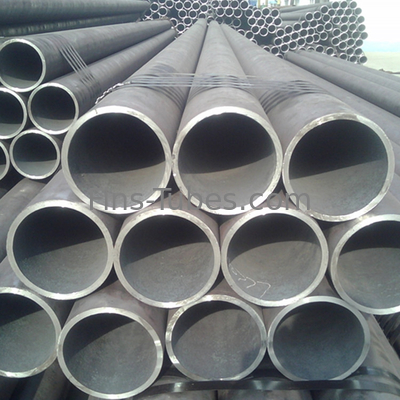

DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube 0DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube 1DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube 2
