DELLOK Thin Wall DIN 17458 0.5mm 316 Stainless Steel Seamless Tubes

N/A Contact us for details
MOQ
N/A Contact us for details
Price
DELLOK Thin Wall DIN 17458 0.5mm 316 Stainless Steel Seamless Tubes
Features Gallery Product Description Request A Quote
Features
Specifications
OD: 6.00mm To 101.6mm
WT: 0.5mm To 8mm
Type Of Tubes:: U-bend & Straight.
Standard: DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...
Material: Stainless Steel
Technique: Seamless
Type: Fin Tube
High Light:

0.5mm 316 Stainless Steel Seamless Tubes

,

DIN17458 Stainless Steel Seamless Tubes

,

DIN 17458 Stainless Steel Round Tubing

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Certification: CE. ISO,EN10204. 3.1 Cert.
Model Number: Flat tube
Payment & Shipping Terms
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: EX-WORK within 4~5 weeks after order
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Product Description

Thin Wall Seamless DIN 17458 0.5mm 316 Stainless Steel Tubing



Pickled / Bright Annealed Stainless Steel Seamless Tube , ASME SA213 TP316 / 316L



Specification:

ASME SA213/A213: Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.

ASTM A249 / A249M: Welded Austenitic Steel Boiler,Superheater Heat-Exchanger & Condenser Tubes.



More Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...



American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Others:TP405,TP409, TP410, TP430, TP439,...

Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
Russia Standard 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ



Size Range:

Production Outside Diameter Wall Thickness
BoilerTube 6.00mm to 101.6mm 0.5mm to 8mm



Final Finishing

Solution Annealed & Pickled/Bright Annealed.



Type of Tubes:

U-bend & Straight.



Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
  •

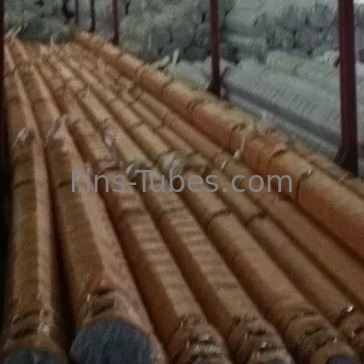

DELLOK Thin Wall DIN 17458 0.5mm 316 Stainless Steel Seamless Tubes 0DELLOK Thin Wall DIN 17458 0.5mm 316 Stainless Steel Seamless Tubes 1DELLOK Thin Wall DIN 17458 0.5mm 316 Stainless Steel Seamless Tubes 2
