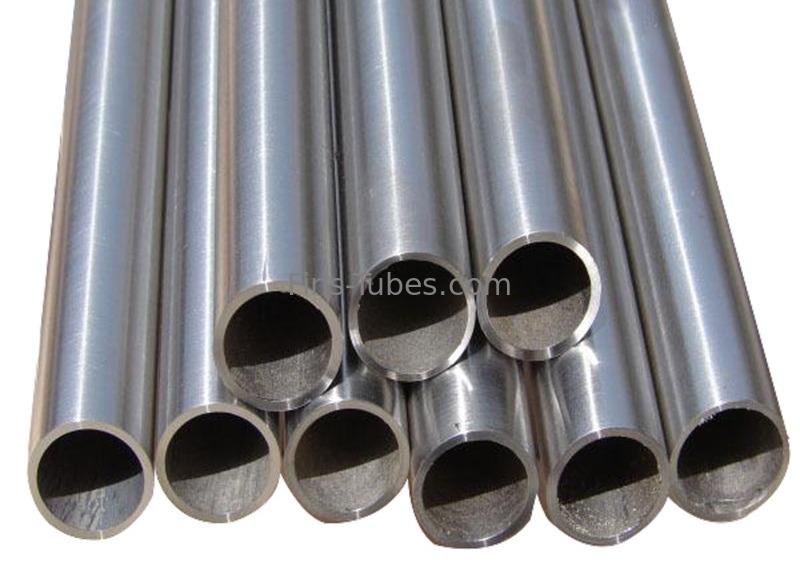

DELLOK Gr1 Gr2 Pure Titanium Alloy Round Tube For Chemical Industry Pipe

100 pieces
MOQ
Determined by actual quantity
Price
DELLOK Gr1 Gr2 Pure Titanium Alloy Round Tube For Chemical Industry Pipe
Features Gallery Product Description Request A Quote
Features
Specifications
Material:: Pure Titanium/Titanium Alloy
Outer Diameter:: 1-350mm
Length:: ≤3000mm
Standard:: ASTM B862,ASTM B338,ASME SB862,ASME SB338
Wall Thickness:: 0.3-120mm
Inside Diameter:: 2-219mm
High Light:

Gr2 Pure Titanium Rectangular Tube

,

Chemical Industry Titanium Alloy Tube

,

Gr1 Titanium Alloy Tube

Basic Infomation
Place of Origin: China
Brand Name: DELLOK
Model Number: Round Titanium Tube
Payment & Shipping Terms
Packaging Details: standard export package,we have plastic package,and outside will be use wooden case.Or we can according your need.
Delivery Time: Determined by actual quantity
Payment Terms: T/T 30% in advanced,70% before EXW
Supply Ability: 10000 Ton/Tons per Month
Product Description
DELLOK Gr1 Gr2 Pure Titanium Rectangular Tube For Chemical Industry Pipe
Product Description
Titanium Welded Pipe
Product
Titanium and Titanium alloy welded tube
Size
OD: 19.0mm (0.75") and 25.4mm (1.0"), Length: 1000mm-15000mm (39.4"-590.6"), Thickness: 0.5mm-0.7mm (0.02"-0.028")
Or Customized
Material
Gr.1, Gr.2, Gr.9
Standard
ASTM B337, ASTM SB338, ASTM B861, ASTM B862,etc.
Shape
Round
Titanium Seamless Pipe
Product
Titanium and Titanium alloy seamless tube & pipe
Size
Cold-rolled:
OD: 8.0mm-114.0mm (0.32"-4.49"), WT: 0.5mm-7.5mm (0.02"-0.30"), Length: 4000mm (157.5") max (OD.: 8.0mm-15.0mm, 0.32"-0.59"),
12000mm (472.4") max (OD. over 15mm, 0.59")
Extruded:
OD: 25mm-210mm (0.98"-8.27"), WT: 4mm-30mm (0.157"-1.18"), Length: 1000mm-10000mm (39.4"-393.7")
Material
Gr.1, Gr.2, Gr.3, Gr.7, Gr.9, Gr.12, etc.
Standard
ASTM B 338, ASTM B 337, ASTM B 861
Shape
Round
Specification
OD(mm)
8.0-10.0
10.0-15.0
15.0-20.0
20.0-25.0
25.0-30.0
30.0-35.0
WT(mm)
0.15-2.0
0.2-2.0
0.4-2.7
0.45-3.2
0.45-3.3
0.45-3.4
OD(mm)
35.0-40.0
41.0-45.0
46.0-50.0
51.0-55.0
56.0-60.0
61.0-65.0
WT(mm)
0.5-3.5
0.6-3.8
0.6-3.8
0.6-4.4
0.8-4.6
0.9-4.7
OD(mm)
66.0-70.0>
71.0-75.0>
76.0-95.0
96.0-114.0
-
-
WT(mm)
1.0-4.9
1.2-6.0>
1.2-7.1
1.3-7.5
-
-
Application Area
DELLOK Gr1 Gr2 Pure Titanium Alloy Round Tube For Chemical Industry Pipe 0
DELLOK Gr1 Gr2 Pure Titanium Alloy Round Tube For Chemical Industry Pipe 1



The titanium tube is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium tubes as standard tubes for their units

DELLOK Gr1 Gr2 Pure Titanium Alloy Round Tube For Chemical Industry Pipe 2
DELLOK Gr1 Gr2 Pure Titanium Alloy Round Tube For Chemical Industry Pipe 3
DELLOK Gr1 Gr2 Pure Titanium Alloy Round Tube For Chemical Industry Pipe 4
Titanium pipes implement two national standards according to the different requirements and performance: GB/T3624-2010 GB/T3625-2007 ASTM B337 338 Supply grades: TA0, TA1, TA2, TA9, TA10, BT1-00, BT1-0, Gr1, Gr2
DELLOK Gr1 Gr2 Pure Titanium Alloy Round Tube For Chemical Industry Pipe 5DELLOK Gr1 Gr2 Pure Titanium Alloy Round Tube For Chemical Industry Pipe 6DELLOK Gr1 Gr2 Pure Titanium Alloy Round Tube For Chemical Industry Pipe 7
