Name: DELLOK 99.99% Pure Titanium Metal Tube Welded Alloy Round Tube
Brand: Dellok Yonghui Radiating Pipe Manufacturing Co.,Ltd.
SKU: Round Titanium Tube
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material:: Pure Titanium/Titanium Alloy

Outer Diameter:: 1-350mm

Length:: ≤3000mm

Standard:: ASTM B862,ASTM B338,ASME SB862,ASME SB338

Grade:: G2/g3/g5

Wall Thickness:: 0.3-120mm

Highlight:

99.99% Pure Titanium Metal Tube

Welded Titanium Metal Tube

Round Shaped Titanium Alloy Tube

Basic Infomation

Place of Origin: China

Brand Name: DELLOK

Model Number: Round Titanium Tube

Payment & Shipping Terms

Packaging Details: standard export package,we have plastic package,and outside will be use wooden case.Or we can according your need.

Delivery Time: Determined by actual quantity

Payment Terms: T/T 30% in advanced，70% before EXW

Supply Ability: 10000 Ton/Tons per Month

Gallery

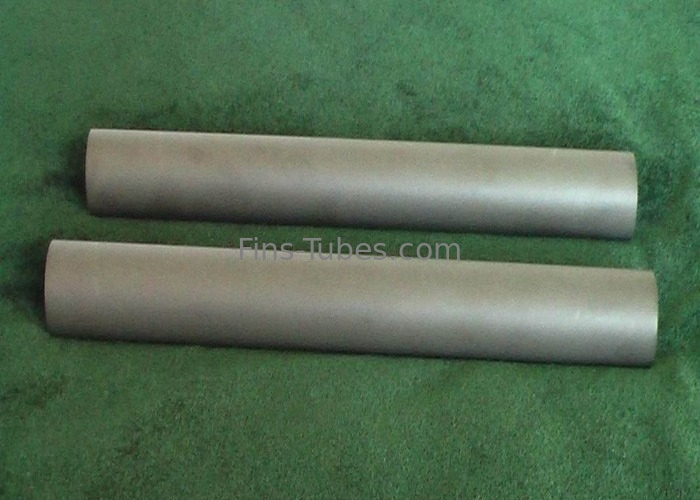

DELLOK 99.99% Pure Titanium Metal Tube Welded Alloy Round Tube

Product Description

DELLOK 99.99% Pure Titanium Metal Tube Pric

Product Description

Titanium Welded Pipe
Product	Titanium and Titanium alloy welded tube
Size	OD: 19.0mm (0.75") and 25.4mm (1.0"), Length: 1000mm-15000mm (39.4"-590.6"), Thickness: 0.5mm-0.7mm (0.02"-0.028") Or Customized
Material	Gr.1, Gr.2, Gr.9
Standard	ASTM B337, ASTM SB338, ASTM B861, ASTM B862,etc.
Shape	Round
Titanium Seamless Pipe
Product	Titanium and Titanium alloy seamless tube & pipe
Size	Cold-rolled: OD: 8.0mm-114.0mm (0.32"-4.49"), WT: 0.5mm-7.5mm (0.02"-0.30"), Length: 4000mm (157.5") max (OD.: 8.0mm-15.0mm, 0.32"-0.59"), 12000mm (472.4") max (OD. over 15mm, 0.59") Extruded: OD: 25mm-210mm (0.98"-8.27"), WT: 4mm-30mm (0.157"-1.18"), Length: 1000mm-10000mm (39.4"-393.7")
Material	Gr.1, Gr.2, Gr.3, Gr.7, Gr.9, Gr.12, etc.
Standard	ASTM B 338, ASTM B 337, ASTM B 861
Shape	Round

Specification

OD(mm)	8.0-10.0	10.0-15.0	15.0-20.0	20.0-25.0	25.0-30.0	30.0-35.0
WT(mm)	0.15-2.0	0.2-2.0	0.4-2.7	0.45-3.2	0.45-3.3	0.45-3.4
OD(mm)	35.0-40.0	41.0-45.0	46.0-50.0	51.0-55.0	56.0-60.0	61.0-65.0
WT(mm)	0.5-3.5	0.6-3.8	0.6-3.8	0.6-4.4	0.8-4.6	0.9-4.7
OD(mm)	66.0-70.0>	71.0-75.0>	76.0-95.0	96.0-114.0	-	-
WT(mm)	1.0-4.9	1.2-6.0>	1.2-7.1	1.3-7.5	-	-

Application Area

The titanium tube is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium tubes as standard tubes for their units

Titanium pipes implement two national standards according to the different requirements and performance: GB/T3624-2010 GB/T3625-2007 ASTM B337 338 Supply grades: TA0, TA1, TA2, TA9, TA10, BT1-00, BT1-0, Gr1, Gr2

Packing & Delivery

Tag:

Contact Person :	Pax Yang
Tel :	+862569521609
Fax :	86-25-6952-5709
