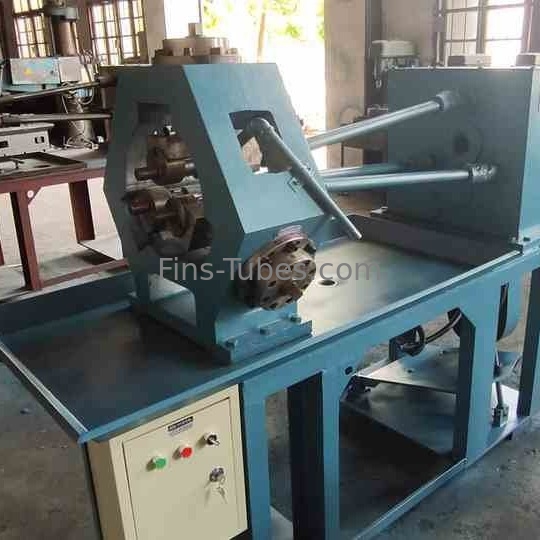

Extruded High Fin Tube Machine with CS / SS / AS / Copper / Alu / Titanium Tubes

1 set
MOQ
Minimum order quantity: 1 set $8,000.00
Price
Extruded High Fin Tube Machine with CS / SS / AS / Copper / Alu / Titanium Tubes
Features Gallery Product Description Request A Quote
Features
Specifications
Fin Angle: 45-90°
Fin Height: 4-20mm
Fin Number: 4-10
Fin Pitch: 2-6mm
Fin Thickness: 0.2-0.6mm
Fin Tube Diameter: 6-25mm
Fin Tube Length: 50-200mm
Frequency: 50Hz
Material: Stainless Steel
Power: 220V
Product Name: Fin Tube Machine
Size: 10X10X10 Cm
Speed: High Speed
Type: Automatic
Weight: 68.000 Kg
High Light:

SS Extruded Fin Tube Machine

,

ss fin tube machine

,

CS High Fins Tubes Machine

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Model Number: Fin Tube Machine
Payment & Shipping Terms
Packaging Details: Packing with Wooden case
Delivery Time: 1-3 weeks
Payment Terms: T/T, D/P, D/A, Western Union, MoneyGram
Product Description

DELLOK Extruded High Fins Tubes Machine with raw materials CS / SS / AS / Copper / Alu / Titanium Tubes





About Us



DELLOK (YONGHUI RADIATING PIPE MANUFACTURING CO.,LTD.) was established in 2002, which is located in Jiangsu, China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above. Quality is the theme of eternal pursuit of winner -Production workshop- Meticulous works, standardized management system and systematic quality assurance are Dellok(YONGHUI)'s best commitment to quality. In Dellok(YONGHUI), the quality control is not only the detection of the final process, but throughout the entire production process. We implement a set of quality control and assurance systems. Each batch of pipes is sampled and tested, and records are kept as a quality guarantee for the final product.






                                   Extruded High Fin Tube Machine with CS / SS / AS / Copper / Alu / Titanium Tubes 0




Product descriptions from the supplier

Mainframe shape size 4950×900×1500mm
Connecting table size 580×900×1000mm
Working wheelbase 1000mm
Main shaft speed 800r/min
Trolley route 1200mm/min
Precision 0.01mm
Fin pitch 2.3~8.5mm
Fin height 7.5~16.5mm
Trolley aperture Φ19~Φ38 mm
Trolley stroke 1000mm/2000mm
Spindle frequency conversion motor 11KW
Trolley frequency conversion motor 3.7KW
Cooling pump motor 120W
Lubricating pump motor 180W






 Extruded High Fin Tube Machine with CS / SS / AS / Copper / Alu / Titanium Tubes 1



As a factory supplier profit / Assurance for you:

1. 100% Product quality protection
2. 100% On-time shipment protection
3. 100% Payment protection
4. TOP 1 "fin tube&heat exchanger" factory
5. We passed CE & ISO &ROHS certified

FAQ



Q1: Are you trading company or manufacturer?

A: We are manufacture factory and we can accept OEM order. Welcome to visit our factory and check our products.



Q2: Can I have a sample ?

A: Yes, welcome to place sample order to test and check quality. Mixed samples are also OK.



Q3: What is your the lead time for production?

A: Generally Sample needs 1-3 days, mass production needs 15-30 days, also depends on your request.



Q4: What is the warranty for your products?

A :We provide one year warranty for the products.
