Dellok Extruded Finned Copper Tube Making Machine

1 set
MOQ
>= 1 sets $8,000.00
Price
Dellok  Extruded Finned Copper Tube Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity: 2-4pcs/min
Control System: PLC
Dimension: 1000*1000*1200mm
Fin Height: 0.2-2.0mm
Fin Pitch: 2.0-8.0mm
Fin Thickness: 0.2-0.4mm
Material: Stainless Steel
Power: 220V/380V
Product Name: Fin Tube Machine
Speed: 50-100m/min
Tube Diameter: φ8-φ50mm
Tube Thickness: 0.3~0.45mm
Type: Automatic
Warranty: 1 Year
Weight: 1415kg
High Light:

extruded fin tube machine

,

ss fin tube machine

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Payment & Shipping Terms
Packaging Details: Packing with Wooden case
Delivery Time: 1-3 weeks
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5 Set/Sets per Month
Product Description

Dellok Extruded Finned Copper Tube Making Machine





About us



Professional heat exchanger factory with 20 years of experience, providing you with one-stop heat transfer solutions to design different heat exchangers according to your purposes (metallurgy, food, petrochemical, pharmaceutical, beverage, wastewater, refrigeration, etc...)

Dellok Young is a professional manufacturer of various heat exchangers integrating R&D, design, production and sales. The heat exchangers produced are mainly used in petrochemical, electric power, papermaking, building heating, mining and other industries, such as air heaters, food industry plant protein powder, starch and other air heater spray drying systems.

The company now has a professional technical innovation team and professional after-sales personnel. The company's production plant covers an area of approximately 18,000 square meters, has multiple professional and advanced CNC and automated production equipment, and has obtained a number of professional certificates and patents.
The company has a professional foreign trade team and has trade cooperation with various regions. Some global partners conducted on-site inspections of the production plants and were very satisfied with the inspection results and established long-term strategic cooperative relationships with our company.

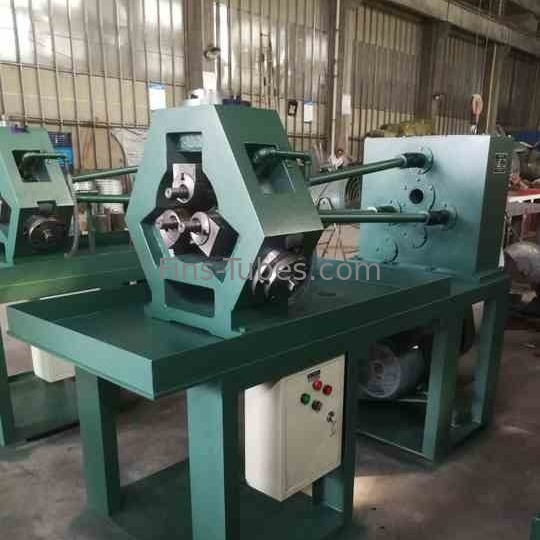

                                        Dellok  Extruded Finned Copper Tube Making Machine 0

Dellok  Extruded Finned Copper Tube Making Machine 1                     Dellok  Extruded Finned Copper Tube Making Machine 2








MAIN TECHNICAL PARAMETERS





The distance from center line of horizontal spindle to working table
345mm
Distance of work table above ground
718mm
Rotation speed of output shaft
80rpm; 120rpm
Diameter of blade shaft
ф45mm
Range of fin outside diameter
Φ18-Φ70mm
Minimal fin root diameter
Φ15mm
Range of fin pitch
0-8.00mm
Range of finned tube length
0-15000mm
Main motor power (optional)
11KW
Cooling pump model
DB-25, 120W
Machine weight
1415kg
External dimension (LxWxH)(mm)
2150*760*1430










-Tool holder and tool holder body adopt advanced dual-circular-key structure, big torque withstanding, accurate and reliable displacement.
- Tool holder adopts split type design, convenient for blade debugging, cleaning & fixing.
- Blade spindle bushing adopts special taper sliding bearings brings max. bushing utilization.
- Universal joints and spindles are of spline linking; And coolant cooling tank is separate to main rolling machine.
- Special extruding blade design, high efficient, long blade life.







Dellok  Extruded Finned Copper Tube Making Machine 3             Dellok  Extruded Finned Copper Tube Making Machine 4








FAQ



Q: What is the warranty for your products?

A :We provide one year warranty for the products.



Q: What payment terms do you accept?

A :Trade assurance,TT,Western Union.



Q: What are the modes of transportation of machines?

A: Air freight, sea freight express delivery, etc. We will choose the most suitable transportation method according to your requirements.Low fin Tube
