DELLOK 316 Stainless Steel G Finned Tube For Radiator

1 Piece
MOQ
$10 - 100 /Piece/Pieces
Price
DELLOK 316 Stainless Steel G Finned Tube For Radiator
Features Gallery Product Description Request A Quote
Features
Specifications
Fin Height: 2.5mm
Fin Thickness: 0.25mm
Fin Type: Louver
Heat Transfer Area: 0.4m2/m
Material: Stainless Steel
Max Working Pressure: 2.5MPa
Max Working Temperature: 400℃
Pressure Drop: ≤0.2Kpa/m
Size: Customized
Surface Treatment: Polishing
Tube Diameter: 19mm
Tube Length: Customized
Tube Material: Carbon Steel
Tube Surface Treatment: Galvanized
Tube Thickness: 1.2mm
High Light:

Aluminum Embedded Fin Tube

,

G Type Embedded Fin Tube

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Embedded Fin Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Product Description

DELLOK 316 Stainless Steel G Finned Tube For Radiator





About Us



Dellok(YONGHUI Radiating Pipe Manufacturing Co.,Ltd) was established in 2002, which is located in Nanjing, China.We joined HARBIN AIR CONDITIONING CO., LTD. in 2022 and became the most professional industry manufacturer in China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above.

Quality is the theme of eternal pursuit of winner




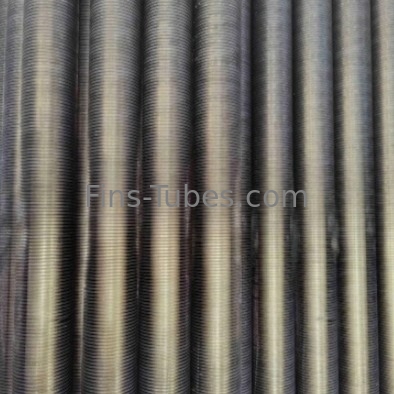

                              DELLOK 316 Stainless Steel G Finned Tube For Radiator 0



Product Description





The Imbedded Fin, also known as a G-fin (grooved fin), is widely used throughout the world. This fin is considered to have a mechanical bond to the tube and has negligible deterioration of the fin bond with heat cycling. The fin is usually specified for high temperature applications with the fin material being the limiting factor. Typically, this fin is produced out of aluminum or copper fin strip. This fin type is also suitable for carbon steel or stainless steel fin materials, but requires special tooling and processing of these steel fin strips.

Preforming is not required for aluminum fin on carbon steel tubes, but is required for copper or steel fin and in the case of aluminum fin on aluminum tubes. Dovetail rollers are used to preform the fin and facilitates insertion into the groove. When standard groove depth is used for aluminum or copper fin strip, the fin strip width is always .012” larger than the fin height, i.e. .625” plus .012” = .637”.






DELLOK 316 Stainless Steel G Finned Tube For Radiator 1





G Finned Tube Manufacturing Process:





The manufacturing tool is made up of 2 non-cutting plates set at 90° to the axis of the base tubes (pipes) (core tube).The first plate effects a groove for metal spinning. The second directs the ribbon in the groove and sets the fin foot in the groove through pressure on the metal displaced for the groove. A similar plate made of tungsten carburate allows us to manufacture. G embedded fin tubes ( fin tubes )with base tubes (pipes) (core tube) made of austenitic steel or exotic alloys.





DELLOK 316 Stainless Steel G Finned Tube For Radiator 2





G Finned Tube Advantages:





High fin stability, excellent heat transfer, high operating temperature.

The fin/tube wall contact is constant because of the setting and makes it possible to use a wall temperature of up to 450°C.

The fin is set throughout its length and consequently does not unwind even when partially uprooted.

This kind of finned tube is one of optimum choices for having good effectiveness/cost ratio.





DELLOK 316 Stainless Steel G Finned Tube For Radiator 3







G Finned Tube Specifications





Product Specification
Tube OD 19~51 (mm) 3/8”~2”
Tube Wall Thk 2.11~3.5(mm) 0.083”~0.138”
Tube Length ≤18,500 (mm) ≤60.7 ft
Fin Thk 0.3~0.5 (mm) 0.012”~0.02”
Fin Height 10~16 (mm) 0.394”~0.63”
Fin Pitch 100~433 FPM 3~11 FPI
Fin Type G
Material Combinations
Fin Material Aluminum (most common grade:Alu.1100, Alu.1060, Alu. 6063)
Copper
Tube Material C.S. (most common grade: A179, A192,SA210 GrA1/C,A106 Gr B )
S.S. (most common grade: TP304, 316)
Copper (most common grade:UNS12200,14200, 70600, CuNi70/30, CuNi 90/10)
Titanium (most common grade: B338Gr2)
Applied 400°C
Temperature
Type of Service

High temperature









FAQ





Q1: Are you trading company or manufacturer?

A: We are manufacture factory and we can accept OEM order. Welcome to visit our factory and check our products.



Q2: Can I have a sample ?

A: Yes, welcome to place sample order to test and check quality. Mixed samples are also OK.



Q3: What is your the lead time for production?

A: Generally Sample needs 1-3 days, mass production needs 15-30 days, also depends on your request.



Q4: What is the warranty for your products?

A :We provide one year warranty for the products.



Q5: What payment terms do you accept?

A :Trade assurance,TT,Western Union.
