DELLOK  Aluminum Embedded Fin Tube For Bolier
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Air Conditioner/Heat Exchanger/Condenser/Evaporator
Fin Height: 3-20mm
Fin Pitch: 2.5-12mm
Fin Surface Treatment: Galvanized/Polishing/Anodizing
Fin Thickness: 0.15-0.5mm
Fin Type: Louver/Wavy/Plain
Material: Aluminum/Copper/Stainless Steel
Tube Diameter: 7-19mm
Tube Length: 50-6000mm
Tube Material: Carbon Steel/Stainless Steel/Copper/Aluminum
Tube Shape: Round/Square
Tube Surface Treatment: Galvanized/Polishing/Anodizing
Tube Thickness: 0.3-1.2mm
High Light:

Aluminum Embedded Fin Tube

,

G Type Embedded Fin Tube

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Embedded Fin Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Product Description

DELLOK Aluminum Embedded Fin Tube For Bolier





About us



Professional heat exchanger factory with 20 years of experience, providing you with one-stop heat transfer solutions to design different heat exchangers according to your purposes (metallurgy, food, petrochemical, pharmaceutical, beverage, wastewater, refrigeration, etc...)

Dellok Young is a professional manufacturer of various heat exchangers integrating R&D, design, production and sales. The heat exchangers produced are mainly used in petrochemical, electric power, papermaking, building heating, mining and other industries, such as air heaters, food industry plant protein powder, starch and other air heater spray drying systems.

The company now has a professional technical innovation team and professional after-sales personnel. The company's production plant covers an area of approximately 18,000 square meters, has multiple professional and advanced CNC and automated production equipment, and has obtained a number of professional certificates and patents.
The company has a professional foreign trade team and has trade cooperation with various regions. Some global partners conducted on-site inspections of the production plants and were very satisfied with the inspection results and established long-term strategic cooperative relationships with our company.

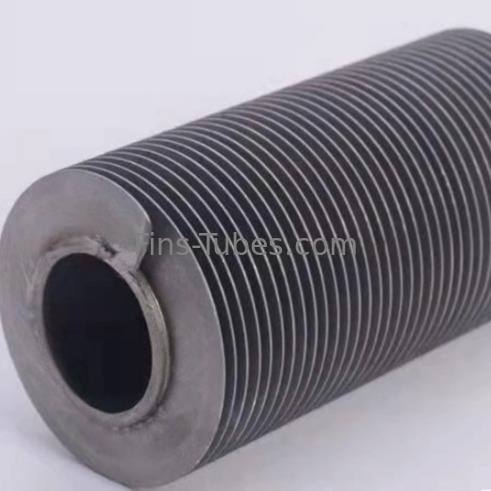

                                DELLOK  Aluminum Embedded Fin Tube For Bolier 0

Product Description





Aluminum Embedded Finned Tubes consists of aluminum fin strip that is mechanically embedded into the wall of the tube. The embedding process is controlled by tooling that first plows a groove into the tubes outside diameter, then guides the base of the fin into the groove and finally locks the fin in place by rolling the groove closed on the base of the fin. This strong mechanical bond holds up to vibration and continuous thermal cycling and can withstand temperatures far greater than those for aluminum L-foot finned tubes. Typical fin spacing is 10 fins per inch of tube length — this can be varied.



DELLOK  Aluminum Embedded Fin Tube For Bolier 1



G Finned Tube Manufacturing Process





A helical groove is formed in base tube displacing of material and fin is wound into the groove under tension, followed by backfilling of the displaced material to lock the fin root into the tube.

Fin materials: Aluminium Base

Tube materials:Any readily machinable material



DELLOK  Aluminum Embedded Fin Tube For Bolier 2



G Finned Tube Advantages





High fin stability, excellent heat transfer, high operating temperature.

The fin/tube wall contact is constant because of the setting and makes it possible to use a wall temperature of up to 450°C.

The fin is set throughout its length and consequently does not unwind even when partially uprooted.

This kind of finned tube is one of optimum choices for having good effectiveness/cost ratio.



DELLOK  Aluminum Embedded Fin Tube For Bolier 3



G Finned Tube Specifications



Product Specification
Tube OD 19~51 (mm) 3/8”~2”
Tube Wall Thk 2.11~3.5(mm) 0.083”~0.138”
Tube Length ≤18,500 (mm) ≤60.7 ft
Fin Thk 0.3~0.5 (mm) 0.012”~0.02”
Fin Height 10~16 (mm) 0.394”~0.63”
Fin Pitch 100~433 FPM 3~11 FPI
Fin Type G
Material Combinations
Fin Material Aluminum (most common grade:Alu.1100, Alu.1060, Alu. 6063)
Copper
Tube Material C.S. (most common grade: A179, A192,SA210 GrA1/C,A106 Gr B )
S.S. (most common grade: TP304, 316)
Copper (most common grade:UNS12200,14200, 70600, CuNi70/30, CuNi 90/10)
Titanium (most common grade: B338Gr2)
Applied 400°C
Temperature
Type of Service High temperature







FAQ



1. What is a fin tube?

Finned tubes are the main components of heat exchangers. They are a series of tubes where fins have been added on the outside to increase the contact area with the outside fluid, to exchange heat and between the fluid inside the tube and the fluid outside the tube.



2. Where are Fine Tubes products used?

Our main markets include the aerospace, oil and gas, nuclear, power generation, chemical process and medical device industries. However we are also developing products for emerging sectors like desalination, geothermal energy, sports and the automotive industry. We are continually innovating, so if you require tubing for other applications please get in touch and we’ll be happy to discuss your requirements.



3. What is 'G' Fin Tube or Embedded Fin Tube?

As the name suggests, the embedded fin tube or G fin tube is an extended surface fin tube where the fins are externally applied on the base tubes. A groove is formed continuously on the base tube and the fin edge is inserted in the groove. After the fin is inserted in the groove a set of rollers is used to back fill the groove and the fin is then securely embedded in the base tube.

The strength of the Embedding or more commonly known as Fin to Tube bond test is checked by hanging a 3 Kg free wight to an Isolated fin. This ensures whether the fin has been Embedded into the base tube properly.



4. What is an 'G' Fin Tube made of?

'G' Fin Tubes or Embedded Fin Tubes are made of two main components, Base Tube and Fin Strip material.We can supply the 'G' Fin Tubes in the following combinations of Base Tube and Fin Material:

Base Tube Material: Carbon Steel, Alloy Steel, Mild Steel, Stainless steel and tubes manufactured by ERW or Seamless Process.



5. Where are 'G' Fin Tubes or Embedded Fin Tubes used?

'G' Fin Tubes or Embedded Fin Tubes are mainly used in air fin coolers and many different types of air-cooled radiators. These types of 'G' Fin Tubes mainly find application in areas where the temperature for heat transfer is in a slightly higher range. The Embedded Fin Tubes are mainly used in places with higher temperature and where the working atmosphere is relatively less corrosive to the base tube.

Main industries in which the 'G' Fin Tubes find service are Process Chemical Plants, Refineries, Gas Processing Plants, Steel Plants, Power Plants, Fertilizer Manufacturing Plants, etc.



6. How do you ensure a quality product?

We always put quality as the most important thing for customers, and we control the quality from raw material inspection, production checking to water pressure test and strength test. Also the third party can be authorized to check.Incoming inspection report for bare tube & strip.

Mill test certification for bare tube

Mill test certification for fin
