DELLOK Al 1060 Extruded Finned Tube For Air-cooled Condensers
About Us
DELLOK (YONGHUI RADIATING PIPE MANUFACTURING CO.,LTD.) was established in 2002, which is located in Jiangsu, China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above. Quality is the theme of eternal pursuit of winner -Production workshop- Meticulous works, standardized management system and systematic quality assurance are Dellok(YONGHUI)'s best commitment to quality. In Dellok(YONGHUI), the quality control is not only the detection of the final process, but throughout the entire production process. We implement a set of quality control and assurance systems. Each batch of pipes is sampled and tested, and records are kept as a quality guarantee for the final product.
Extruded Fin Tube Product Description:
Extruded Fin Tubes "double-wall" construction makes them extremely durable and heat-efficient. In addition, our extruded fin tubes are designed to prevent corrosion between the fins and tube, unlike fins embedded in the exterior wall of the tube. Used properly, our tubes are entirely suitable for steam coils.
Extruded fin tubes are manufactured by a rotary extrusion process in order to obtain integral fin tubes. We manufacture them by inserting a lining in an aluminum extrusion. The extrusion is radially crushed on the lining, and the excess material is pushed into the shape of spiral fins. The extrusion process solidifies the fins and prevents the galvanic corrosion that would occur if there were two metal alloys exposed to air, as is the case with other types of fins. Compared to other similar products, our fins do not break, nor do they uncoil, and the lining does not come loose, thereby maintaining the Heat Exchanger's thermal performance.
Extruded Finned Tube Manufacturing Process:
The fins are rotary cold rolled from a smooth thick walled hollow blank tube slid over the core tube. Three multi spindle disc packs extrude the hollow blank tube into helical high fins.
During this process the inner diameter of the hollow blank tube is reduced and at the same time pressed on the core tube. This results in a mechanically solid joint. Longitudinal slots are cut into the outer periphery with inclined fin tips.
Fin Material: Aluminium.
Core Tube Material: Carbon Steel/ Carbon
Alloy Steel/Stainless Steel/ Nickel Alloys/Copper/Copper Alloys/Titanium.
Extruded Fin Tubes Advantages:
1) Thermal
The bonding of the outer and inner tubes removes the risk of loss of contact with the aluminium due to thermal stress.
Maximum operating temperature: 250°C. The transfer coeffcient remains steady. Additionally as the outer sleeve is continuous no electrolytic couple is created.
2) Mechanical
The fins are more rigid and stand the handling shocks better,compared to types "G" an "L".
Extruded Aluminum Tubing Properties:
Cold Extrusion is the manufacturing process.
Excellent Fin-to-Tube Bond
Excellent Heat Transfer Efficiency
Mechanical Resistance: Excellent (as a result, unlike other fin tubes, it can be cleaned often with high-pressure jets). As a result, downtime is reduced and total life is increased.)
Corrosion Protection: Because it completely covers the base tube, it provides excellent corrosion protection (except bare ends).
Temperature Range: Up to 300 degrees Celsius
Aluminum Extruded Tubing Applications:
These Fin Tubes find application in AIR FIN COOLERS, DRIERS, RADIATORS etc and are preferred in Industries like Food and Agriculture, Power Plants, Chemical Industries, Steel Plants, Chiller Plants etc.
Extruded Aluminum Tube Specifications:
Product Specification | ||
Tube OD | 10~51 (mm) | 0.4”~2” |
Tube Wall Thk | 1.65~3.0 (mm) | 0.065”~0.118” |
Tube Length | ≤18,500 (mm) | ≤60.7 ft |
Fin Thk | 0.3~1.2 (mm) | 0.012”~0.047” |
Fin Height | 5~16 (mm) | 0.2”~0.63” |
Fin Pitch | 100~555 (mm) | 3~14 FPI |
Fin Type | Extruded | |
Material Combinations | ||
Fin Material | Aluminum (most common grade:Alu.1100, Alu.1060, Alu. 6063) | |
Copper | ||
Tube Material | C.S. (most common grade: A179, A192,SA210 GrA1/C,A106 Gr B ) | |
S.S. (most common grade: TP304, 316, 321, 347,A789) | ||
Copper (most common grade:UNS12200,14200, 70600, CuNi70/30, CuNi 90/10) | ||
Titanium (most common grade: B338Gr2) | ||
Applied Temperature |
300°C | |
Type of Service | Medium temperature, severe atmospheric corrosive environment. |
Product Categories : Extruded Finned Tube
Fin Type: Extruded Fin Tube
Tube Material: copper, copper nickel, stainless steel, titanium etc.
Fin Material: Copper, aluminum
Aluminum extruded finned tubes using the form of the base tube covered with aluminum tube(the base tube can be carbon steel, stainless steel, copper) through machine extrusion, forming a tube fin, the fin base and the tube outer wall is close fitting, this fin tubing control can make finned tubes with high heat transfer coefficient and heat transfer performance.
Aluminum extruded finned tubes, also called [integral finned tubes" using the form of the base tube covered with aluminum tube(the base tube can be carbon steel, stainless steel, copper) through machine extrusion, forming a tube fin, the fin base and the tube outer wall is close fitting, this fin tubing control can make finned tubes with high heat transfer coefficient and heat transfer performance. Extruded Finned Tube can be made of iron, copper or aluminum tube by compound rolling, which has the advantages of tight bonding, small thermal resistance, good heat transfer performance, high strength, small flow loss, strong anti-corrosion performance, not easy to deformation under long-term hot and cold working conditions, long working life and so on.
Extruded finned tube manufacturing process
Pipe line--compressing or rolling--strip peeling--washing--pressure test--blast blowing--packaging.

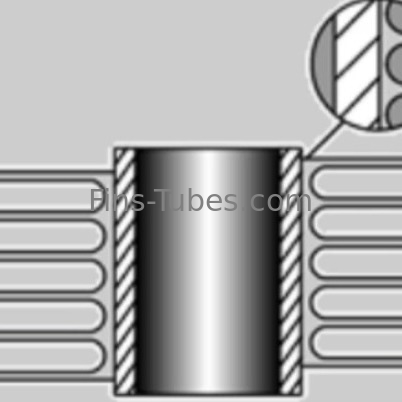

The Extruded Fin Tube is formed by a bimetallic tube consisting of an aluminum outer tube and an inner tube of almost any material. The fin is formed by rolling the material from the outside of the outer tube to provide an integrated fin with excellent heat transfer performance and life. The extruded fins provide excellent corrosion protection for the base tube.
The production method of the composite finned tube mainly includes the extrusion method: the bimetallic composite tube is lined with a mandrel, and driven by the rotation of the roller blade, the composite tube is processed on the outer surface through the cavity formed by the rolling groove and the core head Out fins. The heat transfer tube produced by this method is an organic whole with its outer tube and fins, so there is no problem of contact heat loss, and it has good performance and high heat transfer efficiency.
FAQ
1. What Does Fin Tube Mean?
A fin tube is a tube that has small fins around the outside surface. These fins act as a filter and a mechanism to transfer heat from the material inside the tube to the outside space or vice versa. Fin tubes are used in applications that require a transfer of heat from a hot fluid to a colder fluid through the tube's wall. The rate at which such heat transfer occurs depends on three factors:
The temperature difference between the two fluids.
The heat transfer coefficient between each of the fluids and the tube wall.
The surface area to which the fluid is exposed.
2. Where is finned tube heat exchanger used?
Finned tube heat exchangers generally use air to cool or heat fluids such as air, water, oil or gas, or they can be used to capture or recover waste heat. These heat exchangers can used in a broad range of industries including oil & gas, power generation, marine and HVAC&R.
3. What is extruded fin tube?
Extruded finned tubes are bimetallic tubes whose outer aluminium surface is finned by cold plastic deformation. There are two major types of finned tubes available with us, single metal tubes (also called mono metallic fin tube) and Bimetallic tube (composite extruded fin tube) .
4. Why Aluminium is recommended as a fin material?
Good corrosion resistance, formability and high thermal conductivity make aluminium an ideal material for the construction of these heat exchangers. A typical brazed heat exchanger (radiator or condenser) comprises fins, tubes, sideplates and headerplates.
5. Where are extruded fin tubes used?
Extruded Fin Tubes are widely used in the refinery, petrochemical and chemical industry for:
Air-cooled condensers
Air-cooled coolers for products
Gas coolers
Gas heaters
6. How do you ensure a quality product?
We adhere to an in-house Quality System (or QMS) based on Industry Standards such as ASME, the National Board of Boilers & Pressure Vessels, and customer requirements. Our quality system is documented, audited, and enforced by our Quality Control department.
