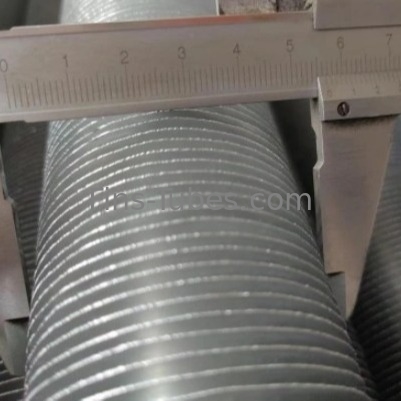

DELLOK SA179 AL1060 Extruded Bimetallic Fin Tube Heat Exchanger

1 Piece
MOQ
$10 - 100 /Piece/Pieces
Price
DELLOK SA179 AL1060 Extruded Bimetallic Fin Tube Heat Exchanger
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Heat Exchanger
Fin Height: 2-25mm
Fin Number: 1-20
Fin Pitch: 2-20mm
Fin Type: Strip
Length: Customized
Material: Aluminum
Processing Method: Extrusion
Shape: Round
Surface Treatment: Anodizing
Thickness: 0.2-3mm
Tube Diameter: 6-25mm
Tube Length: Customized
Tube Material: Aluminum
Tube Thickness: 0.2-2mm
High Light:

Pellet Machine Die

,

Pellet Machine Roller

,

Pellet Ring Die

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Extruded Fin Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Product Description

DELLOK SA179 AL1060 Extruded Bimetallic Fin Tube Heat Exchanger





About Us



DELLOK (YONGHUI RADIATING PIPE MANUFACTURING CO.,LTD.) was established in 2002, which is located in Jiangsu, China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above. Quality is the theme of eternal pursuit of winner -Production workshop- Meticulous works, standardized management system and systematic quality assurance are Dellok(YONGHUI)'s best commitment to quality. In Dellok(YONGHUI), the quality control is not only the detection of the final process, but throughout the entire production process. We implement a set of quality control and assurance systems. Each batch of pipes is sampled and tested, and records are kept as a quality guarantee for the final product.








Extruded Fin Tube Product Description:



This fin type is formed from a bi-metallic tube consisting of an aluminum outer tube and an inner tube of almost any material. The fin is formed by rolling material from the outside of the exterior tube to produce an integral fin with excellent heat transfer properties and longevity. Extruded fin offers excellent corrosion protection of the base tube and excludes virtually all exposure to any outside fluid.



Extruded Finned Tube





Extruded Finned Tube Manufacturing Process:



A polished and deoiled base tube is set in an aluminium sleeve. The whole goes through the fin-machine which consists of three spindles set at 120° each on bearing a stack of plates. These plates, stacked in from and diameter first build the fin, then bond the outer and inner tubes together. In certain cases (high air speed) the fins are serrated after fin process so as to increase the heat transfer coefficient.





Extruded Fin Tubes





Extruded Fin Tubes Advantages:





100% fin-to-tube bond providing exceptional efficiency and longevity.

Excellent corrosion protection on the base tube.

Easy to clean with a high-pressure water jet without deforming the fins.

As the outer sleeve is continuous No galvanic corrosion between the tube and fins.

The bonding of the outer and inner tubes removes the risk of loss of contact with the aluminium due to thermal stress and fins are vibration resistant.

Higher heat transfer performance for the life of the unit.

Extruded Finned tubes are commonly used in applications with temperature up to 325 °c.



Extruded Aluminum Tubing





Extruded Aluminum Tubing Properties:



Max. Working Temperature: 300 °C

Atmospheric Corrorsion Resistance: OK

Mechanical Resistance: Poor

Fin Material: Copper, Aluminum

Base Tube materials: Any material available, such as Carbon steel Tube, A179, A192, A210, stainless tube A269/A213 T5 T11 T22 304 316





Aluminum Extruded Tubing








Aluminum Extruded Tubing Applications:



Extruded Fin Tubes are widely used in the refinery, petrochemical and chemical industry for:

Air-cooled condensers

Air-cooled coolers for products

Gas coolers

Gas heaters



Extruded Fin Tube







Extruded Aluminum Tube Specifications:



Product Specification
Tube OD 10~51 (mm) 0.4”~2”
Tube Wall Thk 1.65~3.0 (mm) 0.065”~0.118”
Tube Length ≤18,500 (mm) ≤60.7 ft
Fin Thk 0.3~1.2 (mm) 0.012”~0.047”
Fin Height 5~16 (mm) 0.2”~0.63”
Fin Pitch 100~555 (mm) 3~14 FPI
Fin Type Extruded
Material Combinations
Fin Material Aluminum (most common grade:Alu.1100, Alu.1060, Alu. 6063)
Copper
Tube Material C.S. (most common grade: A179, A192,SA210 GrA1/C,A106 Gr B )
S.S. (most common grade: TP304, 316, 321, 347,A789)
Copper (most common grade:UNS12200,14200, 70600, CuNi70/30, CuNi 90/10)
Titanium (most common grade: B338Gr2)
Applied
Temperature
300°C
Type of Service Medium temperature, severe atmospheric corrosive environment.








Extruded Aluminum Tube





Product Categories : Extruded Finned Tube



Product description

Fin Type: Extruded Fin Tube

Tube Material: copper, copper nickel, stainless steel, titanium etc.

Fin Material: Copper, aluminum





Extruded Aluminum Tubing




Aluminum extruded finned tubes using the form of the base tube covered with aluminum tube(the base tube can be carbon steel, stainless steel, copper) through machine extrusion, forming a tube fin, the fin base and the tube outer wall is close fitting, this fin tubing control can make finned tubes with high heat transfer coefficient and heat transfer performance.

Aluminum extruded finned tubes, also called [integral finned tubes" using the form of the base tube covered with aluminum tube(the base tube can be carbon steel, stainless steel, copper) through machine extrusion, forming a tube fin, the fin base and the tube outer wall is close fitting, this fin tubing control can make finned tubes with high heat transfer coefficient and heat transfer performance. Extruded Finned Tube can be made of iron, copper or aluminum tube by compound rolling, which has the advantages of tight bonding, small thermal resistance, good heat transfer performance, high strength, small flow loss, strong anti-corrosion performance, not easy to deformation under long-term hot and cold working conditions, long working life and so on.





Extruded Finned Tube










Extruded finned tube manufacturing process



Pipe line--compressing or rolling--strip peeling--washing--pressure test--blast blowing--packaging.

The Extruded Fin Tube is formed by a bimetallic tube consisting of an aluminum outer tube and an inner tube of almost any material. The fin is formed by rolling the material from the outside of the outer tube to provide an integrated fin with excellent heat transfer performance and life. The extruded fins provide excellent corrosion protection for the base tube.

The production method of the composite finned tube mainly includes the extrusion method: the bimetallic composite tube is lined with a mandrel, and driven by the rotation of the roller blade, the composite tube is processed on the outer surface through the cavity formed by the rolling groove and the core head Out fins. The heat transfer tube produced by this method is an organic whole with its outer tube and fins, so there is no problem of contact heat loss, and it has good performance and high heat transfer efficiency.



Extruded Aluminum Tube






FAQ





1. What Does Fin Tube Mean?

A fin tube is a tube that has small fins around the outside surface. These fins act as a filter and a mechanism to transfer heat from the material inside the tube to the outside space or vice versa. Fin tubes are used in applications that require a transfer of heat from a hot fluid to a colder fluid through the tube's wall. The rate at which such heat transfer occurs depends on three factors:

The temperature difference between the two fluids.

The heat transfer coefficient between each of the fluids and the tube wall.

The surface area to which the fluid is exposed.



2. Where is finned tube heat exchanger used?

Finned tube heat exchangers generally use air to cool or heat fluids such as air, water, oil or gas, or they can be used to capture or recover waste heat. These heat exchangers can used in a broad range of industries including oil & gas, power generation, marine and HVAC&R.



3. What is extruded fin tube?

Extruded finned tubes are bimetallic tubes whose outer aluminium surface is finned by cold plastic deformation. There are two major types of finned tubes available with us, single metal tubes (also called mono metallic fin tube) and Bimetallic tube (composite extruded fin tube) .
