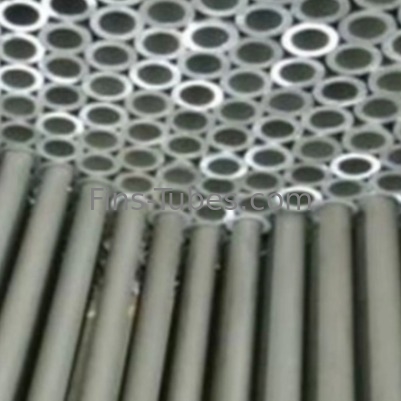

DELLOK SUS316 Seamless Steel Aluminum Finned Tube

1 Piece
MOQ
$10 - 1000 /Piece/Pieces
Price
DELLOK SUS316 Seamless Steel Aluminum Finned Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Heat Exchanger, Condenser, Evaporator
Fin Height: 0.5mm-6mm
Fin Pitch: 2.5mm-20mm
Fin Thickness: 0.1mm-1.2mm
Fin Type: Louver, Plain, Serrated
MOQ: 1 Piece
Material: Aluminum, Copper, Stainless Steel
Shape: Round, Square, Rectangular
Surface Treatment: Anodizing, Polishing, Coating
Tube Diameter: 6mm-50mm
Tube Length: Customized
Tube Material: Aluminum, Copper, Stainless Steel
Tube Thickness: 0.3mm-2.5mm
High Light:

Aluminium Extruded Fin Tube

,

Finned Aluminum Extrusion Tube

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Extruded Fin Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 10000 Piece/Pieces per Month
Product Description

DELLOK SUS316 Seamless Steel Aluminum Finned Tube





About us



DELLOK (YONGHUI RADIATING PIPE MANUFACTURING CO.,LTD.) was established in 2002, which is located in Jiangsu, China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above. Quality is the theme of eternal pursuit of winner -Production workshop- Meticulous works, standardized management system and systematic quality assurance are Dellok(YONGHUI)'s best commitment to quality. In Dellok(YONGHUI), the quality control is not only the detection of the final process, but throughout the entire production process. We implement a set of quality control and assurance systems. Each batch of pipes is sampled and tested, and records are kept as a quality guarantee for the final product.



Product Description



The finned tube provide by us is Extruded Type, which is different from the ones through HF Welding and Wrapping method. The fins are obtained by roll forming the outer surface of a soft seamless plain tube. The technology simply squeezes the wall thickness transforming into straight fins on the tube. So the fin and the tube are integrated and inseparable, which avoids the heat resistance between fin and tube, and optimizes heat exchange efficiency. Based on this structure, the Extruded type can survive more severe working conditions than other finned tubes. Also it, on the other hand, shows several unique features such as enhanced physical structure, resistance to vibration, anti-corrosion ability, and long service life, etc.





Extruded Finned Tube







Under this technology, there are two major types of finned tubes available with us, Single metal tubes and Bimetallic tubes. The former uses Copper, Aluminum, and Copper Nickel alone. The later has a core tube on the inside made of harder material. In this case, the outer tube is rolled onto the core tube in order to provide for a tight bond and good thermal contact between the two tubes.



Extruded Aluminum Tubing





Customized finned tube is available. The specification table is followed below. If required, the fin tube can be made into various forms after soft annealing process. They can be used for cooling and heating in a large scale of conditions. For example, coils in water heater, oil cooler in large machines, heat transfer part in boiler and heat recovering system, air-conditioning and refrigeration industry as condenser part or evaporator part, etc.





Aluminum Extruded Tubing



The material for our fin tube covers Copper(C10200, C12000, C12200), Copper Nickel(C70600), Aluminum(1060), Aluminum alloy, Aluminum-Steel(bimetallic), Aluminum-Stainless Steel(bimetallic), Aluminum-Copper(bimetallic), Aluminum-Copper Nickel(bimetallic), Copper-Copper Nickel(bimetallic).





Extruded Fin Tubes





Advantage



1. Optimized inner to outer surface ratio

2. High heat exchange rate

3. Enhanced structure due to the roll forming process

4. Flexible as straight tube or bent or coiled heat exchangers

5. Low heat resistance between fins and tube

6. Strong resistance to shock and thermal expansion and contraction

7. Cost and energy saving due to long service life and high exchange rate



Extruded Finned Tube Specifications



Extruded Fin Tubes



Application Scenarios



The fin tubes are mainly used in heating(gas-fired boilers, condensing boilers, flue gas condensers), in mechanical and automotive engineering(oil coolers, mine coolers, air coolers for diesel engines), in chemical engineering(gas coolers and heater, process cooler), in power plants(air cooler, cooling tower), and in nuclear engineering(uranium enrichment plants).



FAQ



Q: What is your the lead time for production?

A: Generally Sample needs 1-3 days, mass production needs 15-30 days, also depends on your request.

Q: What is the warranty for your products?

A :We provide one year warranty for the products.

Q: What payment terms do you accept?

A :Trade assurance,TT,Western Union.

Q: What are the modes of transportation of machines?

A: Air freight, sea freight express delivery, etc. We will choose the most suitable transportation method according to your requirements.
