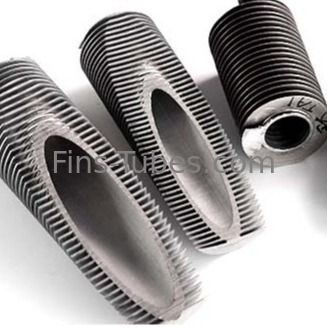

DELLOK Aluminum Bimetal Extruded Finned Tube Of Good Quality
About us
DELLOK (YONGHUI RADIATING PIPE MANUFACTURING CO.,LTD.) was established in 2002, which is located in Jiangsu, China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above. Quality is the theme of eternal pursuit of winner -Production workshop- Meticulous works, standardized management system and systematic quality assurance are Dellok(YONGHUI)'s best commitment to quality. In Dellok(YONGHUI), the quality control is not only the detection of the final process, but throughout the entire production process. We implement a set of quality control and assurance systems. Each batch of pipes is sampled and tested, and records are kept as a quality guarantee for the final product.
Extruded finned tube features:
The finned tube provide by us is Extruded Type, which is different from the ones through HF Welding and Wrapping method. The fins are obtained by roll forming the outer surface of a soft seamless plain tube. The technology simply squeezes the wall thickness transforming into straight fins on the tube. So the fin and the tube are integrated and inseparable, which avoids the heat resistance between fin and tube, and optimizes heat exchange efficiency. Based on this structure, the Extruded type can survive more severe working conditions than other finned tubes. Also it, on the other hand, shows several unique features such as enhanced physical structure, resistance to vibration, anti-corrosion ability, and long service life, etc.

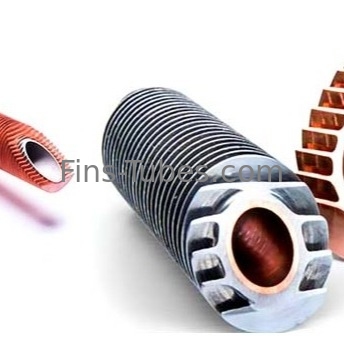

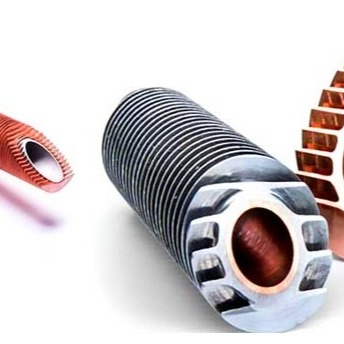

Under this technology, there are two major types of finned tubes available with us, Single metal tubes and Bimetallic tubes. The former uses Copper, Aluminum, and Copper Nickel alone. The later has a core tube on the inside made of harder material. In this case, the outer tube is rolled onto the core tube in order to provide for a tight bond and good thermal contact between the two tubes.
Customized finned tube is available. The specification table is followed below. If required, the fin tube can be made into various forms after soft annealing process. They can be used for cooling and heating in a large scale of conditions. For example, coils in water heater, oil cooler in large machines, heat transfer part in boiler and heat recovering system, air-conditioning and refrigeration industry as condenser part or evaporator part, etc.
The material for our fin tube covers Copper(C10200, C12000, C12200), Copper Nickel(C70600), Aluminum(1060), Aluminum alloy, Aluminum-Steel(bimetallic), Aluminum-Stainless Steel(bimetallic), Aluminum-Copper(bimetallic), Aluminum-Copper Nickel(bimetallic), Copper-Copper Nickel(bimetallic).
Advantage:
1. Optimized inner to outer surface ratio
2. High heat exchange rate
3. Enhanced structure due to the roll forming process
4. Flexible as straight tube or bent or coiled heat exchangers
5. Low heat resistance between fins and tube
6. Strong resistance to shock and thermal expansion and contraction
7. Cost and energy saving due to long service life and high exchange rate
Extruded Finned Tube Specifications:
Application Scenarios :
The fin tubes are mainly used in heating(gas-fired boilers, condensing boilers, flue gas condensers), in mechanical and automotive engineering(oil coolers, mine coolers, air coolers for diesel engines), in chemical engineering(gas coolers and heater, process cooler), in power plants(air cooler, cooling tower), and in nuclear engineering(uranium enrichment plants).
Company Profile:
Our company is a high-tech enterprise integrating research, the design, manufacturing and the installation of thermal conversion equipment. our company specializes in the production of cooper tube, metal tubes and Aluminum tube extrude finned tube, high frequency finned tube, laser welded finned tube, U bent tubes, coil, heat exchanger.
Our company has a 12,000 square meters workshop, we have a fully automation numerical control cutting machine, high frequency welded finned tube line, laser welded finned tube line, extruded finned tube line. Guided by customer need, our company continues to provide high-quality fin tubes and heat exchanger for the global thermal energy industry. Our company has a professional team composed of several thermology doctors, masters and related engineers. We can provide non-standard thermal conversion products according to customer needs, to meet the needs of various customers.
Product Packaging:
We can package the products according to the customer's requirements to ensure the safe arrival of the products in all kinds of transportation scenarios. If you have special requirements on packaging, please contact us.
FAQ
Q: What is your the lead time for production?
A: Generally Sample needs 1-3 days, mass production needs 15-30 days, also depends on your request.
Q: What is the warranty for your products?
A :We provide one year warranty for the products.
Q: What payment terms do you accept?
A :Trade assurance,TT,Western Union.
Q: What are the modes of transportation of machines?
A: Air freight, sea freight express delivery, etc. We will choose the most suitable transportation method according to your requirements.
