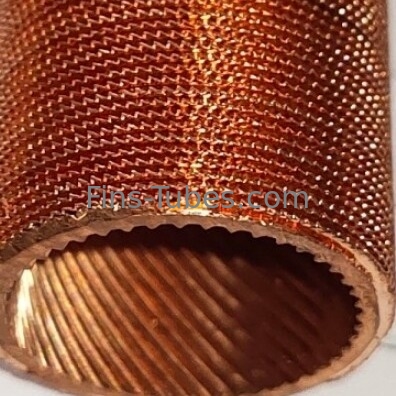

DELLOK Air Cooler Extruded Finned Tubes

1 Piece
MOQ
$50 - 1000 /Piece/Pieces
Price
DELLOK  Air Cooler Extruded Finned Tubes
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Air Conditioner/Radiator
Fin Height: 2.0mm
Fin Pitch: 2.5mm
Fin Thickness: 0.15mm
Fin Type: Low Fin
Material: Aluminum/Copper
Size: Customized
Surface Treatment: Anodizing/Polishing
Tube Diameter: 7.94mm
Tube Length: Customized
Tube Material: Aluminum/Copper
Tube Wall Thickness: 0.3mm
Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: API, CE, ISO9001
Model Number: Low Fin Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Product Description

DELLOK Air Cooler Extruded Finned Tubes







About us



Professional heat exchanger factory with 20 years of experience, providing you with one-stop heat transfer solutions to design different heat exchangers according to your purposes (metallurgy, food, petrochemical, pharmaceutical, beverage, wastewater, refrigeration, etc...)

Dellok Young is a professional manufacturer of various heat exchangers integrating R&D, design, production and sales. The heat exchangers produced are mainly used in petrochemical, electric power, papermaking, building heating, mining and other industries, such as air heaters, food industry plant protein powder, starch and other air heater spray drying systems.

The company now has a professional technical innovation team and professional after-sales personnel. The company's production plant covers an area of approximately 18,000 square meters, has multiple professional and advanced CNC and automated production equipment, and has obtained a number of professional certificates and patents.
The company has a professional foreign trade team and has trade cooperation with various regions. Some global partners conducted on-site inspections of the production plants and were very satisfied with the inspection results and established long-term strategic cooperative relationships with our company.




                                             DELLOK  Air Cooler Extruded Finned Tubes 0





Product Description



This integral low finned tubes are widely used as heat transfer tubes because of their large external surface area and high heat transfer performance compared with a plain tube.This enhanced surface fin tubes allows our customers to either reduce the size of the heat exchanger or increase its performance.The low finned tubes are designed to meet the most efficient and durable thermal performance for the most challenging situations and long lasting service life.Integral Low Fin tubing is kind of single metal fin tube, which is a type of extruded tubing that consists of small low fins. The low fin tube is very similar to the extruded "high fin" types but these tubes have the same diameter as the base tube.Low Fin Enhanced tubes can be used in stand shell and tube baffles and tube sheets. The primary advantage for the low fin tube is providing surface enhancement and better heat transfer over smooth tubing.Low finned tubes have been successfully used for controlling the temperature of gases and liquids or for evaporating and condensing refrigerants. As mentioned before, due to their enlarged heat transfer surfaces, they provide considerable potential for savings by reducing the tube length that is needed to achieve the required performance of the unit.Integral low fin tube for use in situations where extended surface is required, but lack of space or heat exchanger type dictates otherwise.



DELLOK  Air Cooler Extruded Finned Tubes 1





Manufacturing Process:



The Tube and Fin are in same material. After rolling process, the outer surface of tube is formed with thread, which makes the finned tube have a higher heat transfer capacity.



DELLOK  Air Cooler Extruded Finned Tubes 2



Integral Low Fin TubeApplications



Low-Fin Tubes are used in shell and tube type heat exchangers to improve energy efficiency in refining, petrochemical, LNG, power generation, refrigeration, heating and air conditioning plants world-wide.

DELLOK  Air Cooler Extruded Finned Tubes 3



Integral Low Fin Tube Specifications





Product Specification
Tube OD 12.7~31.75 (mm) 1/4”~1 1/4”(NPS)
Tube Wall Thk 1.65~3.0 (mm) 0.065”~0.118”
Tube Length ≤18,500 (mm) ≤60.7 ft
Fin Thk 0.3~0.5 (mm) 0.0118"~0.0197”
Fin Height 0.9~1.3 (mm) 0.0354”~0.0512”
Fin Pitch 666~1111 FPM 16~30 FPI
Fin Type Integral Low
Material
Tube Material C.S., S.S., A.S., Copper, Titanium
Applied 415°C

Temperature





FAQ



1. What is the fin efficiency?

Fin efficiency is defined as the ratio of actual heat flow of the fin to that which would be obtained with a fin of constant temperature uniformly equal to the base surface temperature, that is, one with infinite thermal conductivity.



2. What are low finned tubes?

Low Finned tube is a finned tube obtained through plastic cold deformation. The method consists in realizing, from a smooth tube, fins with a particular geometric form without removing material; this plastic deformation causes an increment of heat exchange efficiency, and allows to reduce the heat exchanger size.



3. How are low fin tubes made?

Low finned tubes involve rotational processing of the outer surface of steel tubes to create a fin shape. A steel pipe length of 25.4 mm (1 inch) per fin and 19 fins is a design often used. We can also produce units with 26 fins.

4. What are advantages of integral low finned tubes?



Provides 2.5 to 3 times the external surface area of bare tube

Reduced capital cost for new equipment

Reduced retrofitting cost for existing equipment

Space, weight & structural savings

More materials & alloys to select

Reduced maintenance & life cycle cost
