DELLOK Copper Embedded Integral Low Fin Tube Products

1 Piece
MOQ
$10 ≥1 Piece/Pieces
Price
DELLOK Copper Embedded Integral Low Fin Tube Products
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Heat Exchangers/Condensers/Evaporators
Connection Type: Welding/Threaded/Flanged
Fin Length: Customized
Fin Number: Customized
Fin Space: Customized
Fin Type: Louvered/Wavy/Flat
Material: Aluminum/Copper/Stainless Steel
Shape: Round/Square/Rectangular
Size: Customized
Surface Treatment: Anodizing/Polishing/Painting
Thickness: Customized
Warranty Period: 1 Year
Service System: Free Spare Parts, Online Support
High Light:

low fin tubes for heat exchangers

,

integral low fin tubes

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Low Fin Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Product Description

DELLOK Copper Embedded Integral Low Fin Tube Products





About us



Professional heat exchanger factory with 20 years of experience, providing you with one-stop heat transfer solutions to design different heat exchangers according to your purposes (metallurgy, food, petrochemical, pharmaceutical, beverage, wastewater, refrigeration, etc...)

Dellok Young is a professional manufacturer of various heat exchangers integrating R&D, design, production and sales. The heat exchangers produced are mainly used in petrochemical, electric power, papermaking, building heating, mining and other industries, such as air heaters, food industry plant protein powder, starch and other air heater spray drying systems.

The company now has a professional technical innovation team and professional after-sales personnel. The company's production plant covers an area of approximately 18,000 square meters, has multiple professional and advanced CNC and automated production equipment, and has obtained a number of professional certificates and patents.
The company has a professional foreign trade team and has trade cooperation with various regions. Some global partners conducted on-site inspections of the production plants and were very satisfied with the inspection results and established long-term strategic cooperative relationships with our company.

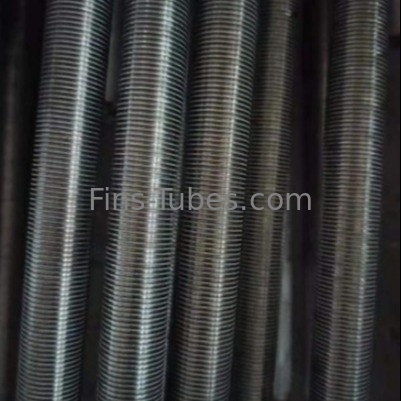

                                            DELLOK Copper Embedded Integral Low Fin Tube Products 0

Low FinTube Product Description:



Integral low fin tube developed as a method of increasing heat transfer performance of fluids while minimizing the size also cost of the Heat Changer The fin tubes can improve the thermal performance of a heat exchanger without change shell size, flow arrangement or re-positioning of tube. The external surface of the tube is increased by the formation of "low fins".The fin is produced by being rolled from the wall of the tube and is therefore integral with the tube itself. Due to fin rolling the wall thickness beneath the finned section is reduced compared with the plain ends. The bore of the fin section is slightly reduced.Most tubular materials can be finned, however hardness of the material usually determines whether the tubes suitable for finning.





Manufacturing Process:



Low fin (integral) tube is an extruded tube consisting of short low fins, the fins are rolled out from the outer wall of the plain tube by rollers, and the tube and fins are in the same piece of tube.



DELLOK Copper Embedded Integral Low Fin Tube Products 1



Low Finned Tube(Aluminum Fin Tubes) Properties:



1.The processing cost is low;

2.The low-finned tube is formed by directly rotating the steel tube to form fins, so there is no need to worry about falling off even if it is bent later.

3.Has excellent durability and anti-vibration performance.

4.Increase the external surface area of the bare tube by 2.5-3 times, improve the efficiency of the heat exchanger, and improve the performance of the existing heat exchanger.

5.The reduction in space and weight is very valuable for offshore production or high altitude distillation columns. Low-fin technology can transform large shell and tube heat exchangers into compact heat exchangers

6.It has a wide range of applications and can strengthen the evaporation, condensation, gaseous heat transfer and liquid heat transfer of the medium on the shell side.



DELLOK Copper Embedded Integral Low Fin Tube Products 2





Integral Low Fin Tube Specifications:



Product Specification
Tube OD 12.7~31.75 (mm) 1/4”~1 1/4”(NPS)
Tube Wall Thk 1.65~3.0 (mm) 0.065”~0.118”
Tube Length ≤18,500 (mm) ≤60.7 ft
Fin Thk 0.3~0.5 (mm) 0.0118"~0.0197”
Fin Height 0.9~1.3 (mm) 0.0354”~0.0512”
Fin Pitch 666~1111 FPM 16~30 FPI
Fin Type Integral Low
Material
Tube Material C.S., S.S., A.S., Copper, Titanium
Applied 415°C
Temperature





FAQ



1. What is the fin efficiency?

Fin efficiency is defined as the ratio of actual heat flow of the fin to that which would be obtained with a fin of constant temperature uniformly equal to the base surface temperature, that is, one with infinite thermal conductivity.



2. What are low finned tubes?

Low Finned tube is a finned tube obtained through plastic cold deformation. The method consists in realizing, from a smooth tube, fins with a particular geometric form without removing material; this plastic deformation causes an increment of heat exchange efficiency, and allows to reduce the heat exchanger size.



3. Where are integral low finned tubes used?

Low finned tubes are a reliable solution for controlling the temperature of gases and liquids, or for evaporating and condensing refrigerants. Thanks to their larger heat transfer surface area, they offer considerable potential to save in terms of materials and fill volumes, especially applicable to air and other gases on the fin-side and a fluid on the tube-side. Applied in heat exchanger for oil refinery and petrochemical plants, condenser and heat exchanger for petrochemical plants, condenser & evaporator for power plants.
