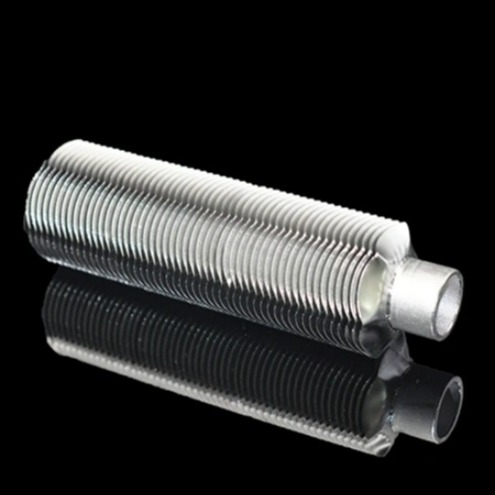

DELLOK 304 Stainless Steel Laser Welding Helical Finned Tube

1 piece
MOQ
$10 ≥1 Piece/Pieces
Price
DELLOK 304 Stainless Steel Laser Welding Helical Finned Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Heat Exchanger
Diameter: 3-25mm
Heat Treatment: Annealing, Normalizing, Etc.
Length: Customized
MOQ: 1 Piece
Material: Stainless Steel
OEM/ODM: Accepted
Package: Wooden Cases/Pallets/Crates
Standard: ASTM, ASME, DIN, JIS, Etc.
Surface Treatment: Polishing
Tolerance: ±0.05mm
Wall Thickness: 0.3-2mm
Welding Method: Laser Welding
Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Laser Weld Fin Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: TBD
Product Description

DELLOK 304 Stainless Steel Laser Welding Helical Finned Tube





About Us



Dellok(YONGHUI Radiating Pipe Manufacturing Co.,Ltd) was established in 2002, which is located in Nanjing, China.We joined HARBIN AIR CONDITIONING CO., LTD. in 2022 and became the most professional industry manufacturer in China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above.

Quality is the theme of eternal pursuit of winner.





Laser Welded Finned Tube Product Description:

100% welding between fin and base tube without using any filler material.

The laser welding process is carried out under the protective atmosphere, and no impurity of the weld seam.

The laser welded Fin Tube are widely applied in fired heaters, Heat Exchanger, boilers, economizers, pre-heaters, coolers, heat pipes, heaters etc.



Laser Welded Finned Tube



Laser Welding Fin Tube Manufacturing Process:

The fin strip is welded continuously and spirally wound onto a polished bare tube. And the tube and fins are bonded together by using advanced laser welding technique.



Laser Welded Finned Tube



Laser Welding Fin Tube(Welded Spiral Pipe) Advantages:

The degree of automation is high. The fully automatic fin laser welding machine can realize one-time welding, and the fin base can be deeply welded with the tube by synchronously winding the fins.

Laser welding has high firmness and high bonding force. Laser welding is a metallurgical combination, and the welding strength is above 600MPa.

The laser welding machine has high accuracy, and the repeatability of welding an 8-meter-long fin tube can reach 0.05mm.



Spiral Welding Pipe



Laser Welded Finned Tube(Stainless Steel Welded Pipes) Properties:

1.a high degree of automation, automatic fins laser welding machine can realize one-time completion of welding, synchronous winding make the fin foot and the pipe depth of weld.

2.laser welding, high firmness, high binding force. Laser welding is metallurgical bonding, welding strength is more than 600MPa.

3.laser welding machine with high accuracy, welding a 8 meter long fin tube with a precision of 0.05mm.

4.the heat transfer coefficient can be improved greatly by laser welding.

5.laser welding finned segment length is less than or equal to 2.5 mm, heat dissipation area than the high frequency welded pipe (distance is more than or equal to 4.5 mm) increased by nearly 50%, greatly reducing the material of the tube, also can decrease the change of the volume of the heat exchanger.



DELLOK 304 Stainless Steel Laser Welding Helical Finned Tube 3



Laser Welded Finned Tube(Stainless Steel Welded Pipe) Applications:

1.Power Plants

Cooling towers or cooling water recooling plants with dry, dry / wet or wet operation

Flue gas cooling and heating in flue gas desulfurisation scrubbers (FGD) and nitrogen removing plants

2.Chemical Industry

Heat exchangers of all kinds for cooling and heating of liquids and gases

Heat exchangers tor nitric acid (HNO3) plants, e.g. for the fertilizer industry

3.Heat Recovery Plants

Flue gas coolers

4.Heating Industry

Primary heat exchangers in gas heating boilers

Secondary heat exchangers for domestic water heating in condensing boilers

5.General Engineering

Heat exchangers for gas cooling of industrial furnaces

Heat exchangers for tank heating

Oil coolers for vacuum plants, ship plants, pumps etc.

Heat exchangers for oil preheating



Fin Tube







Stainless Steel Welded Pipe



Product Categories : Laser Welded Finned Tube
